Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Brake Fluid Irritant Warning .
CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
CAUTION: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
  1. Place the ignition switch in the OFF position.
  2. Remove the battery. Refer to Battery Replacement .
  3. Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  4. Clean the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) area of any dirt or debris.
  5. Disconnect the EBCM electrical connector by lifting the locking lever upward.
  6. Raise and support the vehicle to access the EBCM bolts. Refer to Lifting and Jacking the Vehicle .

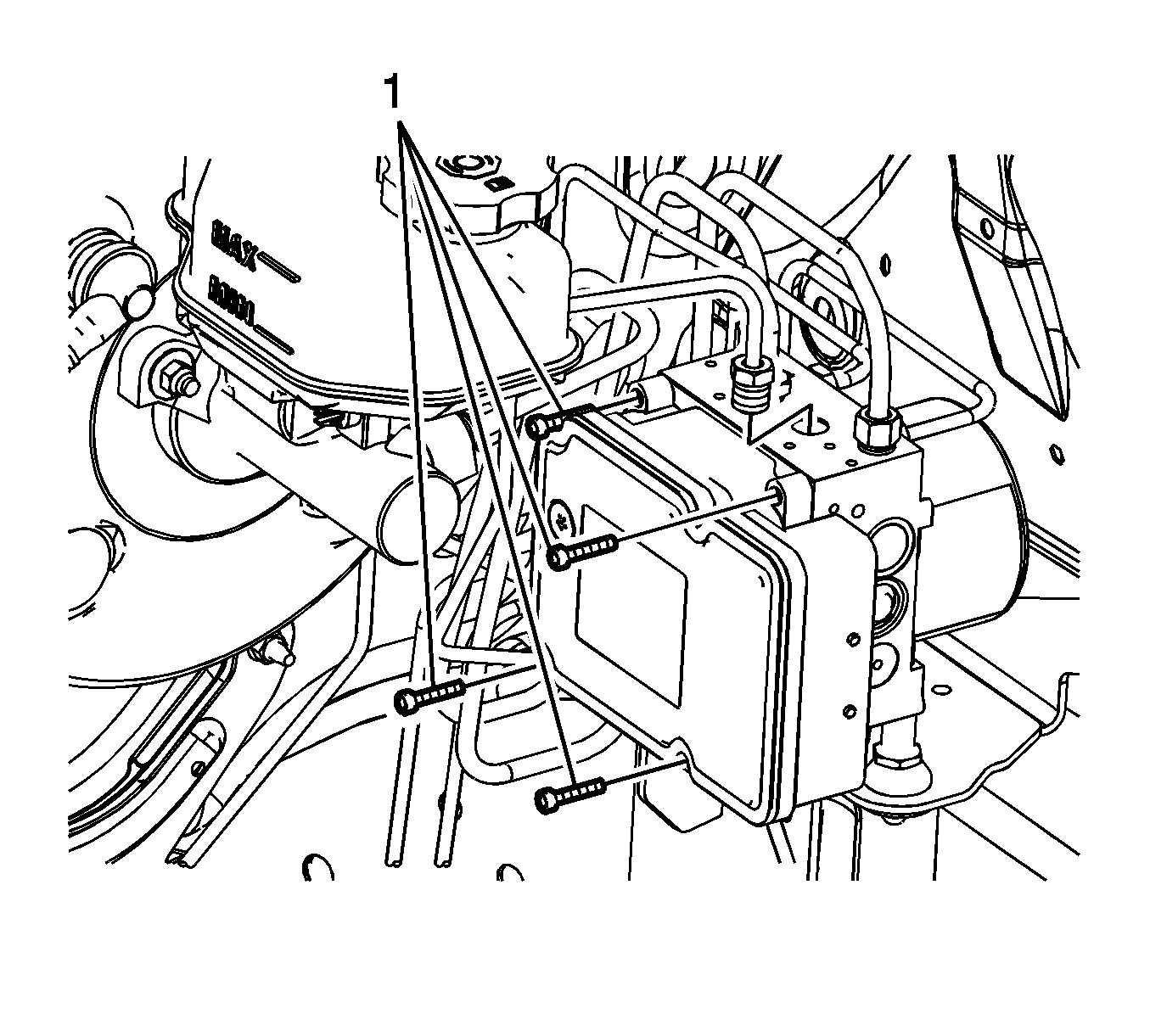

    7. Fig 1: EBCM Bolts
    GM1873922Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 EBCM bolts (1).

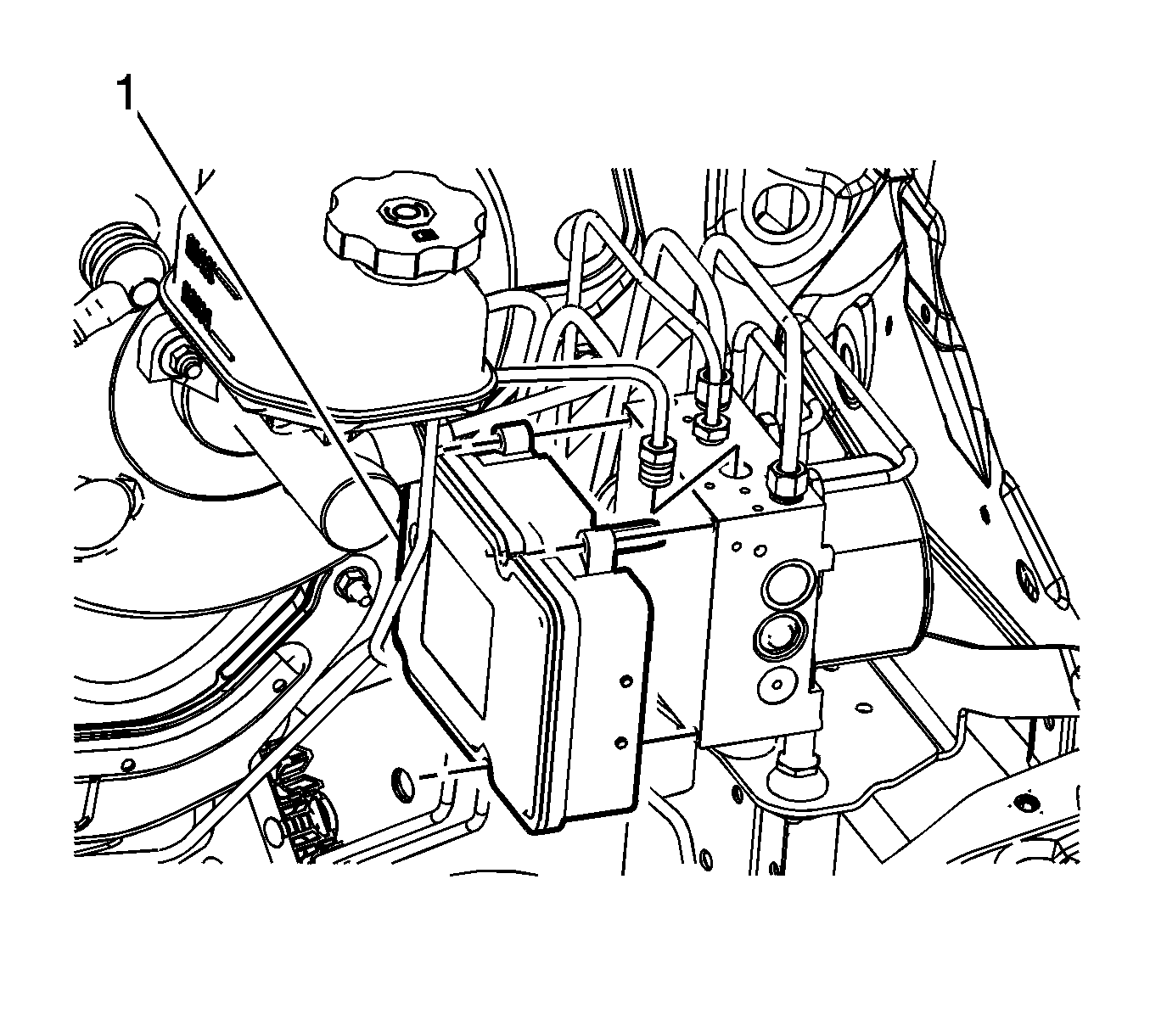

    8. Fig 2: EBCM
    GM1873923Courtesy of GENERAL MOTORS CORP.
  8. Carefully pull the EBCM (1) from the BPMV.

    Do not pry the components apart.

  9. Remove the 12 EBCM seals, if necessary.
