Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

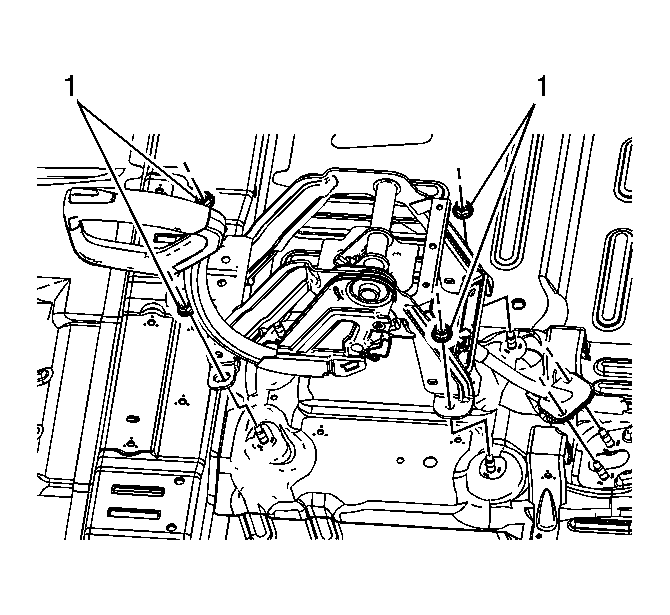

    Fig 1: Park Brake Lever Assembly Nuts
    GM1876520Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake lever assembly to the vehicle while guiding the front park brake cable and equalizer through the floor panel.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the 4 park brake lever assembly nuts (1).

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

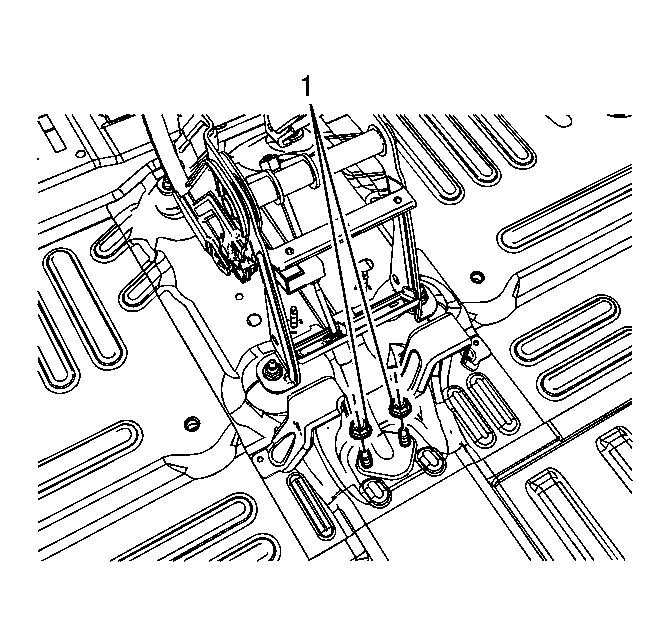

    3. Fig 2: Front Park Brake Cable Guide Nuts
    GM1876519Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 front park brake cable guide nuts (1).

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

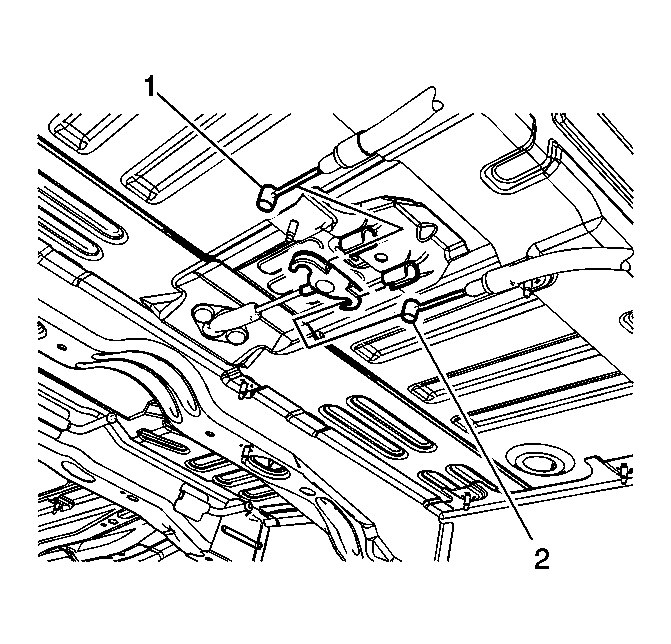

    4. Fig 3: Rear Park Brake Cables
    GM1876518Courtesy of GENERAL MOTORS CORP.
  4. Raise and support the vehicle.
  5. Install the left rear park brake cable (1) and the right rear park brake cable (2) to the equalizer.
  6. Adjust the park brake. Refer to Parking Brake Adjustment .
  7. Install the front floor console. Refer to Front Floor Console Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
