Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the park brake lever in the released position.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  3. Remove the front floor console. Refer to Front Floor Console Replacement .

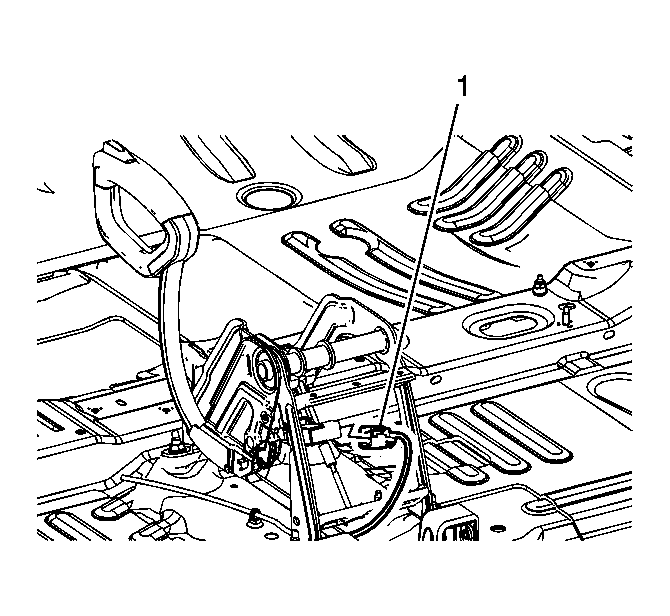

    4. Fig 1: Park Brake Warning Lamp Switch Electrical Connector
    GM1876516Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the park brake warning lamp switch electrical connector (1).

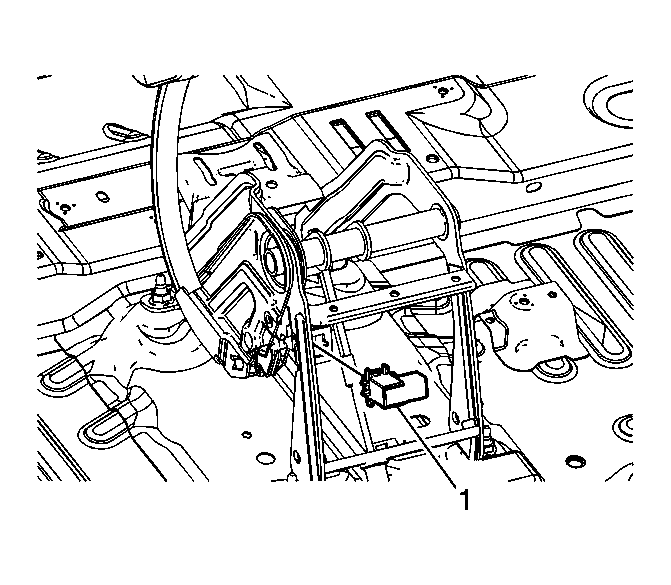

    5. Fig 2: Park Brake Warning Lamp Switch
    GM1876521Courtesy of GENERAL MOTORS CORP.
  5. Remove the park brake warning lamp switch (1) by compressing the locking tabs.
