Parking Brake Front Cable Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

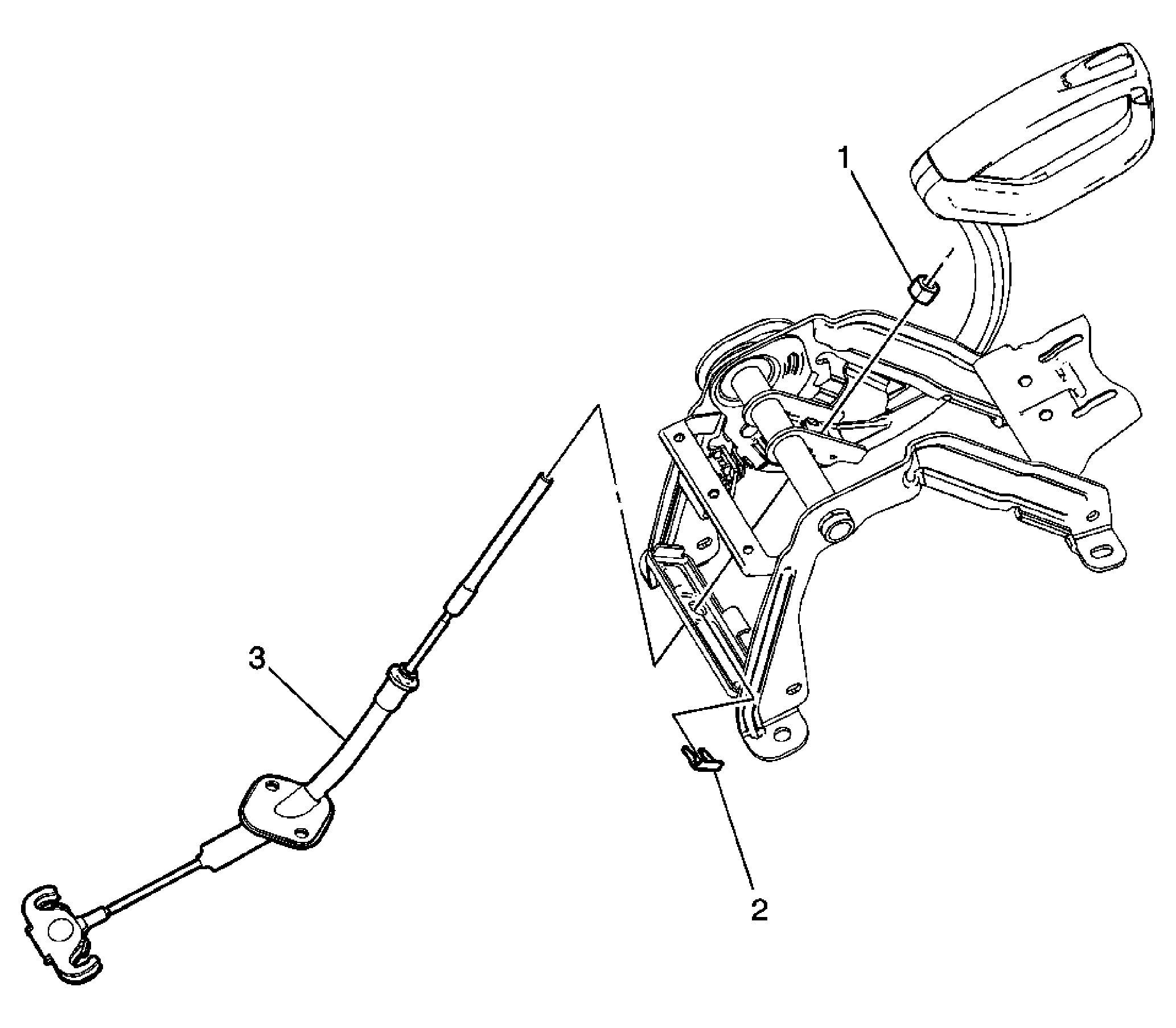

Fig 1: Parking Brake Front Cable
GM1876528Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the park brake lever assembly. Refer to Parking Brake Lever Replacement .
1 Park Brake Cable Adjuster Nut
Procedure:
Using ONLY hand tools, remove the park brake cable adjuster nut.
2 Front Park Brake Cable Clip
3 Front Park Brake Cable
Procedure:
After the installation is complete, adjust the park brake. Refer to Parking Brake Adjustment .
