Transaxle Brace: Installation
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

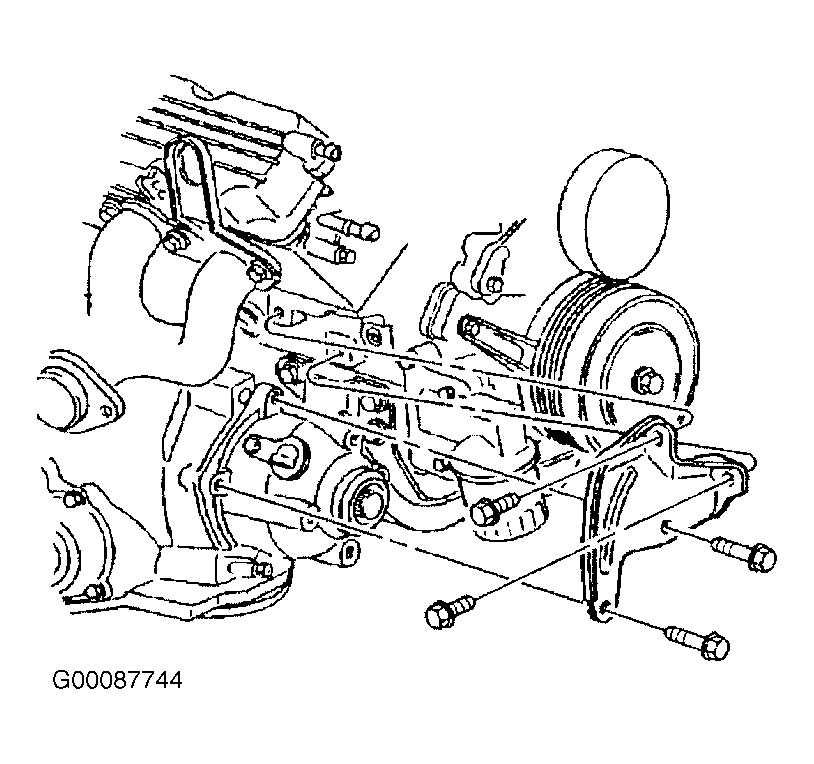

Install the transaxle brace. Hand start the bolts to the engine and to the transaxle. Install the transaxle brace bolts to the transaxle. See Figure . Tighten the transaxle brace bolts to the transaxle to specification. See TORQUE SPECIFICATIONS . Install the transaxle brace bolts to the engine. Tighten the transaxle brace bolts to the engine to specification. Install the right front tire and wheel. Lower the vehicle. Connect the negative battery cable.
