Fluid Filler Tube: Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the indicator.
Raise and support the vehicle.
Disconnect the 3-way catalytic converter pipe.
Remove the fluid filler tube bracket bolt from the fluid filler tube bracket. See Fig 1 .
Remove the fluid filler tube.

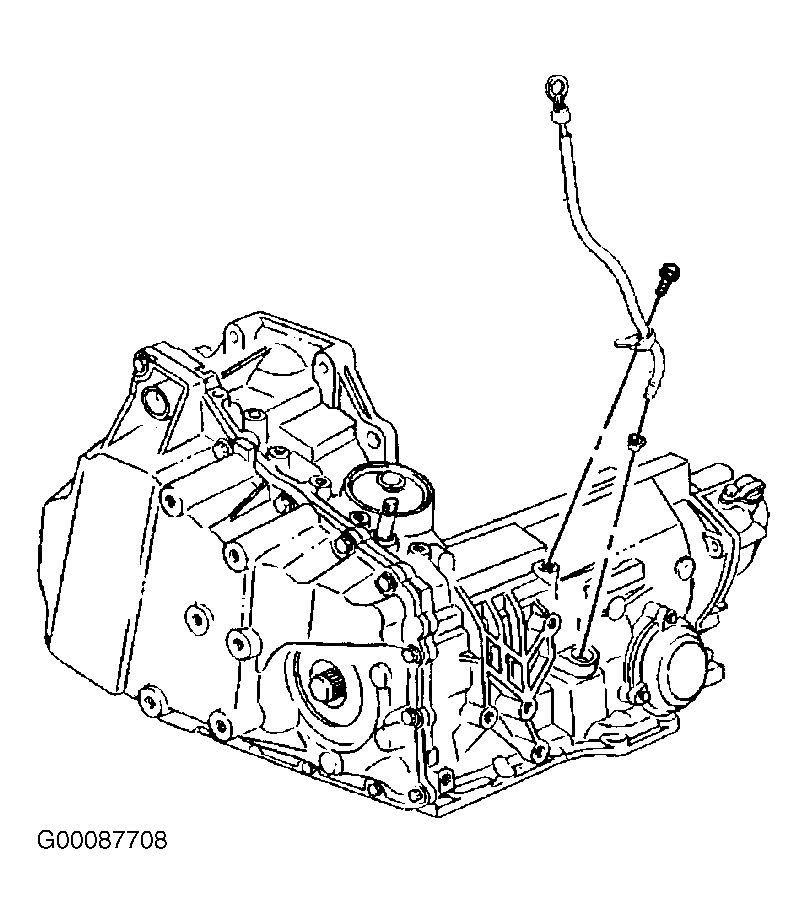

Fig 1: Removing & Installing Fluid Filler Tube

Courtesy of GENERAL MOTORS CORP.
