Radiator Surge Tank Outlet Hose/Pipe Replacement (LAT)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

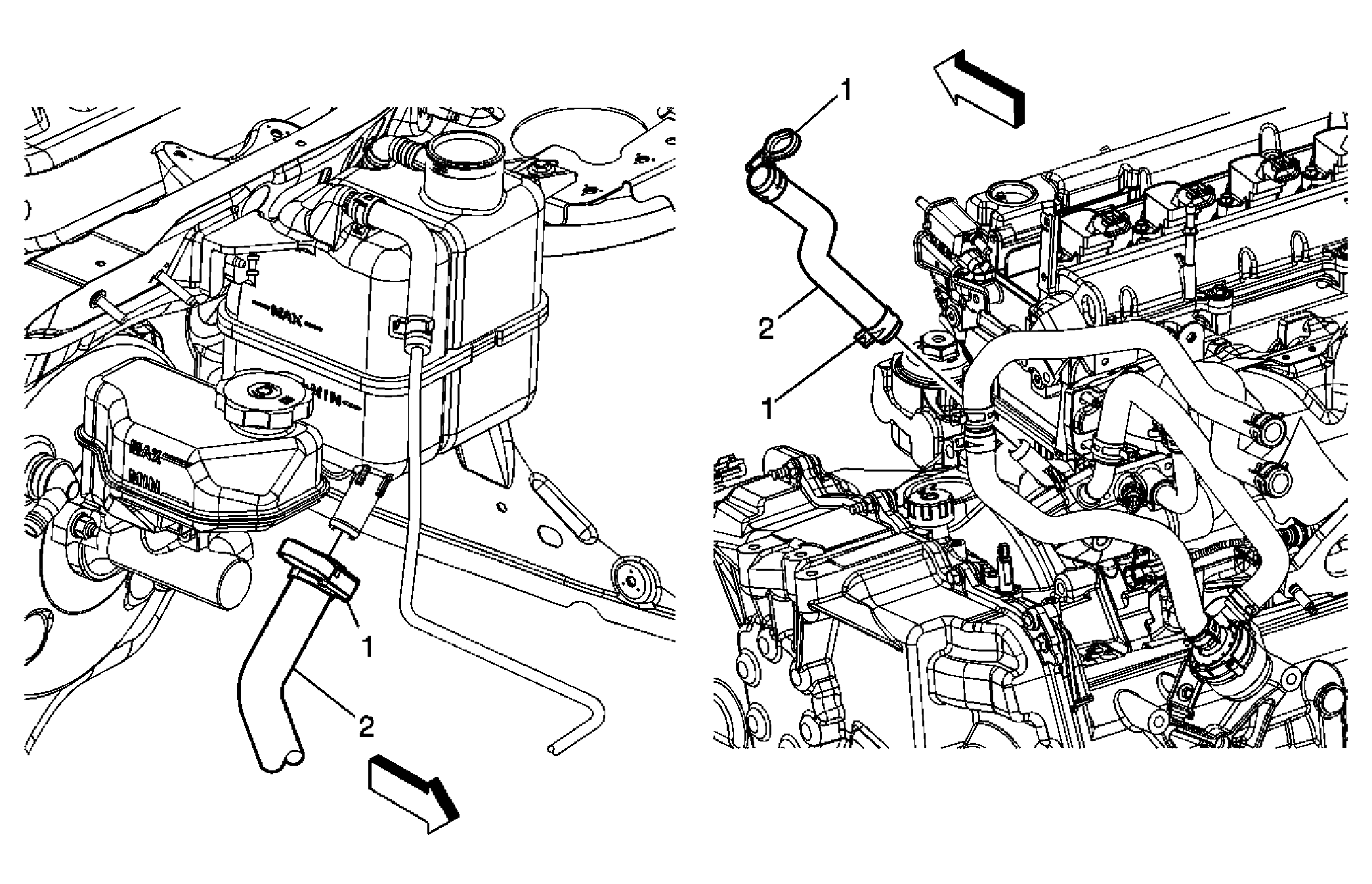

Fig 1: Radiator Surge Tank Outlet Hose/Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . Remove the engine cover. Remve the bolt holding the engine wiring harness at the rear of the cylindar head and position out of the way.
1	Radiator Surge Tank Outlet Hose/Pipe Clamp (Qty: 2)
2	Radiator Surge Tank Outlet Hose/Pipe

Callout

Component Name

Preliminary Procedures

Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
Remove the engine cover.
Remve the bolt holding the engine wiring harness at the rear of the cylindar head and position out of the way.

Radiator Surge Tank Outlet Hose/Pipe Clamp (Qty: 2)

Radiator Surge Tank Outlet Hose/Pipe
