Radiator Surge Tank Inlet Hose/Pipe Replacement (LAT)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

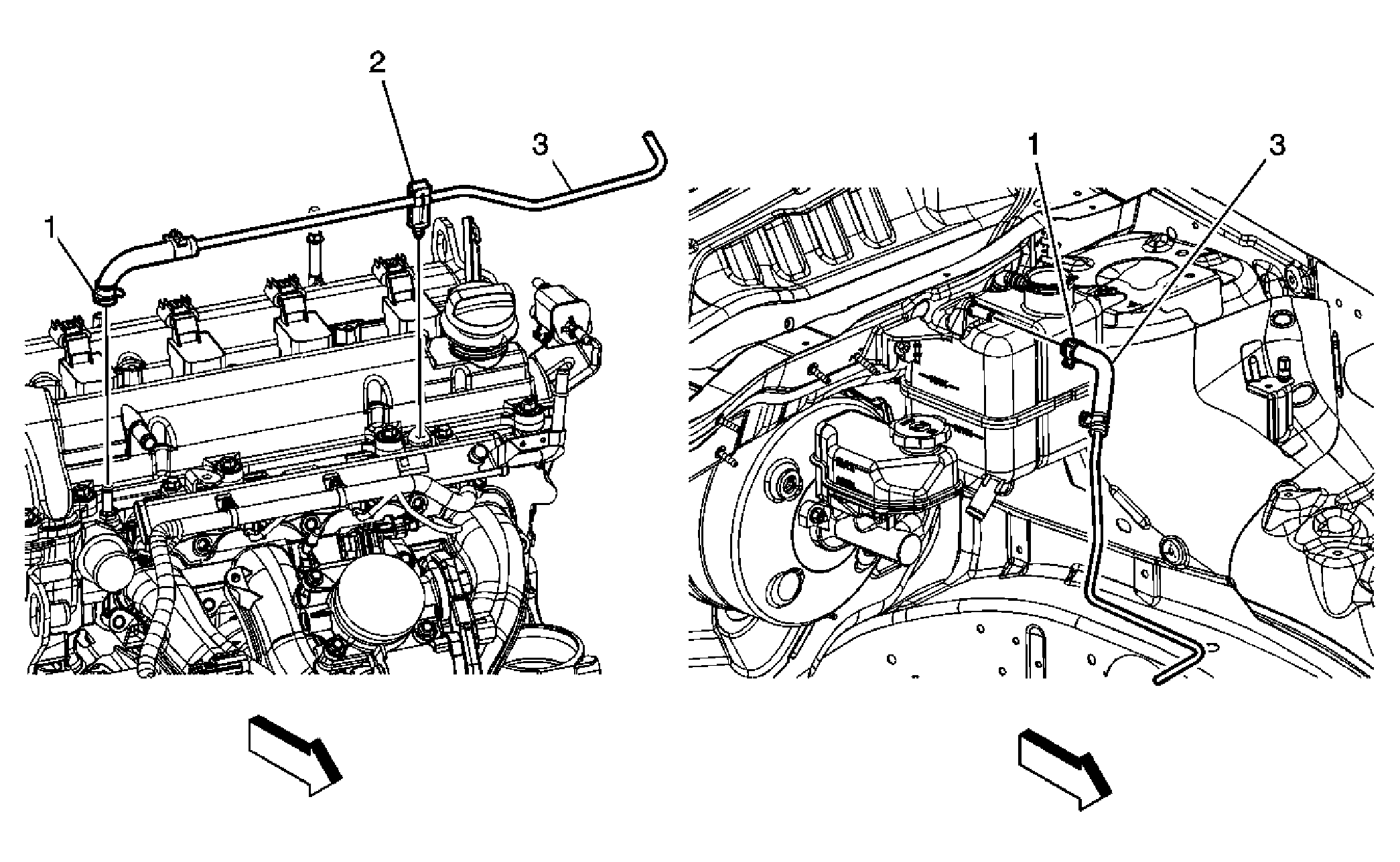

Fig 1: Radiator Surge Tank Inlet Hose/Pipe
GM1872471Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5)  or Cooling System Draining and Filling (GE 47716 Fill With HP5) .
  2. Remove the engine cover.
1 Radiator surge tank inlet hose/pipe clamps (Qty 2).
2 Radiator surge tank inlet hose/pipe clip.
3 Radiator surge tank inlet hose/pipe.
