Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

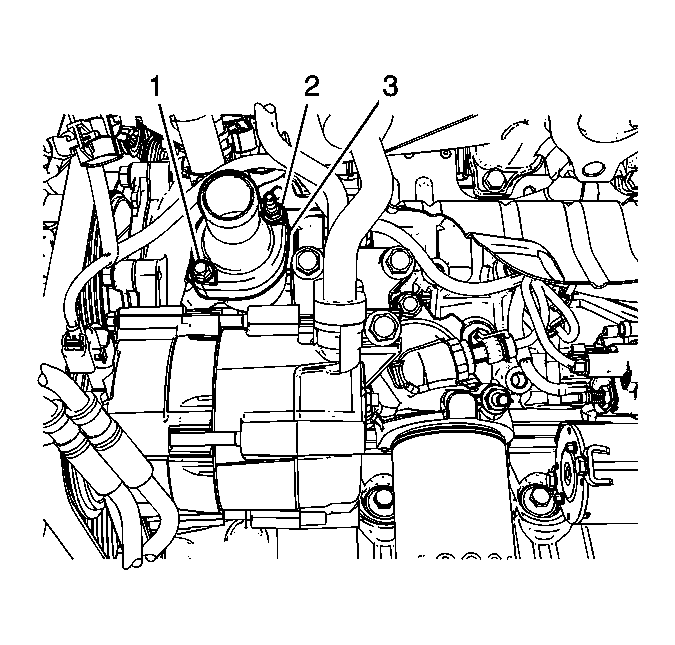

    Fig 1: Thermostat Housing Bolt And Nut
    GM1876480Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the thermostat with housing (3).
    1. Install a new gasket.
    2. Position the thermostat with the housing.
    3. Apply thread sealant PST 565® to the bolt threads.
    4. Install the housing bolt (2) and nut (1) and tighten to 10 N.m (89 lb in).

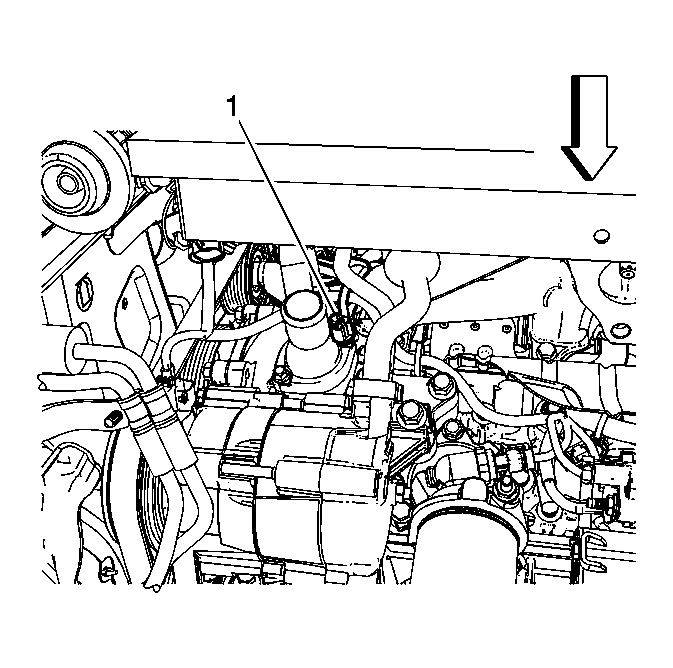

    2. Fig 2: Thermostat Housing Stud
    GM1876468Courtesy of GENERAL MOTORS CORP.
  2. Install the wire harness clamp to the thermostat housing stud (1).
  3. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LZ4) .
