Engine Coolant Thermostat Housing Replacement (LE5)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

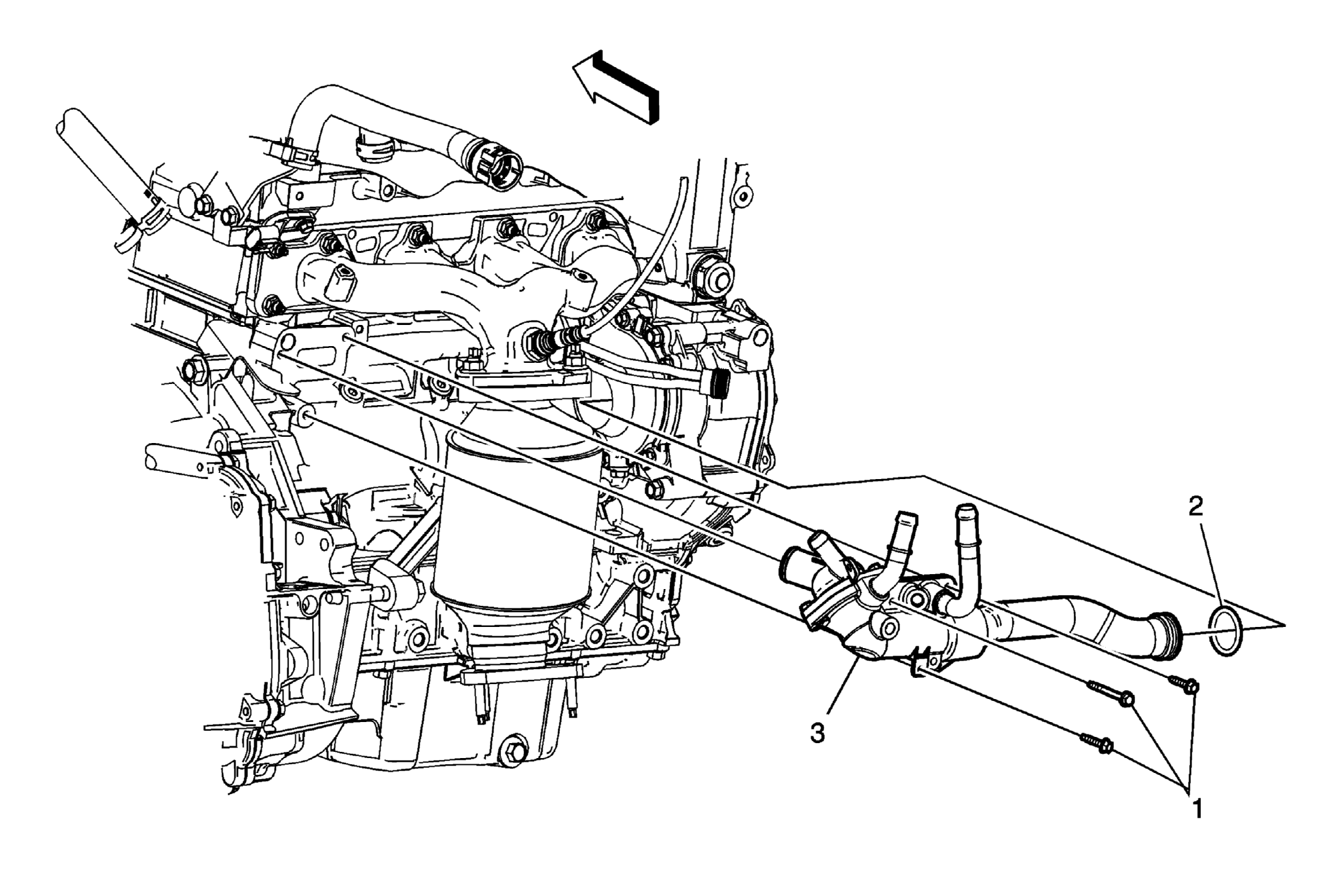

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) Tip: Loosen the drain bolt at the bottom of the water pump and drain the coolant from the engine block. |
|
| 1 | Bolt (Qty: 3) Tighten: 10 N.m (7 lb ft) |
| 2 | Seal |
| 3 | Thermostat Housing |
