Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Thermostat Housing Cover Bolts & Cover
    GM1713064Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW thermostat cover O-ring seal into the recess groove.
  2. Install the thermostat, if necessary.
  3. CAUTION: Refer to Fastener Caution .
  4. Install the thermostat cover bolts, if necessary and tighten to 10 N.m (89 lb in).
  5. Install a NEW thermostat housing to engine gasket onto the thermostat housing.
  6. Load the thermostat housing assembly into position.
  7. Fig 2: Identifying Thermostat Housing Bolts
    GM1713067Courtesy of GENERAL MOTORS CORP.
    NOTE: The water feed pipe seals can be lightly lubricated with coolant to aid during installation.
  8. Install NEW O-ring seals onto the water feed pipe.
  9. NOTE: Lubricate the O-rings with coolant ONLY.
  10. Install the water feed pipe into the thermostat housing aligning locator tab.
  11. Align the water pipe to water pump.
  12. Seat the water feed O-ring seal by pushing inward toward the water pump. Take care not to tear or damage the O-ring.
  13. Position the thermostat housing against the engine.
  14. Install the thermostat housing bolts and tighten to 10 N.m (89 lb in).
  15. Fig 3: Locating ECT Sensor
    GM1812215Courtesy of GENERAL MOTORS CORP.
  16. If reinstalling the old sensor, coat the threads with sealant. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  17. Install the ECT sensor, if necessary and tighten to 20 N.m (15 lb ft).
  18. Lower the vehicle.
  19. Fig 4: View Of Auxiliary Heater Water Pump & Heater Hoses
    GM1812209Courtesy of GENERAL MOTORS CORP.
  20. Install the heater inlet hose (3) to the thermostat housing.
  21. Position the heater inlet hose clamp at the thermostat housing.
  22. Install the auxiliary heater water pump hose (2) to the thermostat housing.
  23. Position the auxiliary heater water pump hose clamp at the thermostat housing.
  24. Install the auxiliary heater water pump hose clip (1) to the heater outlet hose.
  25. Fig 5: Identifying Exhaust Manifold Heat Shield
    GM1631387Courtesy of GENERAL MOTORS CORP.
  26. Install the exhaust heat shield.
  27. Install the exhaust heat shield studs (2) and tighten to 22 N.m (16 lb ft).
  28. Fig 6: View Of Radiator Outlet Hose
    GM1812217Courtesy of GENERAL MOTORS CORP.
  29. Install the radiator outlet hose to the thermostat cover.
  30. Position the radiator outlet hose clamp at the thermostat cover.
  31. Fig 7: Identifying Engine Wiring Harness Electrical Connector
    GM1812206Courtesy of GENERAL MOTORS CORP.
  32. Connect the engine wiring harness electrical connector (1) to the ECT sensor.
  33. Install the HO2S electrical connector rosebud clip to the thermostat housing.
  34. Install the battery tray.

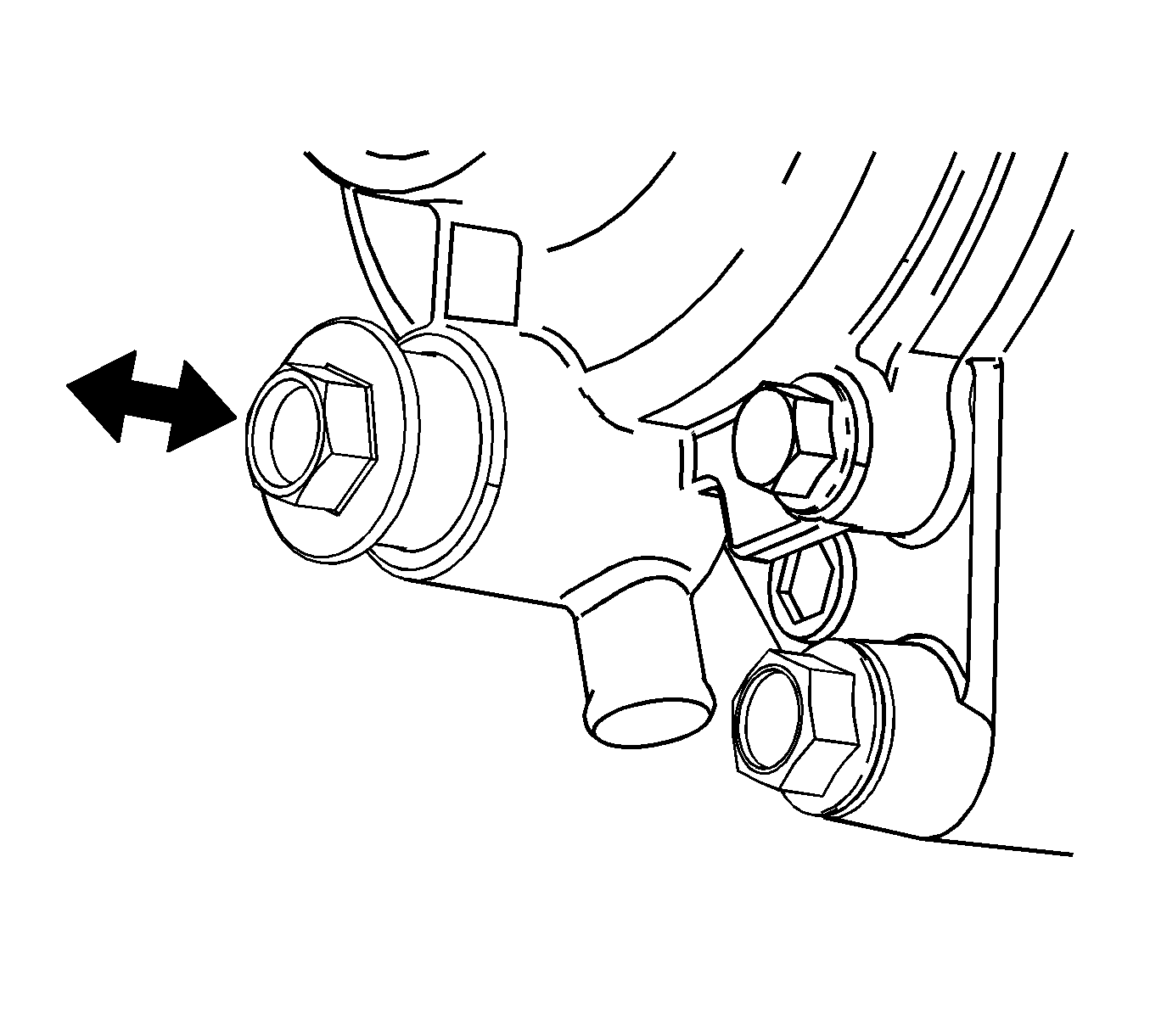

  35. Fig 8: Opening Water Pump Drain Plug (2.2L)
    GM1212666Courtesy of GENERAL MOTORS CORP.
  36. Verify the drain valves at the radiator and water pump are closed.
  37. Lower the vehicle.
  38. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5)  or Cooling System Draining and Filling (Static Fill Without HP5)  or Cooling System Draining and Filling (GE 47716 Fill With HP5)  or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
