Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

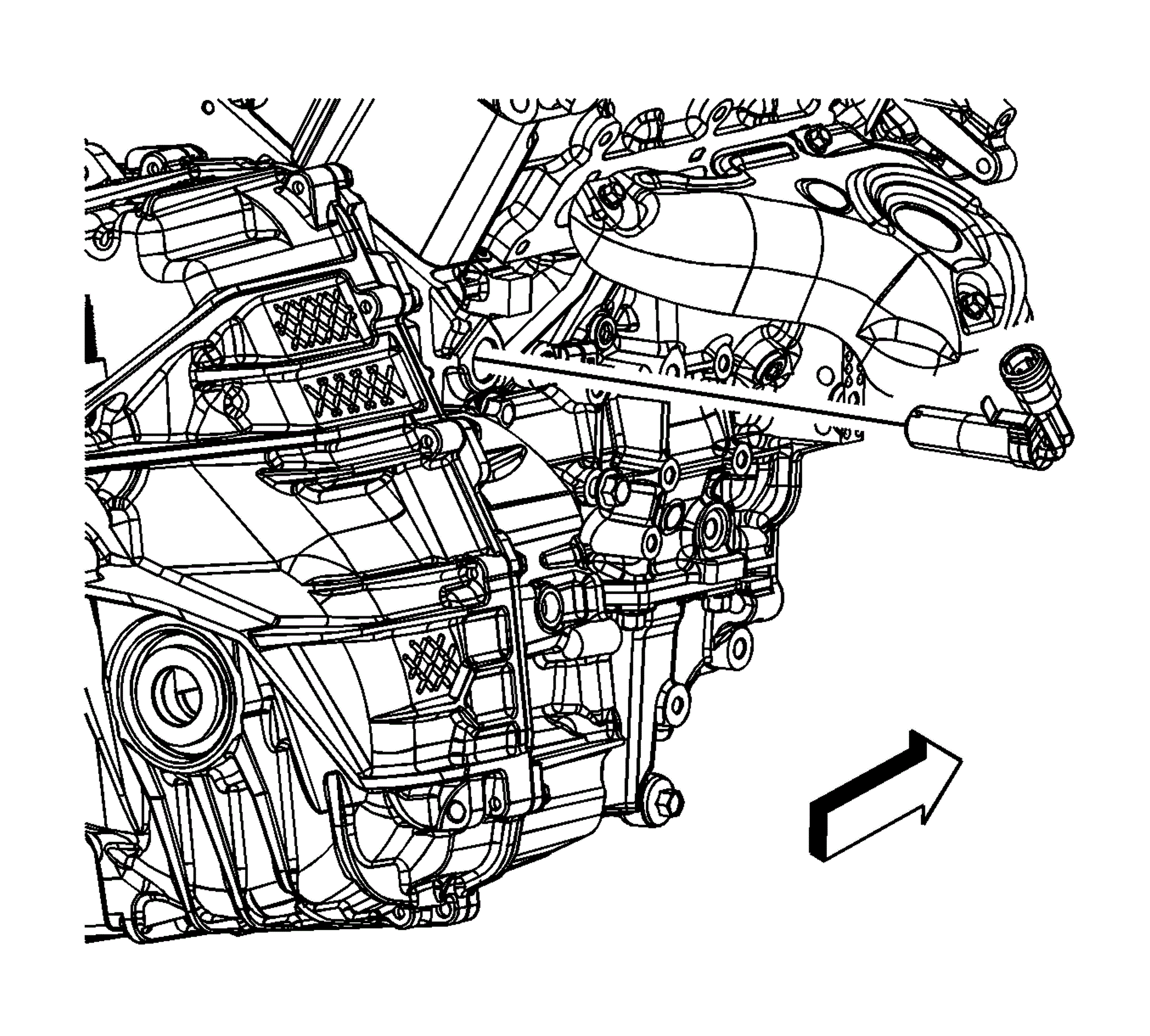

    Fig 1: Identifying Engine Coolant Heater
    GM1837206Courtesy of GENERAL MOTORS CORP.
  1. Install the coolant heater.
  2. Connect the coolant heater cord to the coolant heater.
  3. Install the rear transmission Mount. Refer to Transmission Rear Mount Replacement (FWD) or Transmission Rear Mount Replacement (AWD)
  4. Lower the vehicle.
