Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

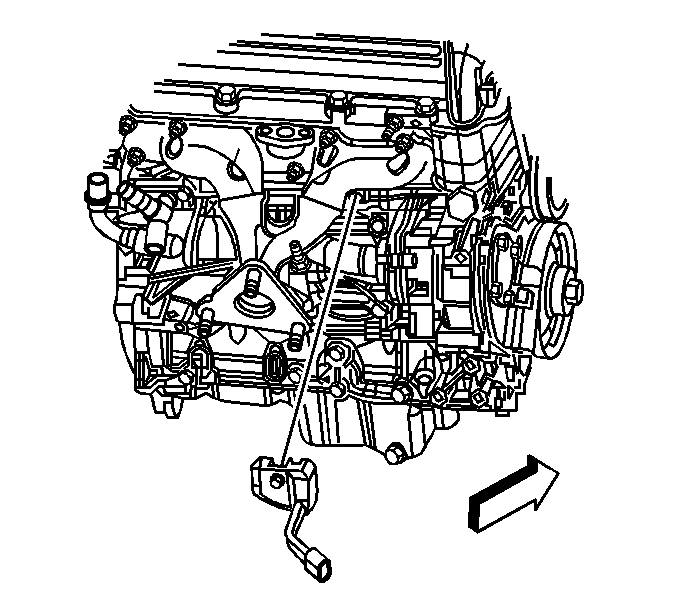

Fig 1: View Of Coolant Heater

Courtesy of GENERAL MOTORS CORP.

Install the coolant heater.

CAUTION: Refer to Fastener Caution .

Install the coolant heater bolt and tighten to 10 N.m (89 lb in).

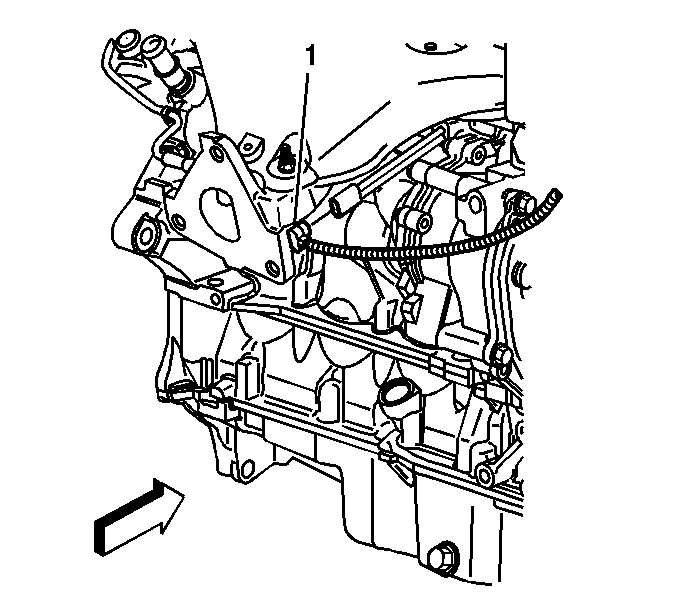

Fig 2: View Of Coolant Heater Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the coolant heater cord (1).
