Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the park brake cable bolt from the trailing arm and from the frame. Refer to Parking Brake Rear Cable Replacement .
  4. Remove the trailing arm bracket to body bolts. Refer to Trailing Arm Bracket Replacement .

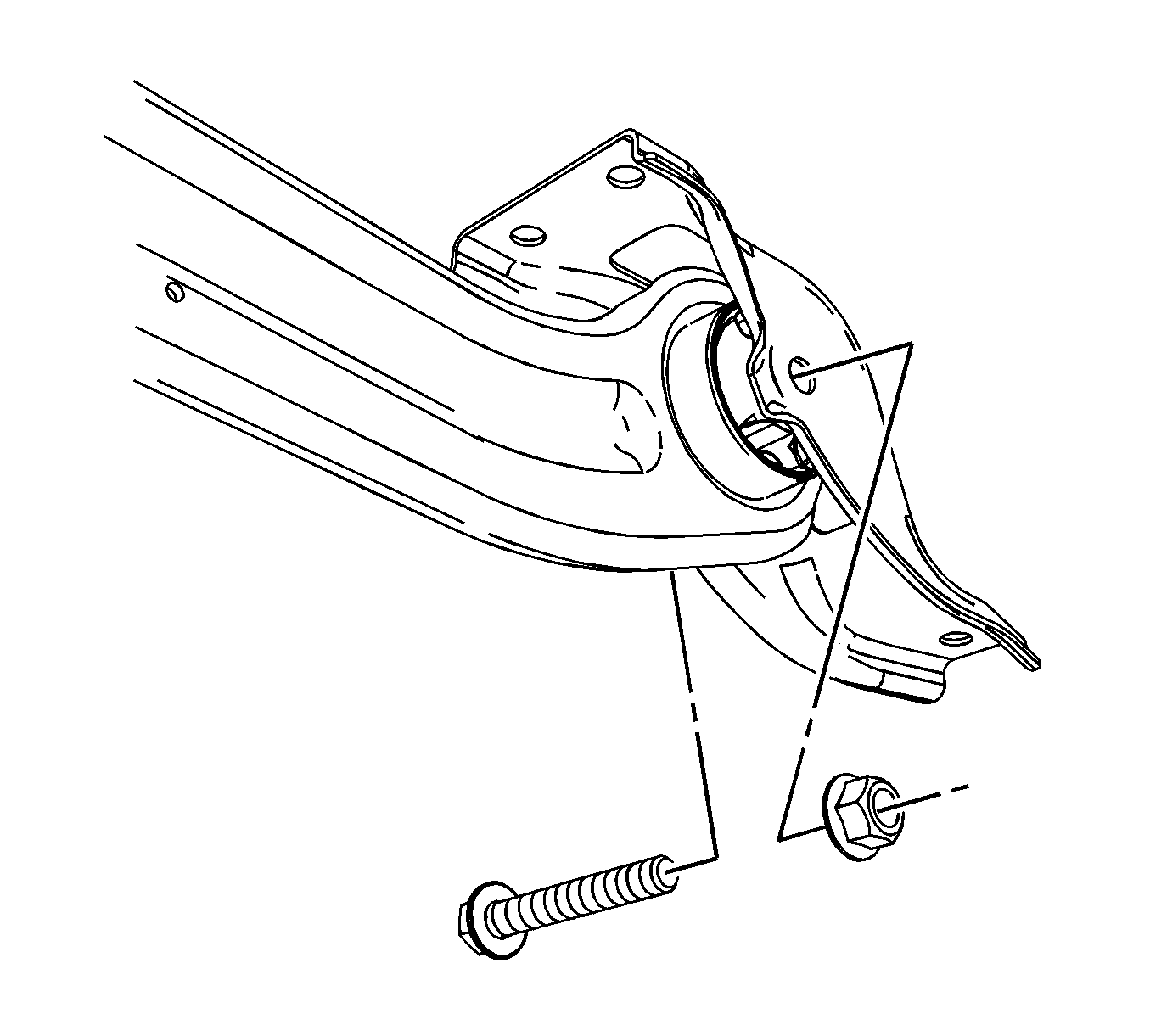

    5. Fig 1: View Of Trailing Arm Bushing-To-Bracket Nut & Bolt
    GM1828605Courtesy of GENERAL MOTORS CORP.
  5. Remove the trailing arm bushing to bracket nut and bolt.

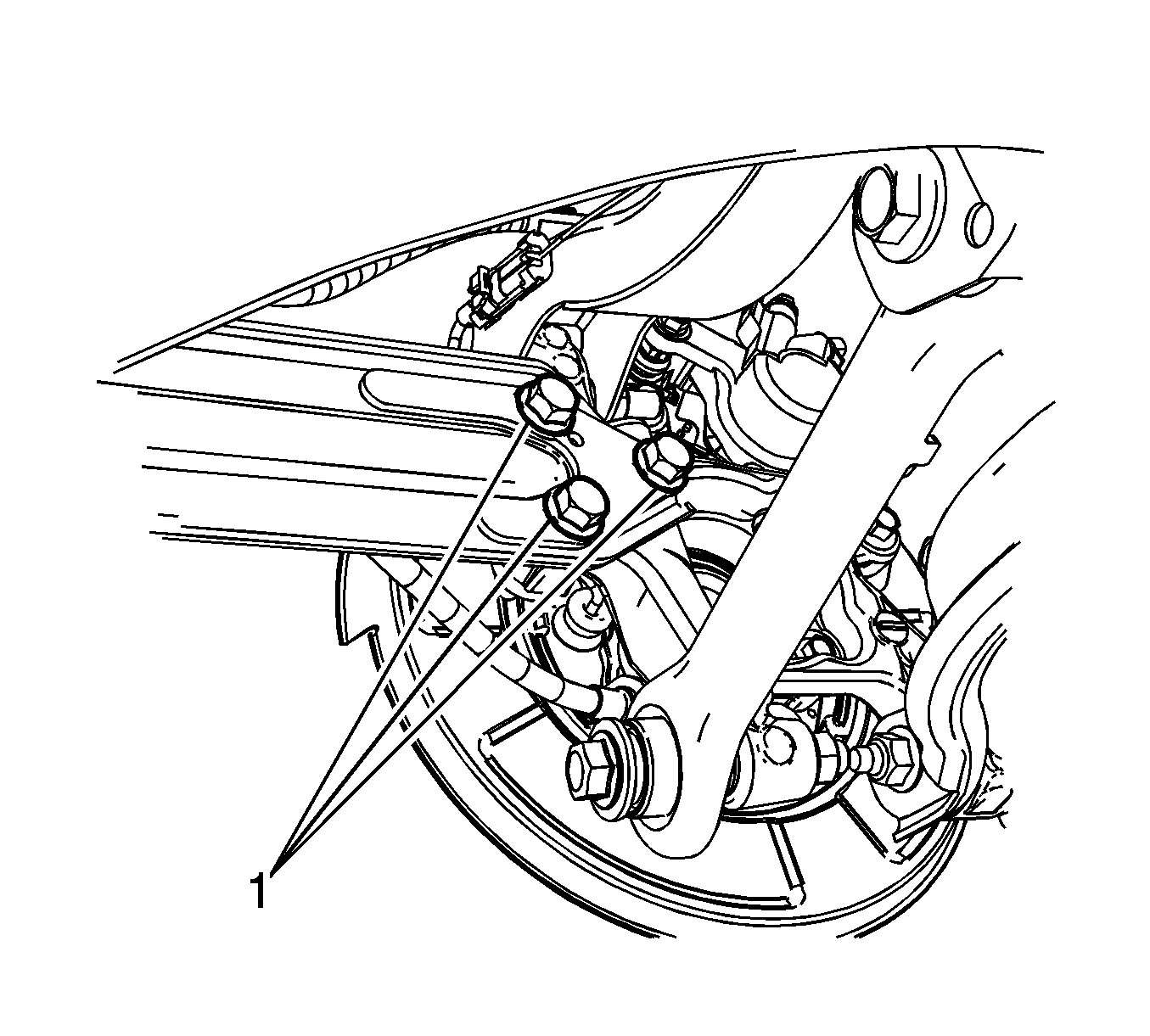

    6. Fig 2: Identifying Trailing Arm To Knuckle Bolts
    GM1877479Courtesy of GENERAL MOTORS CORP.
  6. Remove the trailing arm to knuckle bolts (1).
  7. Remove the trailing arm.
