Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trailing arm bracket to the trailing arm.
    2. Fig 1: View Of Trailing Arm Bushing-To-Bracket Nut & Bolt
    GM1828605Courtesy of GENERAL MOTORS CORP.
  2. Loosely install the trailing arm bushing to bracket nut and bolt.

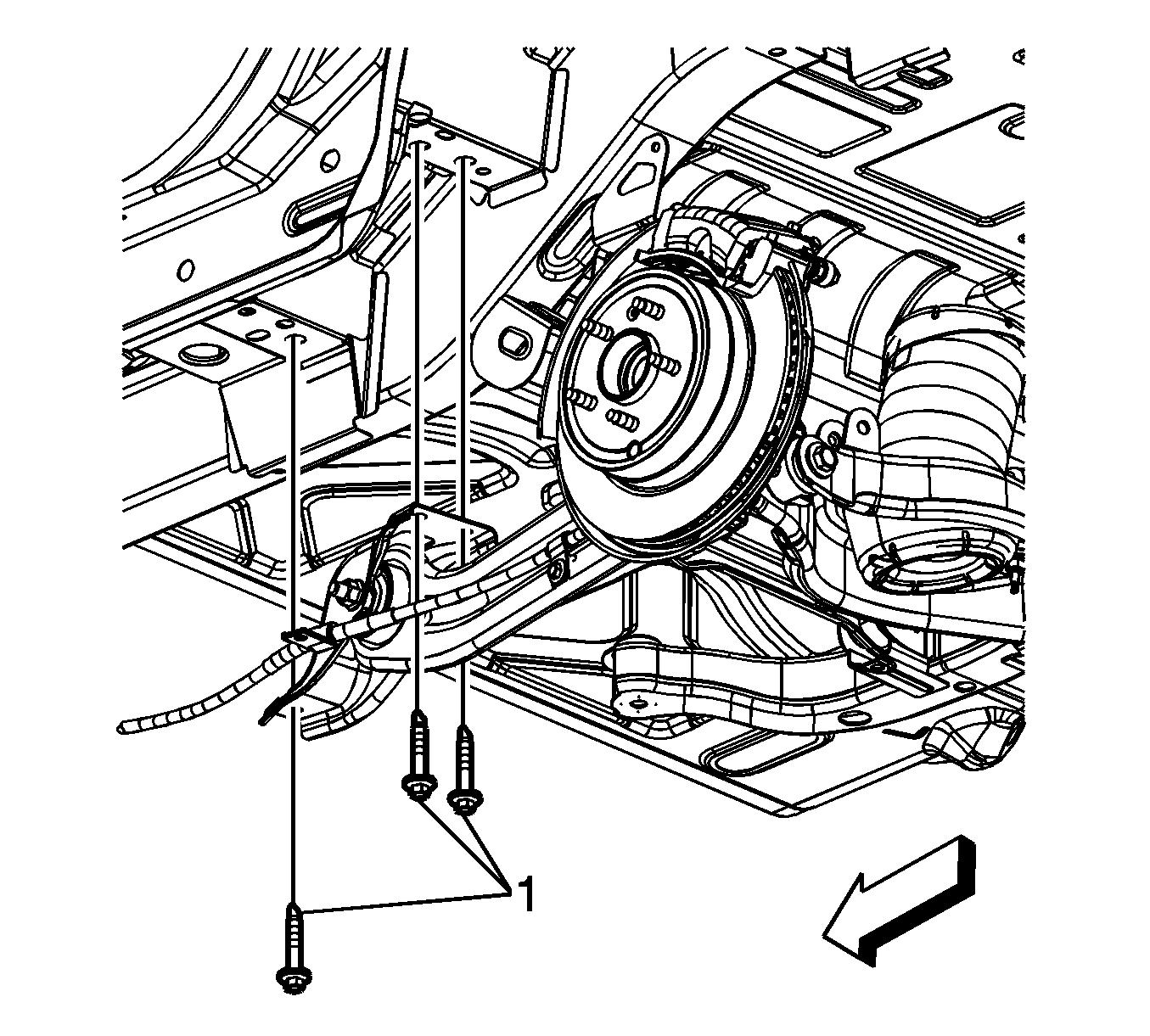

    3. Fig 2: Identifying Trailing Arm Bracket To Body Bolts
    GM1877440Courtesy of GENERAL MOTORS CORP.
  3. Push upward on the trailing arm bracket and loosely install the front bolt (1).
    4. CAUTION: Refer to Fastener Caution .
  4. Use a drift to align the remaining trailing arm bracket bolts (1). Tighten the bolts to 110 N.m (81 lb ft).
  5. Tighten the trailing arm bushing to bracket nut and bolt to 160 N.m (118 lb ft).
  6. Install the park brake cable on the trailing arm and on the frame. Refer to Parking Brake Rear Cable Replacement .
  7. Remove the support and lower the vehicle.
