Stabilizer Shaft Insulator Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

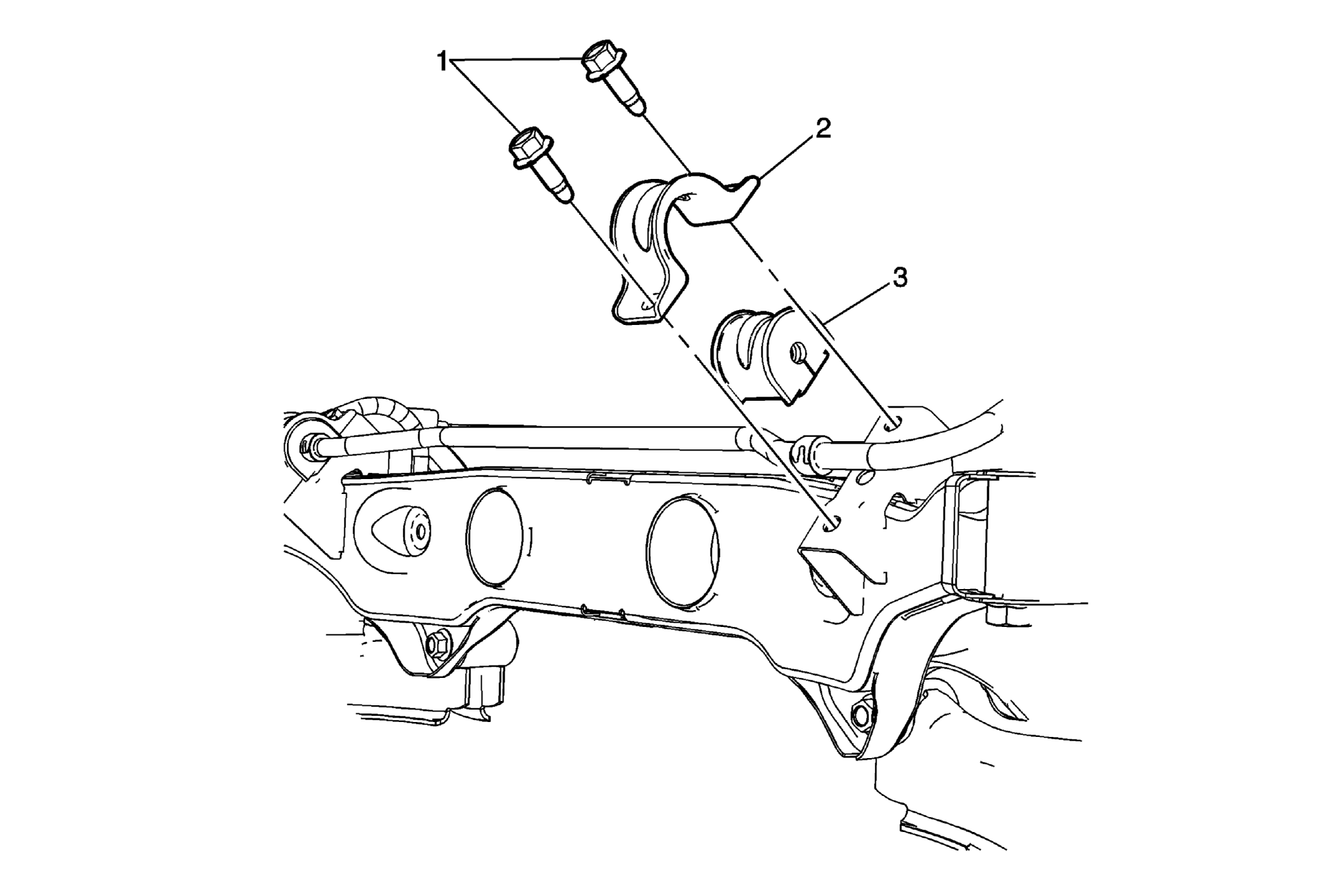

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Stabilizer Shaft Insulator Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Procedure: Lower the rear suspension support. Refer to Support Replacement . Tip: Lower the rear suspension support enough to remove the stabilizer shaft clamp bolt. Tighten: 70 N.m (52 lb ft) |
| 2 | Stabilizer Shaft Insulator Clamp (Qty: 2) |
| 3 | Stabilizer Shaft Insulator (Qty: 2) |
