Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the lower control arm assembly. Refer to Rear Axle Lower Control Arm Replacement .

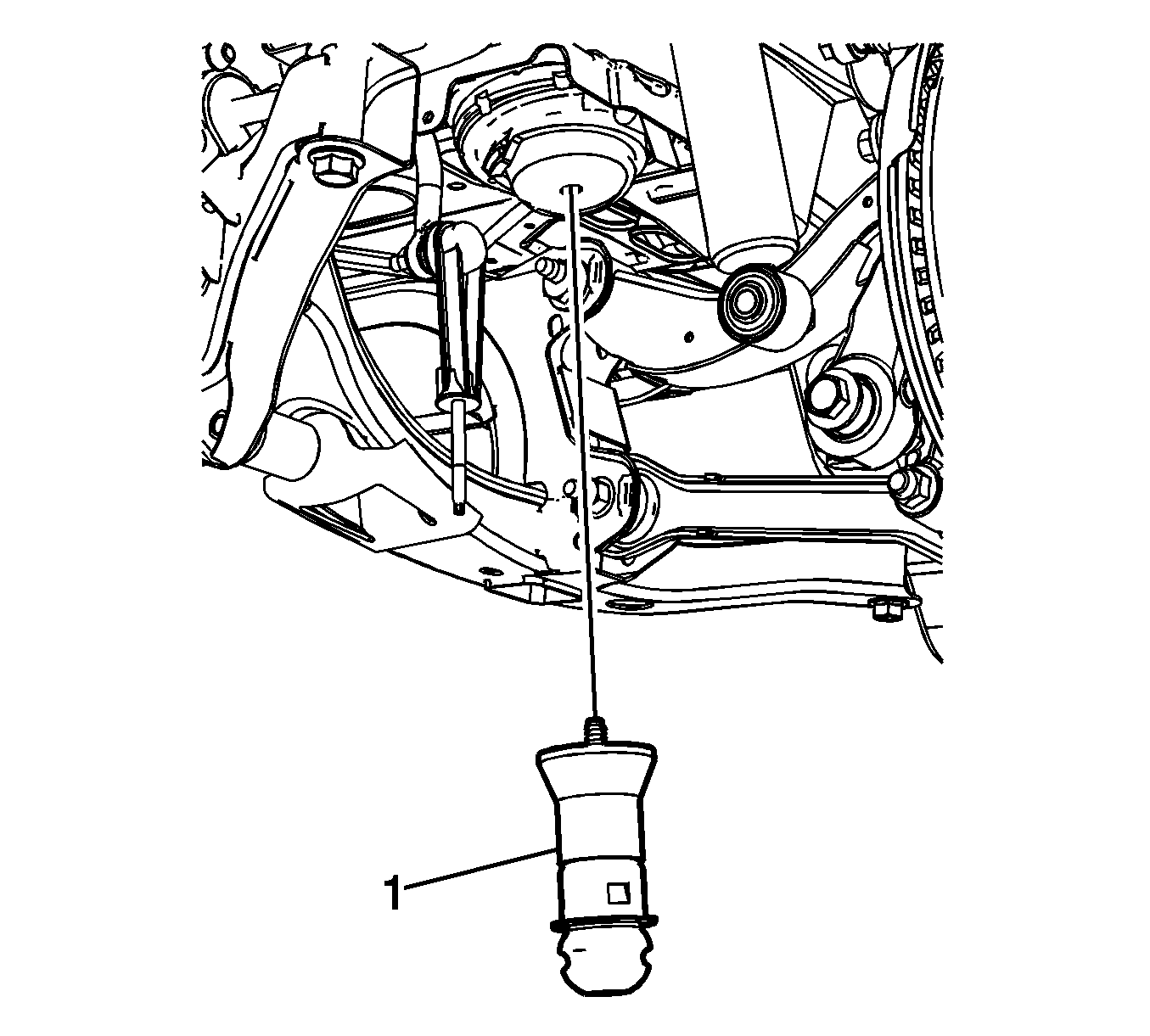

    4. Fig 1: Identifying Suspension Jounce Bumper
    GM2029806Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear suspension jounce bumper (1).
