Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Disconnect the antilock brake system (ABS) brake wiring harness from the upper control arm.
  4. Remove the rear brake hose routing nut and bolt.

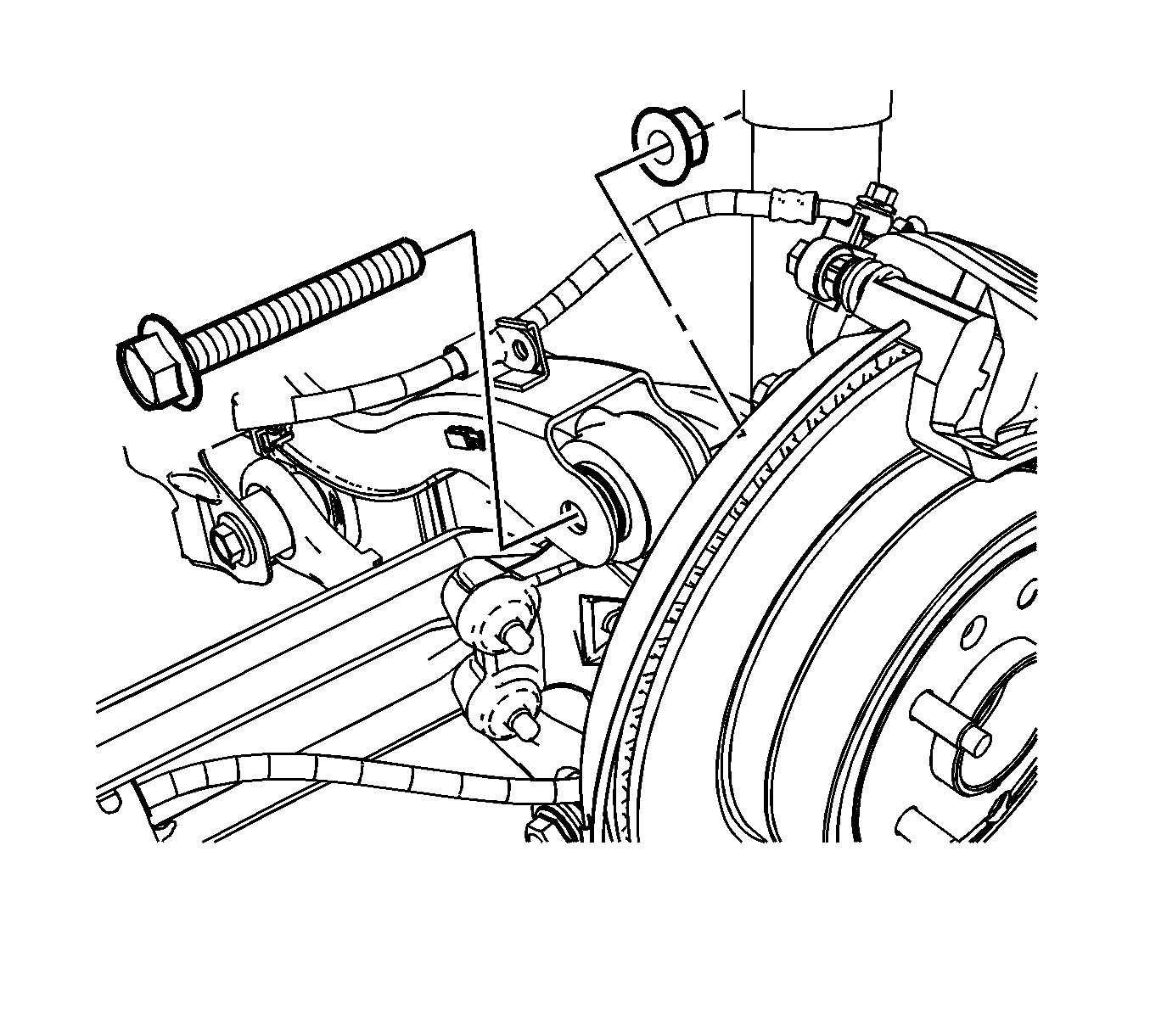

    5. Fig 1: Identifying Upper Control Arm-To-Knuckle Bolt & Nut
    GM1828326Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper control arm to knuckle nut and bolt.

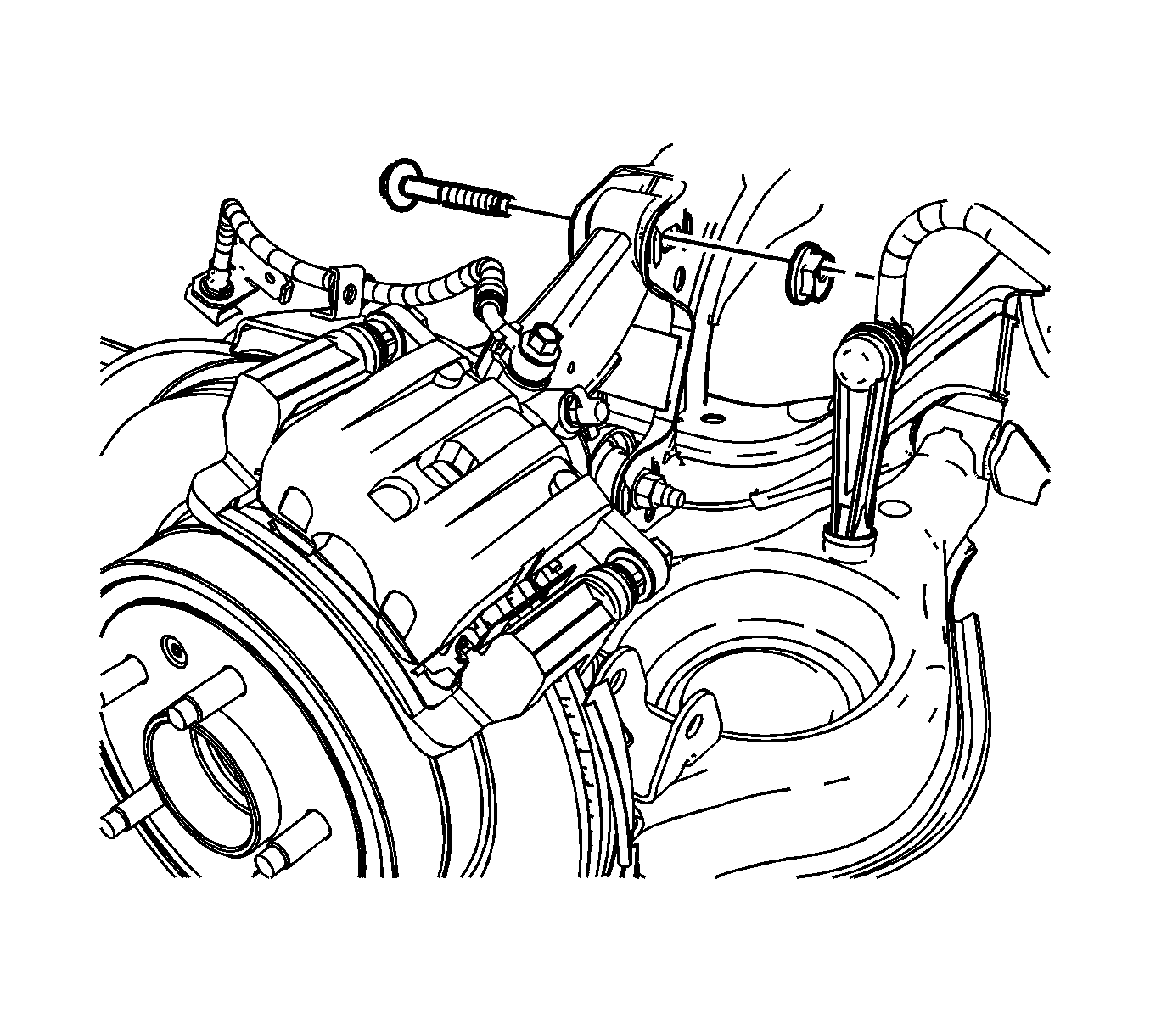

    6. Fig 2: Identifying Upper Control-To-Support Cam Nut & Bolt
    GM1828354Courtesy of GENERAL MOTORS CORP.
  6. Remove the upper control to support cam nut and bolt.
  7. Remove the upper control arm.
