Adjust Link Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

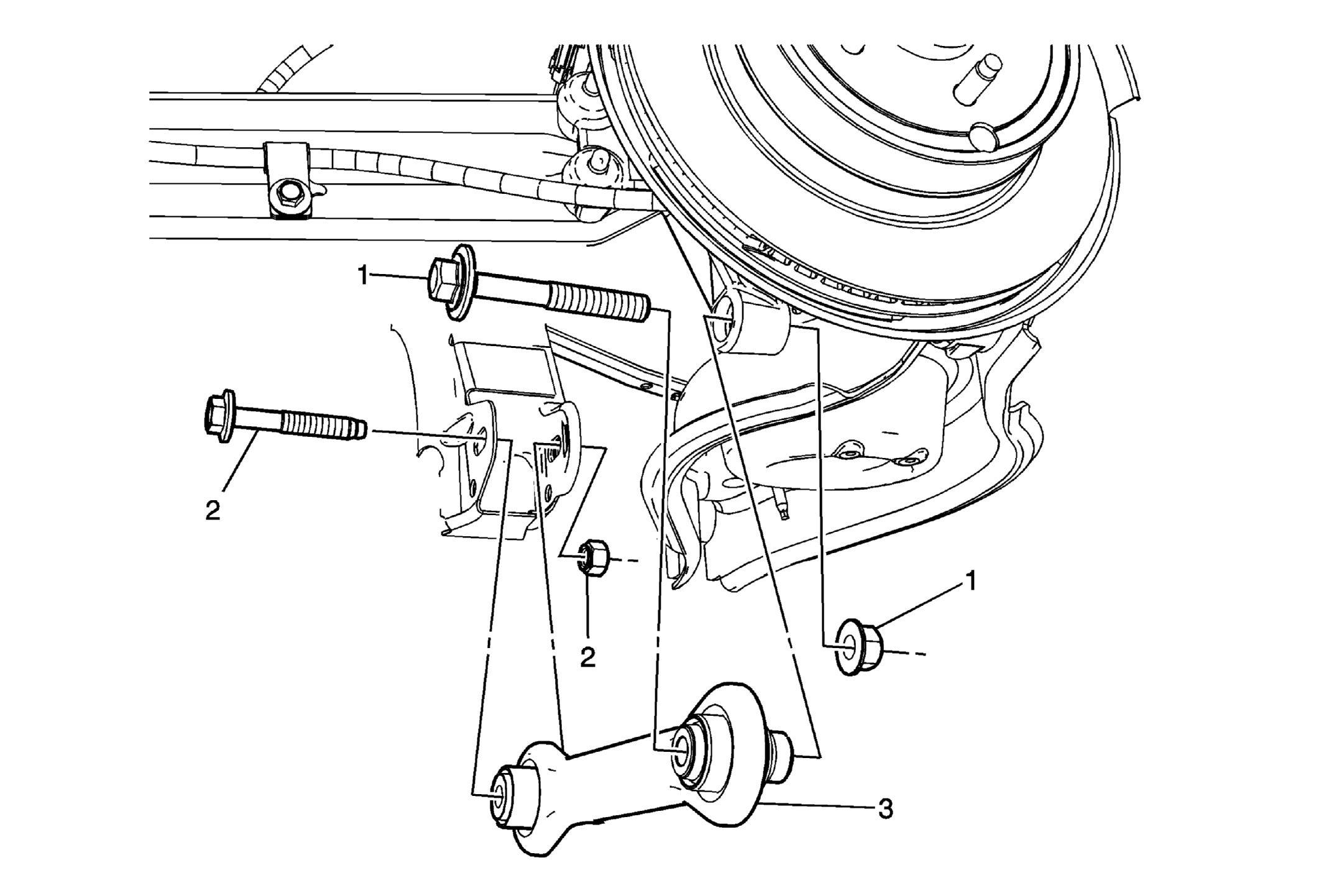

Fig 1: View Of Adjustment Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
1	Adjustment Link to Knuckle Bolt and Nut CAUTION: Refer to Fastener Caution . Tighten: 160 N.m (118 lb ft).
2	Adjustment Link to Support Bolt and Nut Tighten: 160 N.m (118 lb ft).
3	Adjustment Link Procedure: Check rear alignment. Refer to Wheel Alignment Measurement .
