Antilock Brake System Schematics (Non 2 Mode Hybrid)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

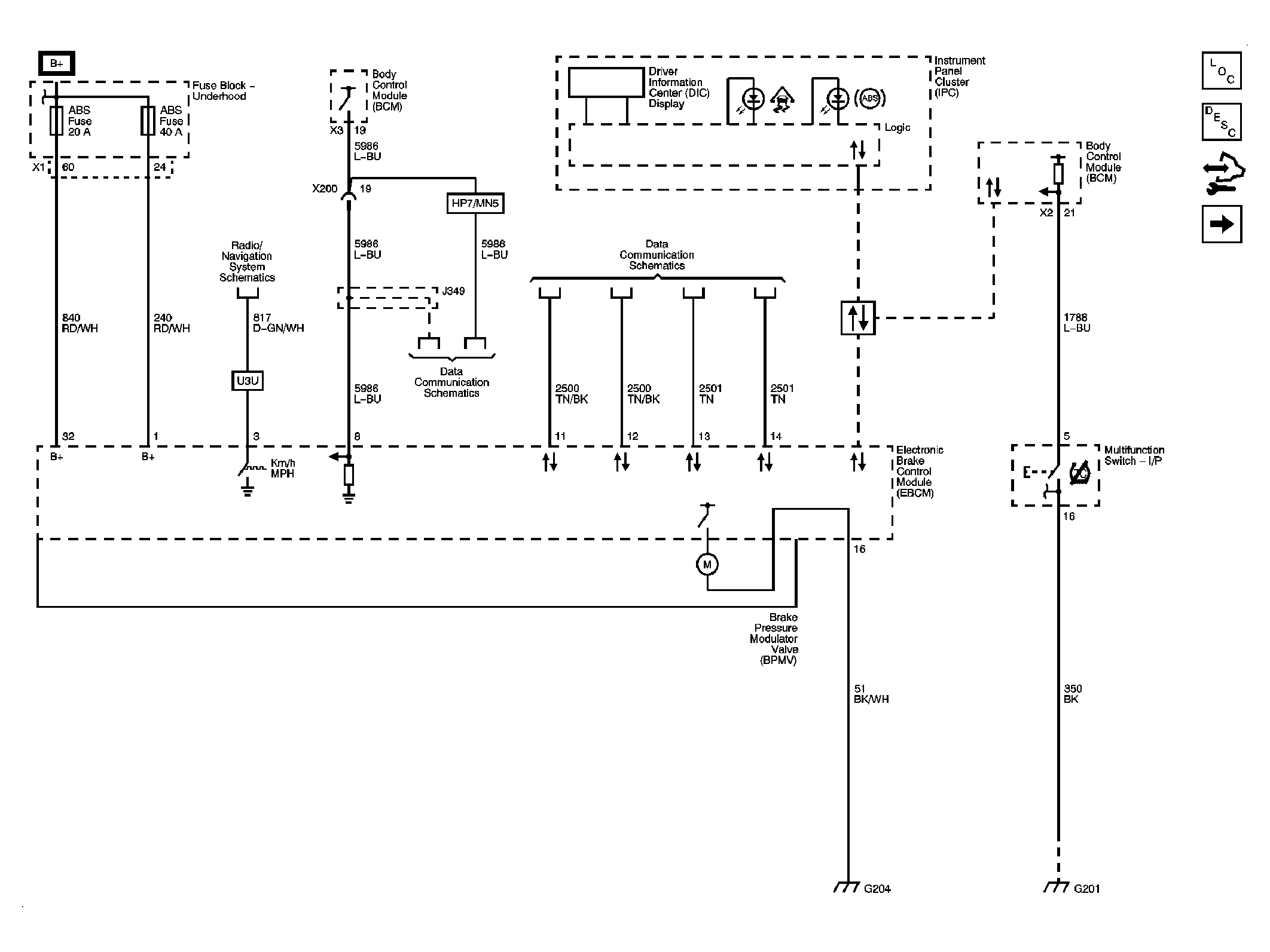

Fig 1: Control Module Power, Ground, Instrument Panel Display and Serial Data

Courtesy of GENERAL MOTORS CORP.

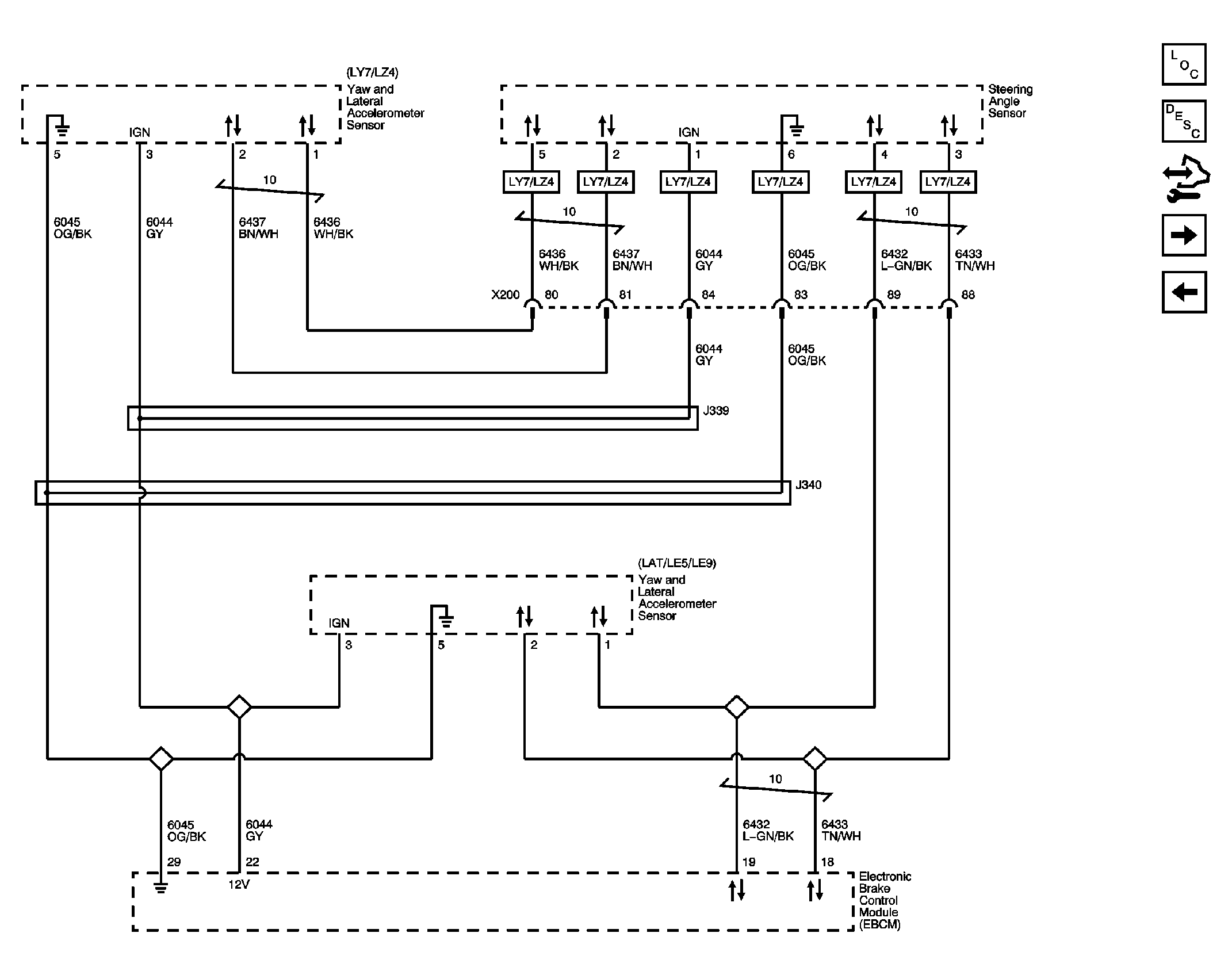

Fig 2: Steering Angle and YAW Sensors

Courtesy of GENERAL MOTORS CORP.

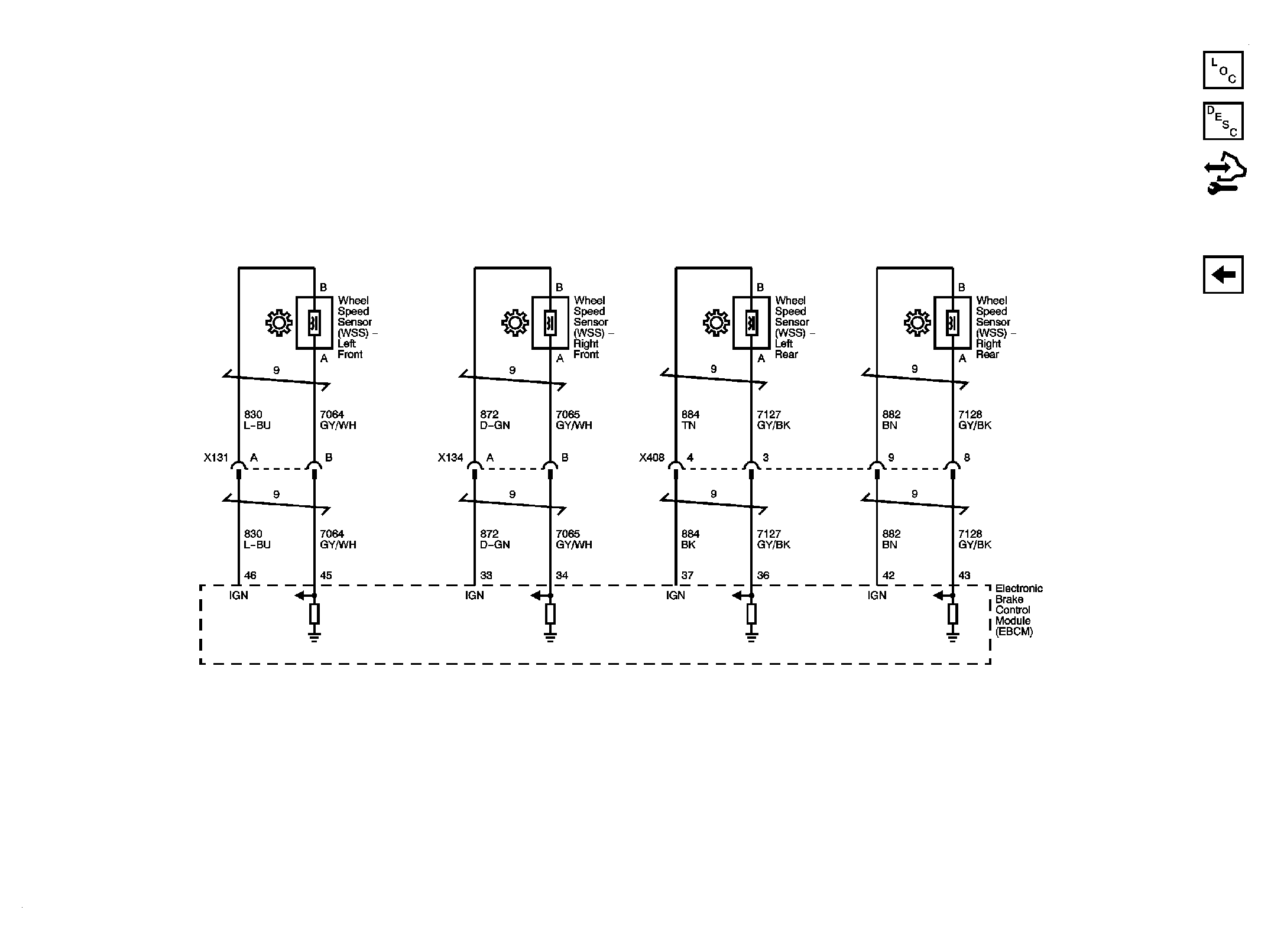

Fig 3: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
