Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

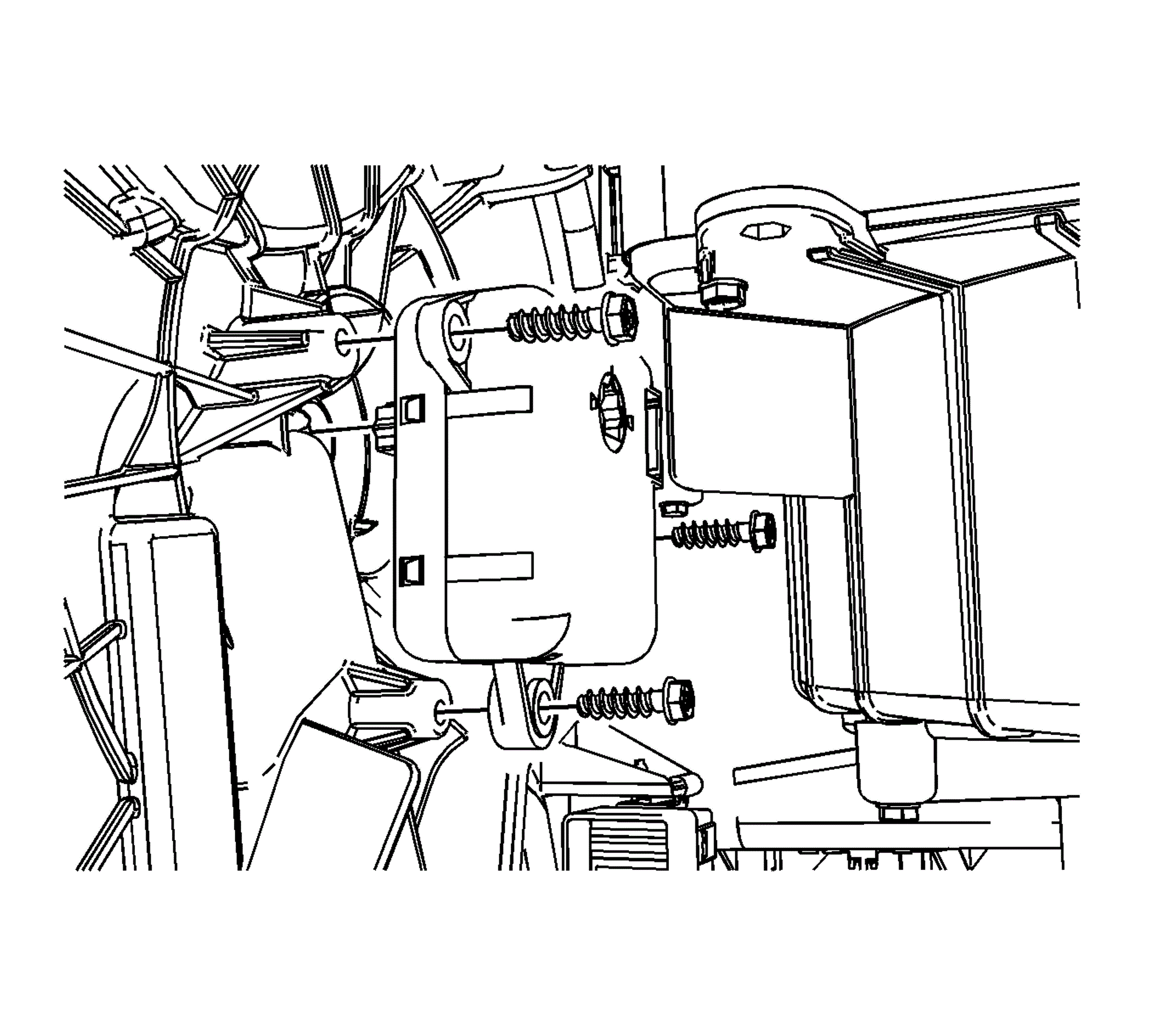

    Fig 1: View Of Air Temperature Actuator
    GM1646801Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Disconnect the electrical connector from the air temperature actuator.
  3. Remove the air temperature actuator screws from the HVAC module.
  4. Remove the air temperature actuator from the HVAC module.
