Duct Air Temperature Sensor Replacement - Upper

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

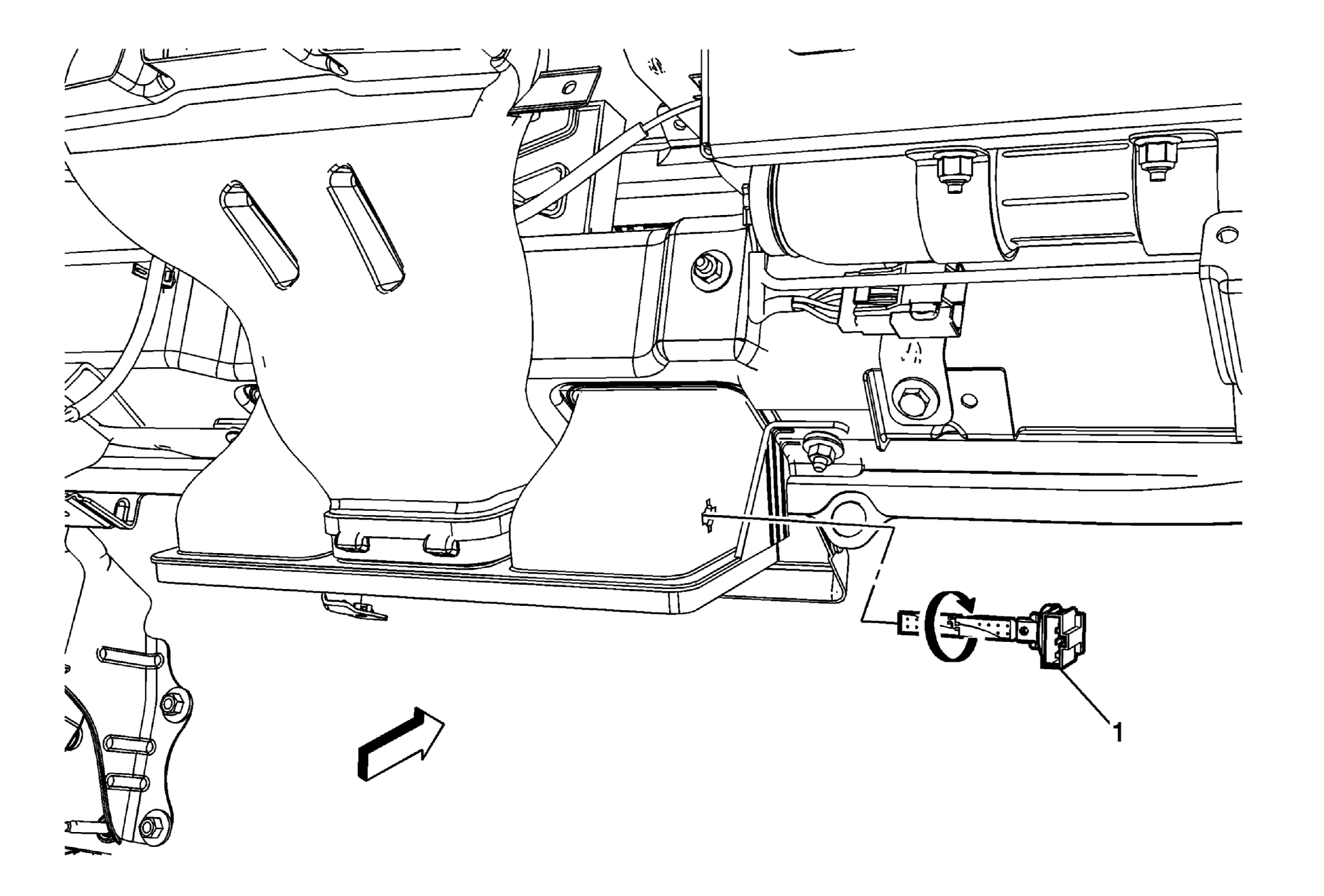

Fig 1: Upper Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement . Disconnect the electrical connections.
1	Air Temperature Sensor - Upper Procedure: Rotate sensor 1/4 turn to remove.

Callout

Component Name

Preliminary Procedure

Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement .
Disconnect the electrical connections.

Air Temperature Sensor - Upper
Procedure:
Rotate sensor 1/4 turn to remove.
