Duct Air Temperature Sensor Replacement - Lower

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

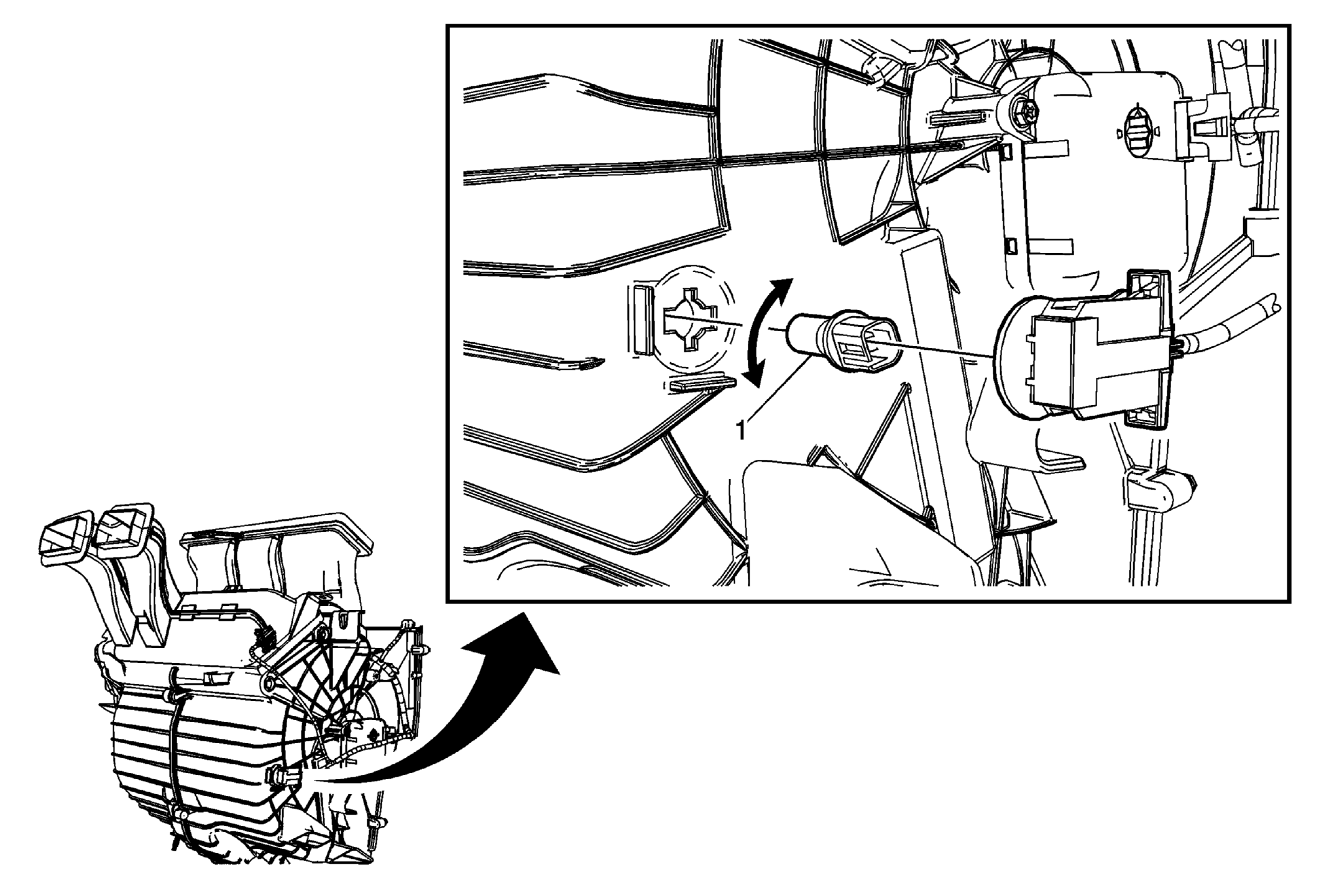

Fig 1: Lower Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove I/P Compartment. Refer to Instrument Panel Compartment Replacement Disconnect electrical connections.
1	Air Temperature Sensor - Lower Tip: Rotate sensor 1/4 turn to remove

Callout

Component Name

Preliminary Procedure

Remove I/P Compartment. Refer to Instrument Panel Compartment Replacement
Disconnect electrical connections.

Air Temperature Sensor - Lower
Tip: Rotate sensor 1/4 turn to remove
