Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

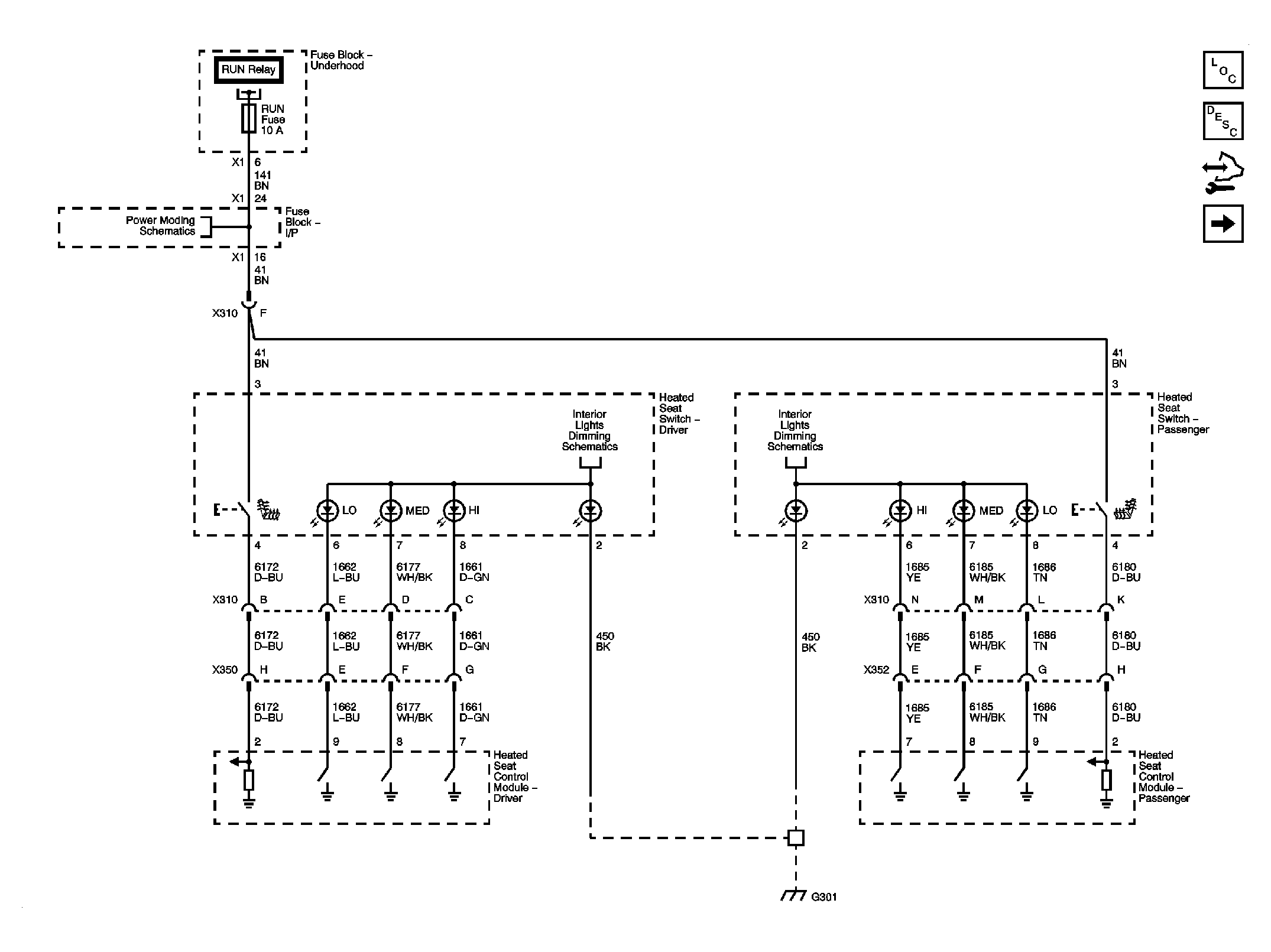

Fig 1: Heated Seats
GM2080369Courtesy of GENERAL MOTORS CORP.

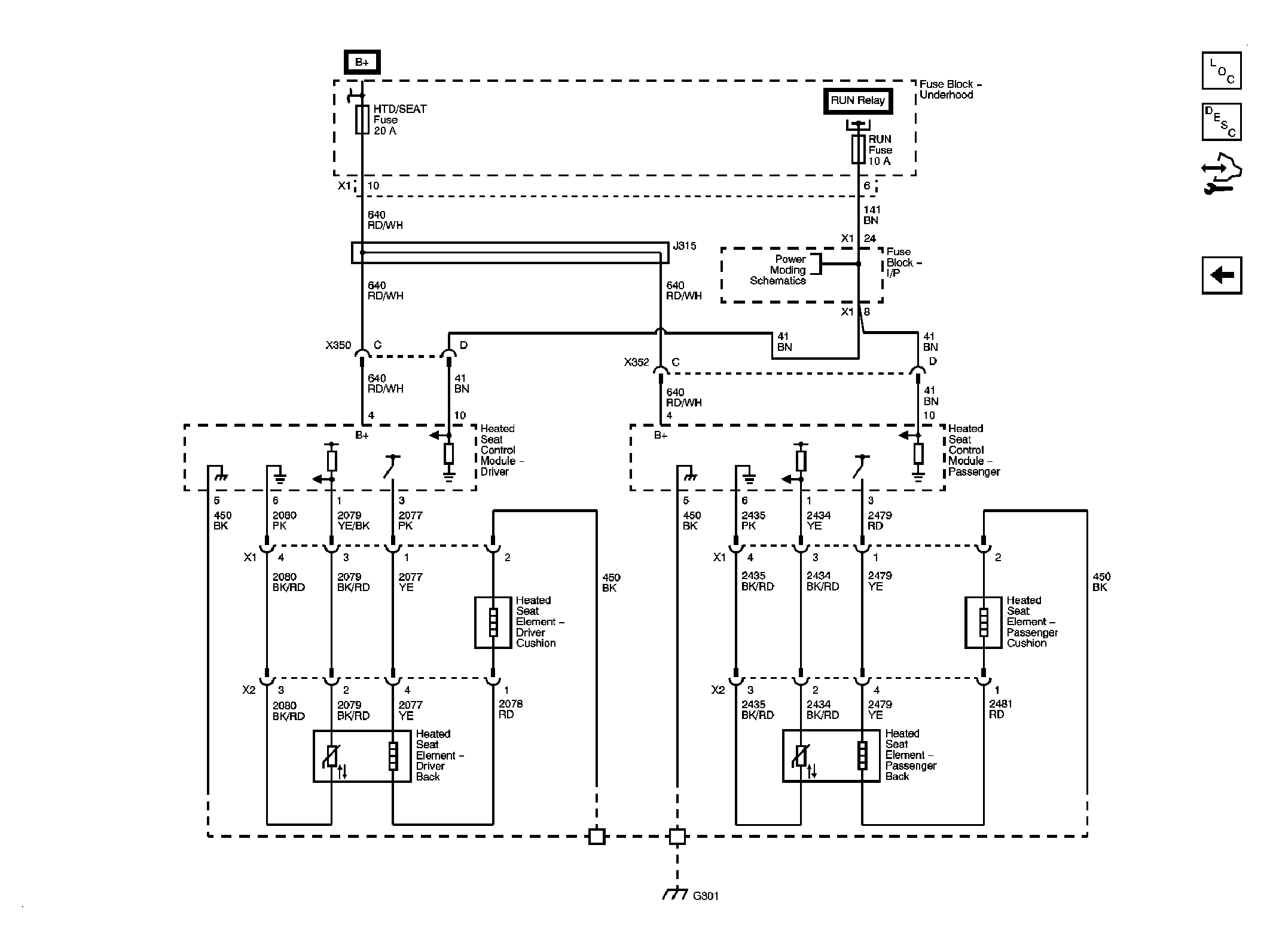

Fig 2: Heating Elements
GM2080375Courtesy of GENERAL MOTORS CORP.
