Front Seat Heater Switch Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

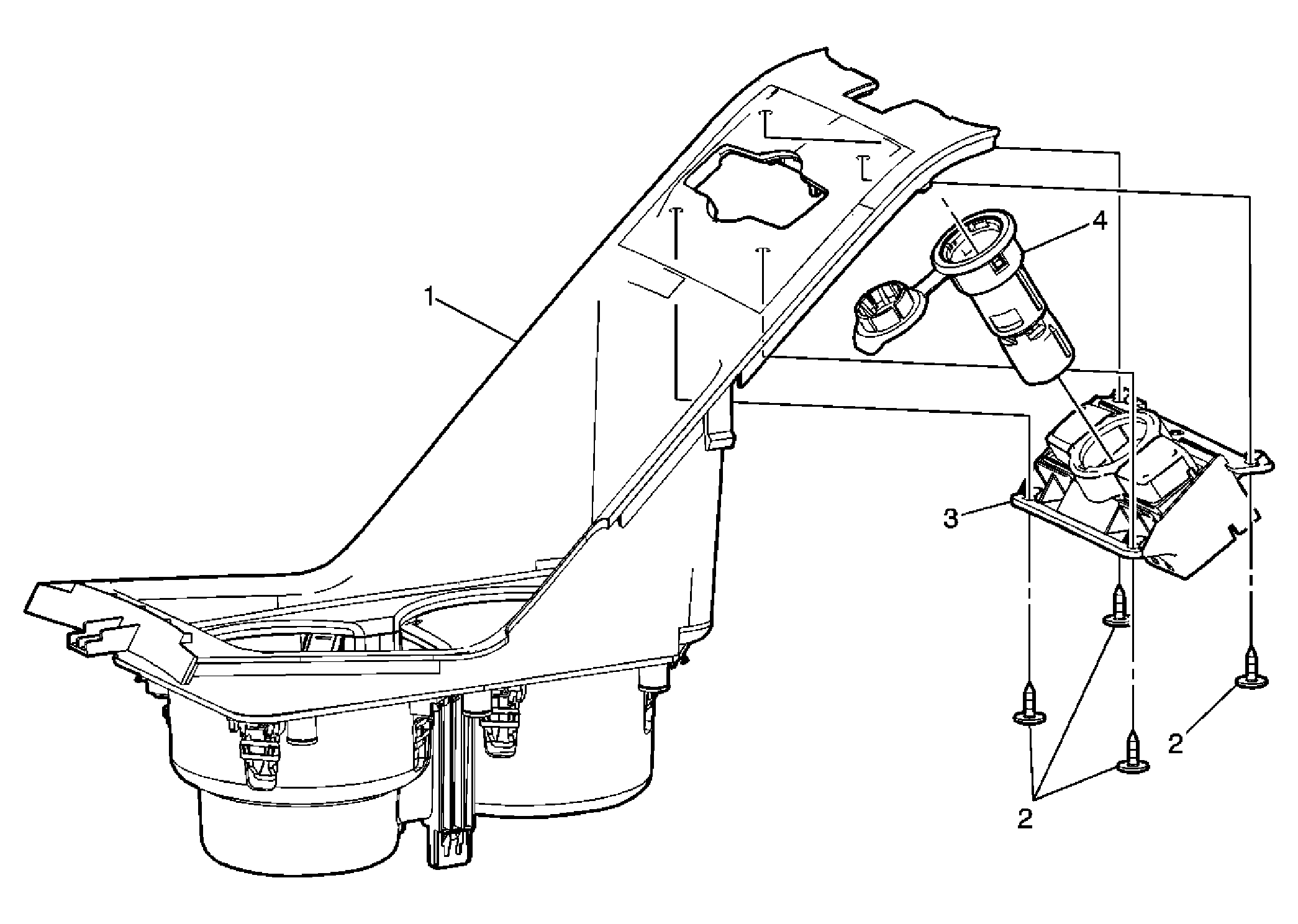

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Front Cover Assembly Refer to Front Floor Rear Console Front Cover Replacement . |
| 2 | Heated Seat Switch Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Heated Seat Switch |
| 4 | Front Floor Console Accessory Power Receptacle Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement . |
