Power Brake Booster Vacuum Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

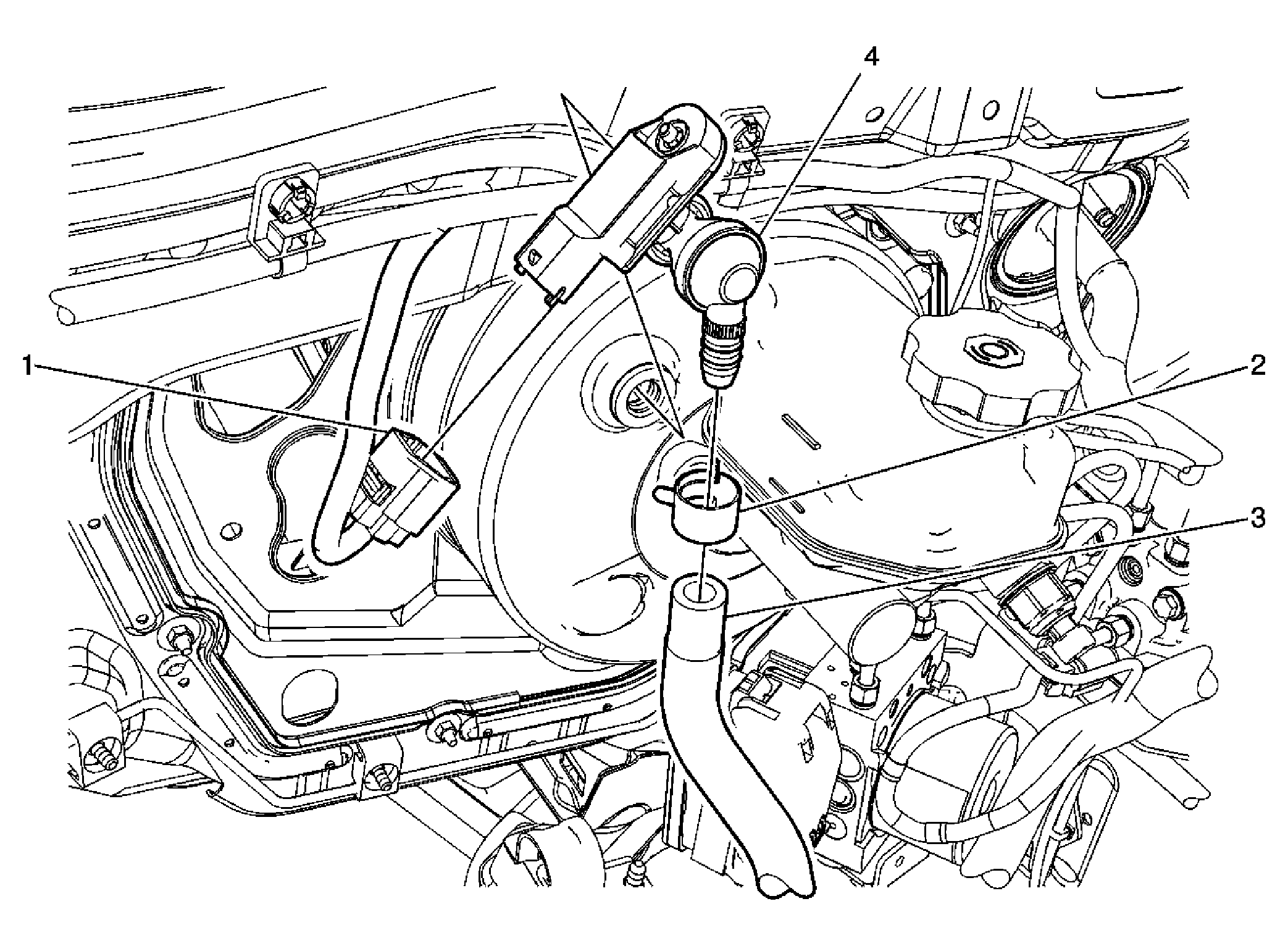

Fig 1: Power Brake Booster Vacuum Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn the ignition switch to the OFF position. Apply the brake pedal several times until the brake pedal becomes firm to deplete the power brake booster vacuum reserve.
1	Power Brake Booster Vacuum Sensor Electrical Connector
2	Power Brake Booster Vacuum Hose Clamp
3	Power Brake Booster Vacuum Hose
4	Power Brake Booster Vacuum Sensor Tip: If necessary, a small amount of denatured alcohol can be used as an assembly aid for installing the power brake booster vacuum sensor to the brake booster. Do not use soap.
