Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Brake Fluid Irritant Warning .
CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

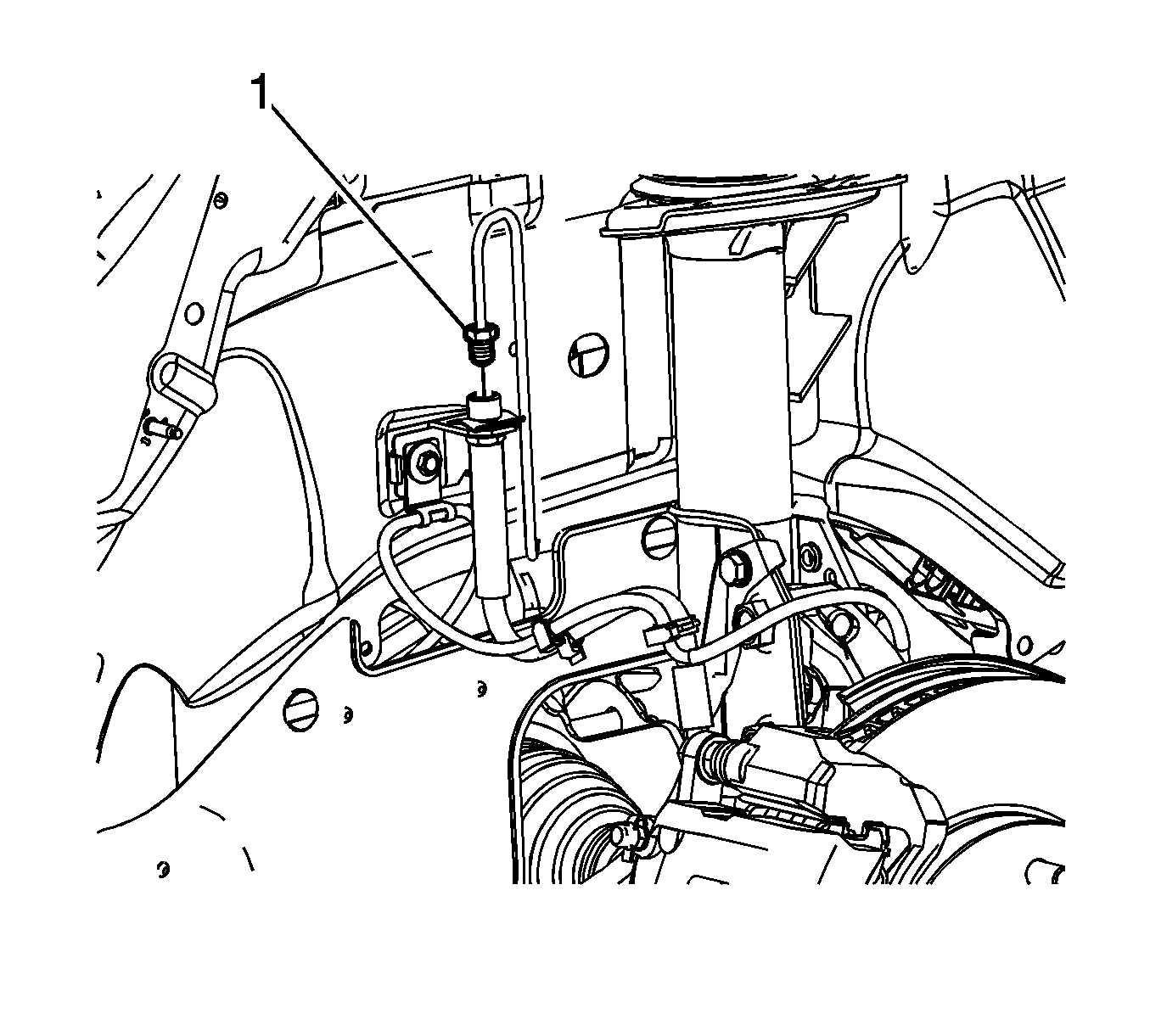

    3. Fig 1: Brake Pipe Fitting
    GM1874786Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the brake pipe fitting (1) from the brake hose.

    Cap the brake pipe fitting to prevent brake fluid loss and contamination.

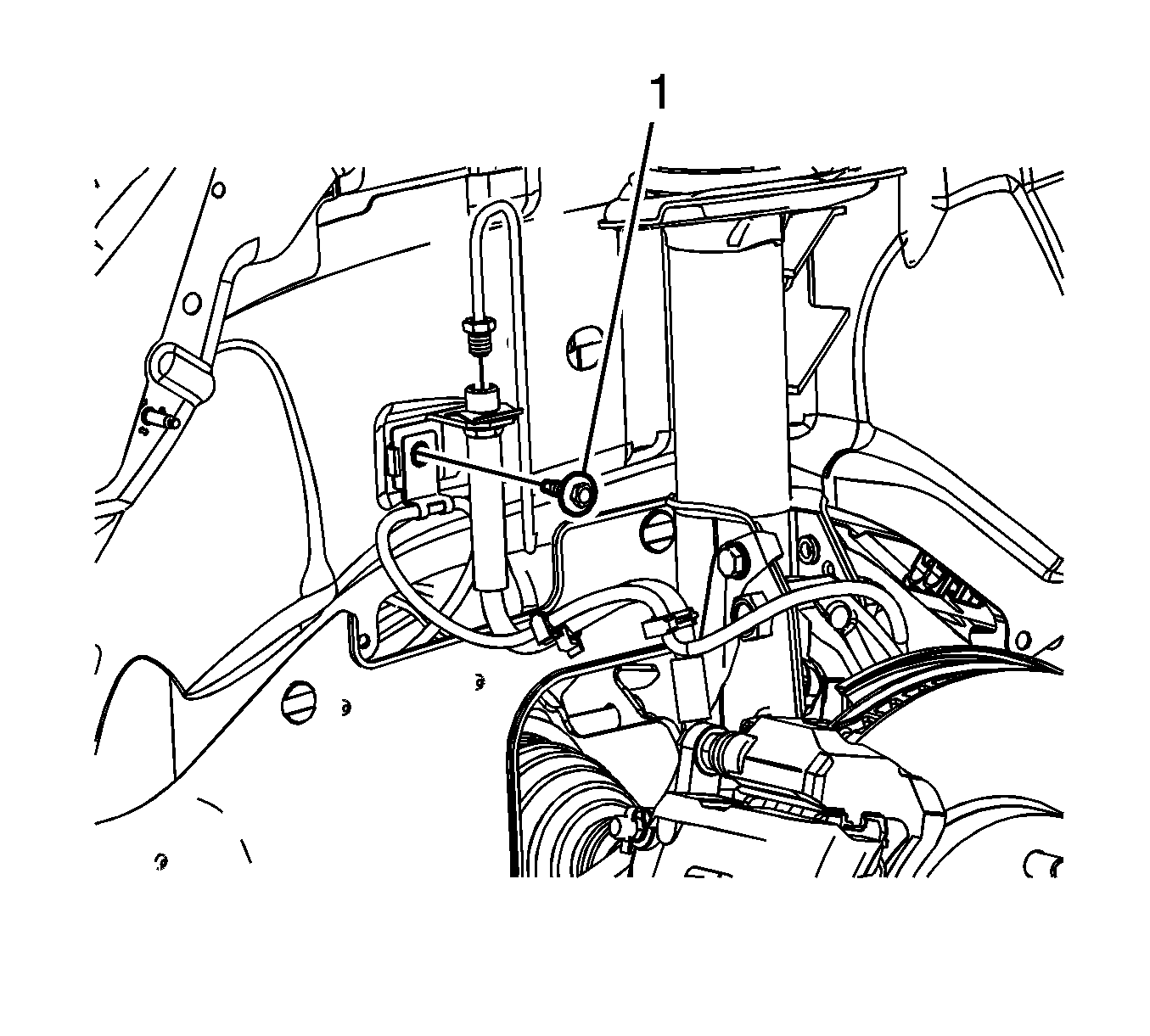

    4. Fig 2: Brake Hose Bolt
    GM1874788Courtesy of GENERAL MOTORS CORP.
  4. Remove the brake hose bolt (1) securing the brake hose bracket to the wheelhouse.

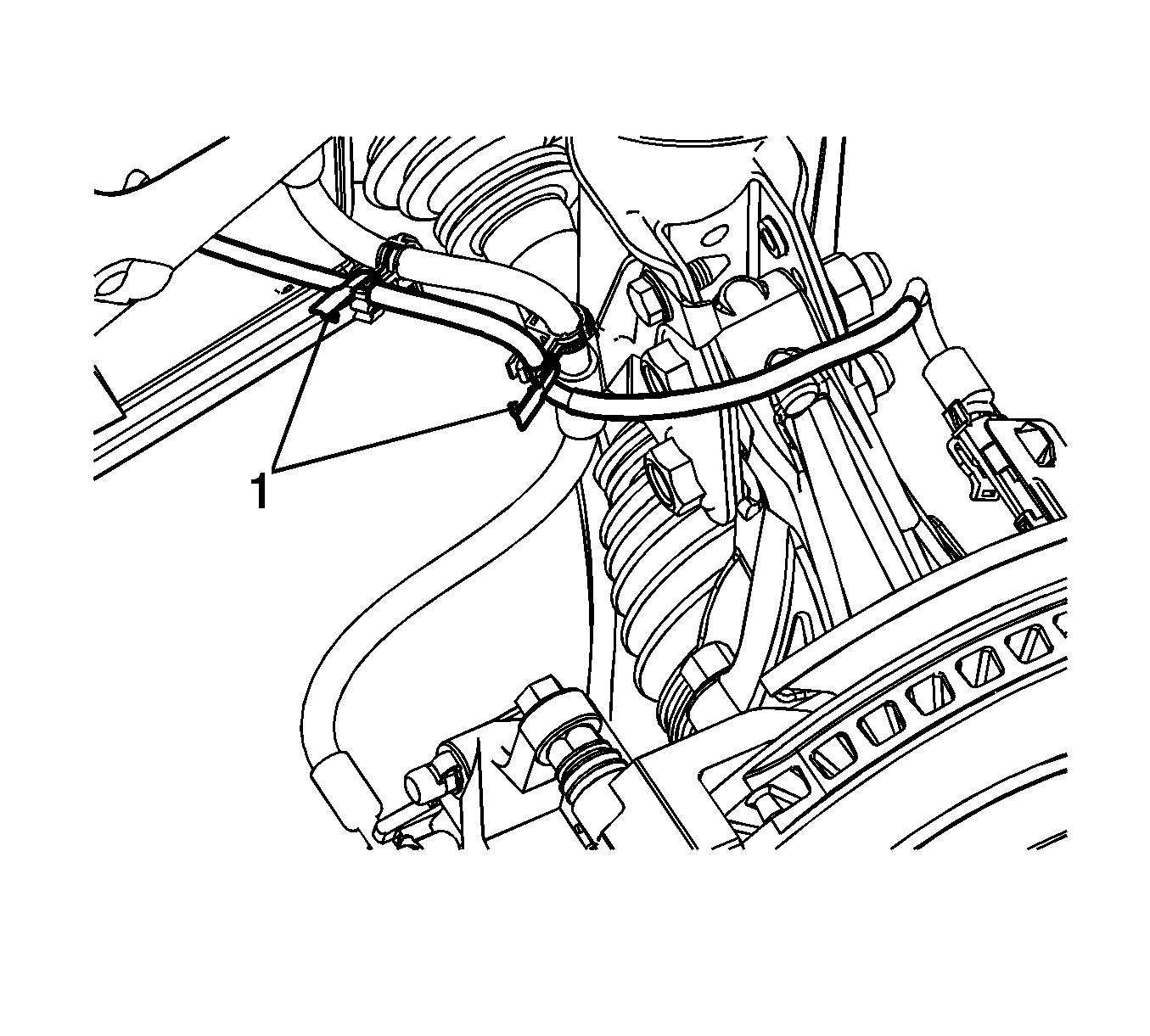

    5. Fig 3: Identifying Wheel Speed Sensor Harness Retaining Clips
    GM1874791Courtesy of GENERAL MOTORS CORP.
  5. Release the wheel speed sensor harness retaining clips (1) and release the harness.

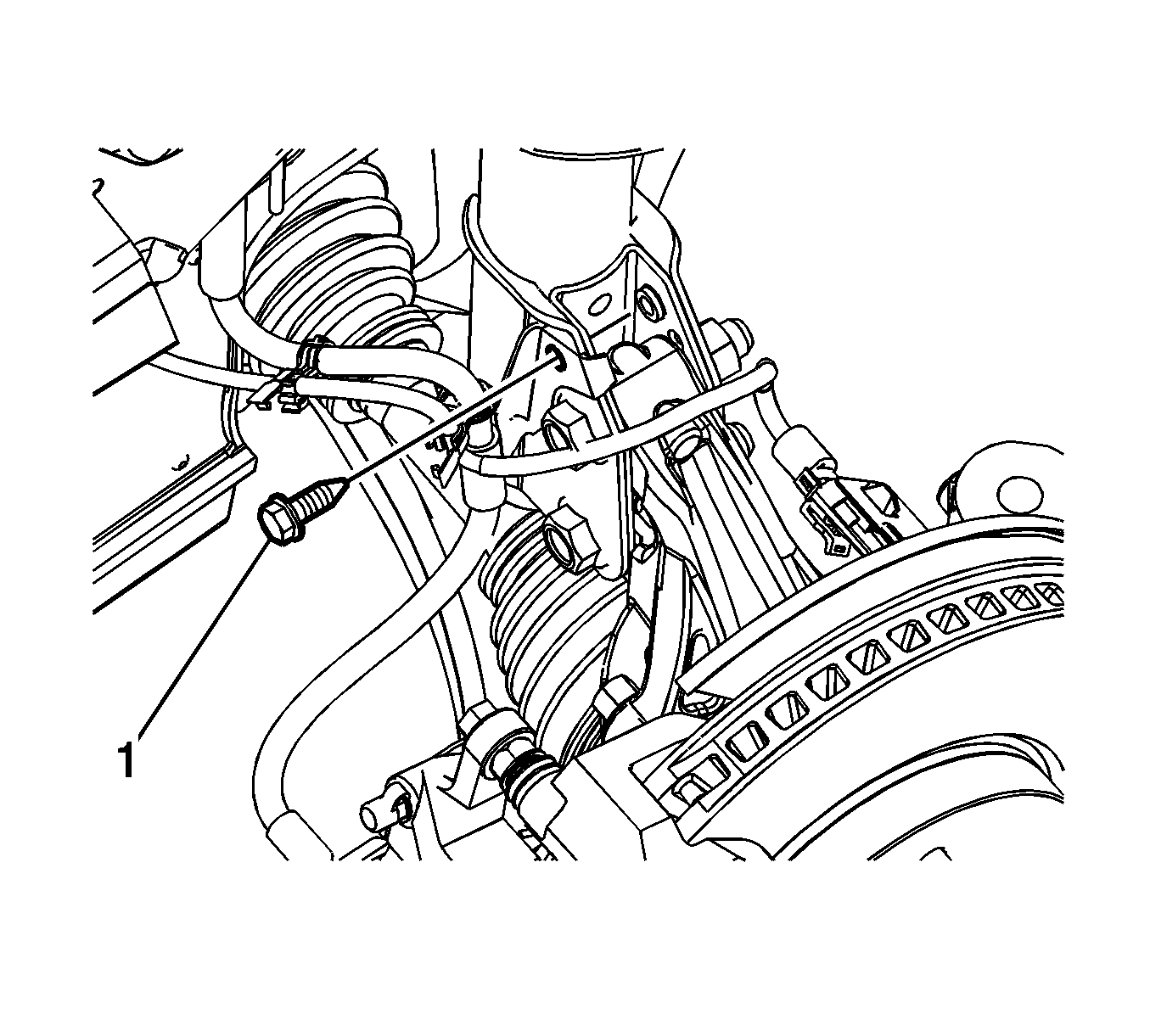

    6. Fig 4: Brake Hose Bracket Bolt
    GM1874793Courtesy of GENERAL MOTORS CORP.
  6. Remove the brake hose bracket bolt (1).

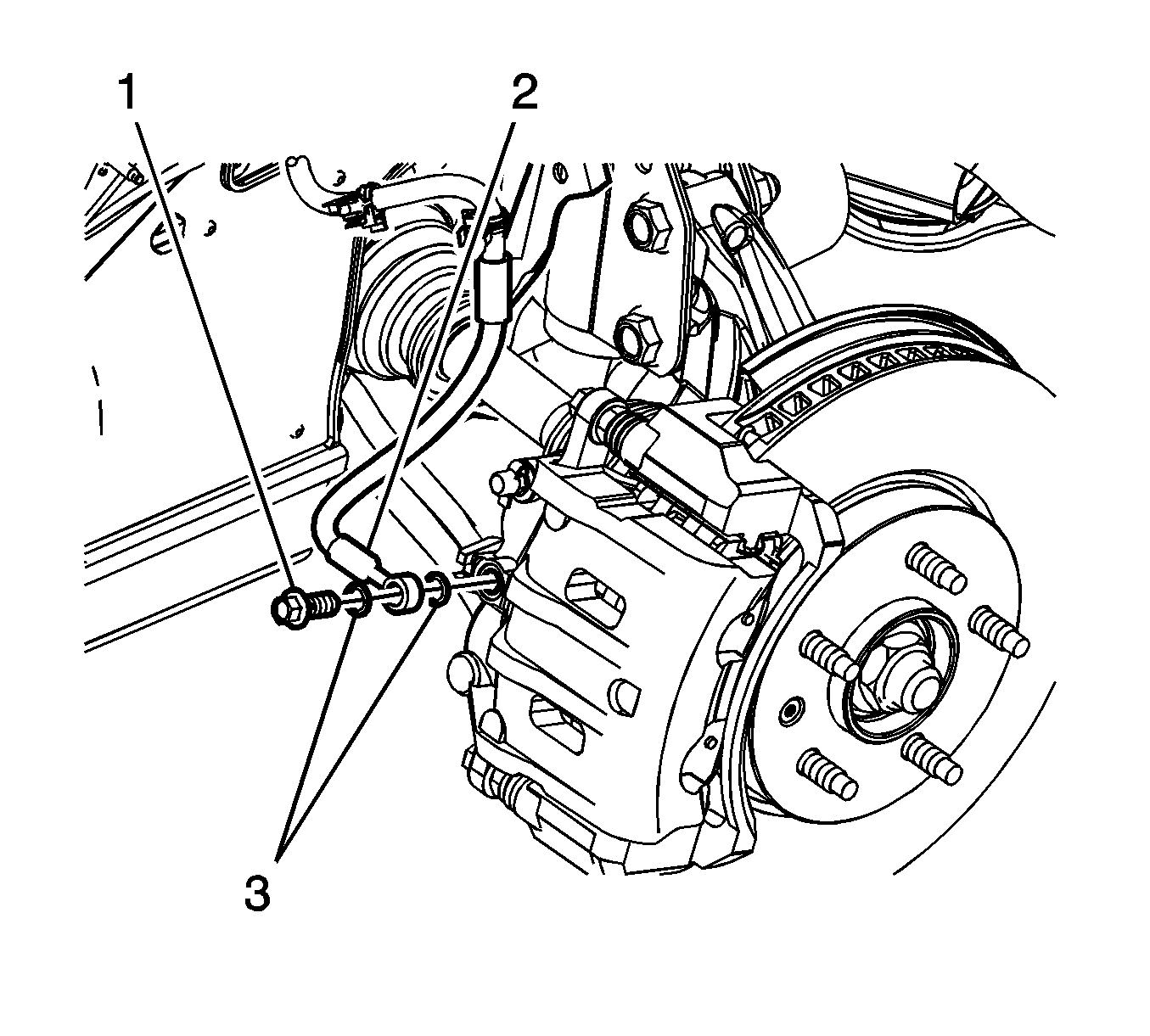

    7. Fig 5: Brake Hose Fitting Gaskets
    GM1874794Courtesy of GENERAL MOTORS CORP.
  7. Remove the brake hose fitting bolt (1) from the brake hose and the caliper.
  8. Remove the brake hose (2) from the caliper.
    9. NOTE: Do not reuse the brake hose fitting gaskets.
  9. Remove and discard the brake hose fitting gaskets (3).
  10. Remove the brake hose.
