Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

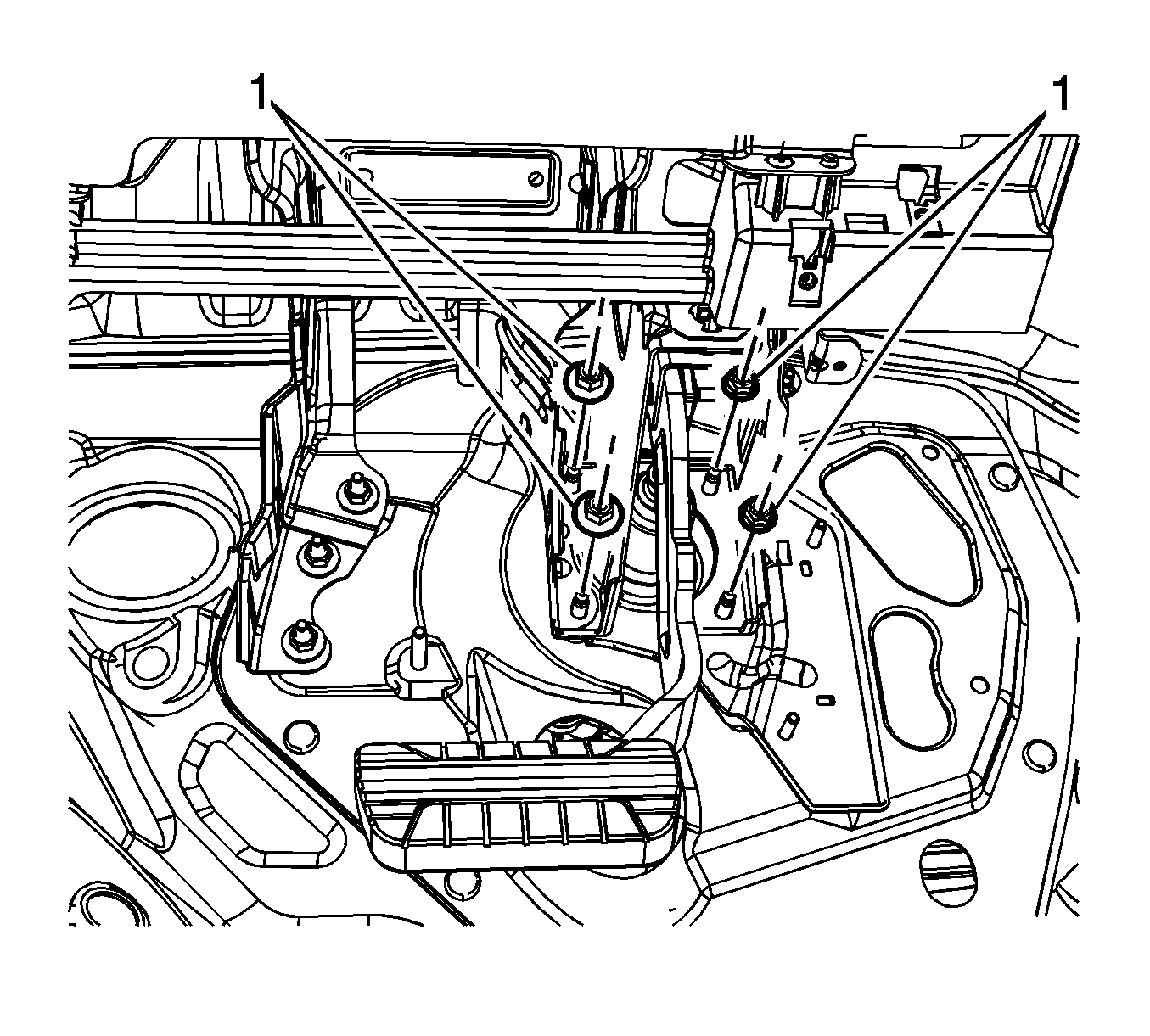

    Fig 1: Brake Pedal Bracket Nuts
    GM2193344Courtesy of GENERAL MOTORS CORP.
  1. Install the brake pedal assembly to the dash panel reinforcement plate.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the brake pedal bracket nuts (1) and tighten to 25 N.m (18 lb ft).
    3. Fig 2: Brake Pedal Bracket Bolt
    GM1874784Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .
  4. Install the brake pedal bracket bolt (1) and tighten to 25 N.m (18 lb ft).

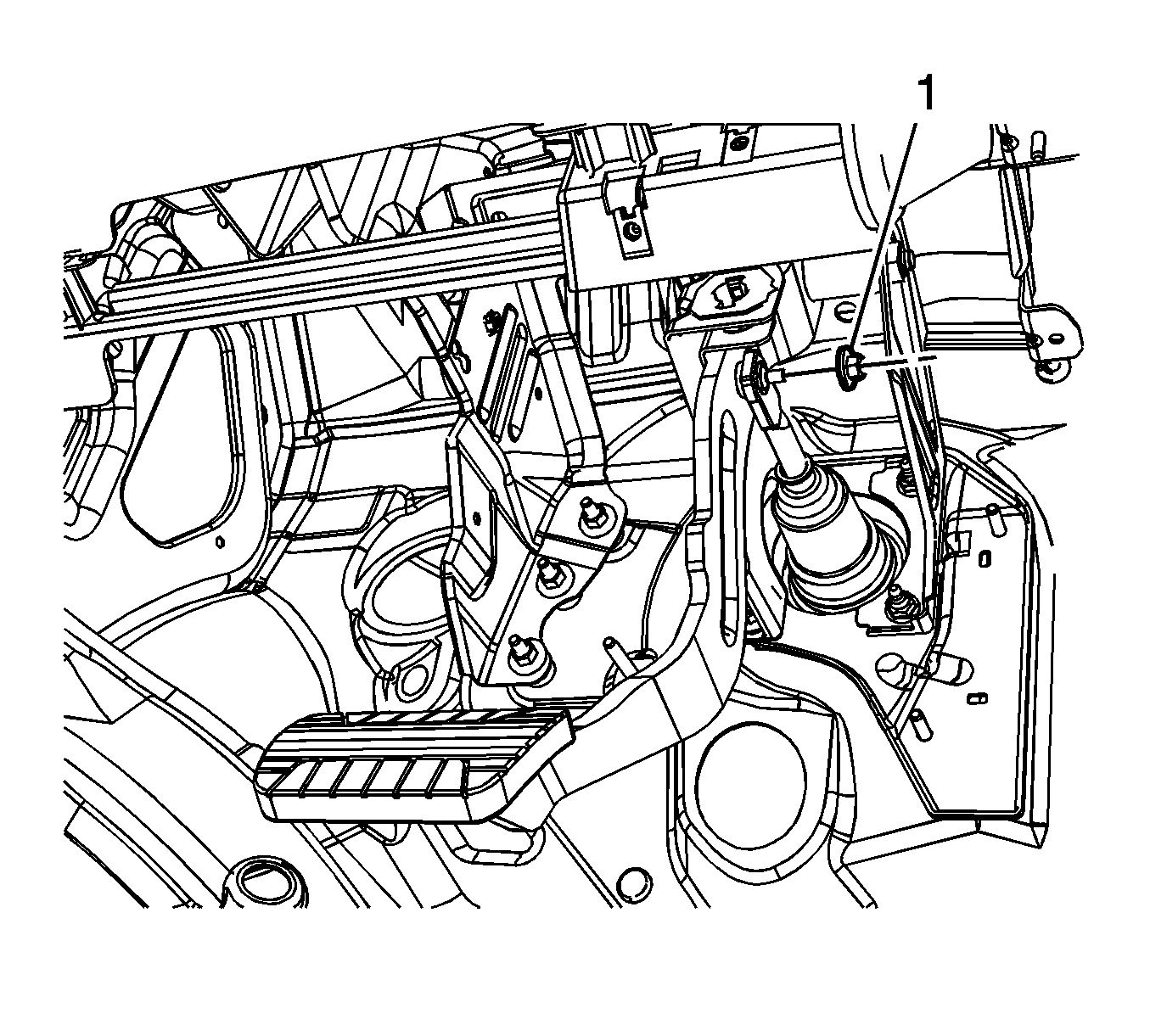

    5. Fig 3: Brake Booster Pushrod Retainer Nut
    GM2193343Courtesy of GENERAL MOTORS CORP.
  5. Connect the brake booster pushrod from the brake pedal pivot pin.
  6. Install the brake booster pushrod retainer nut (1) and tighten to 10 N.m (89 lb in).
  7. Install the stop lamp switch. Refer to Stop Lamp Switch Replacement .
  8. Install the accelerator pedal position sensor. Refer to Accelerator Pedal Position Sensor Replacement .
  9. Install the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .
