Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

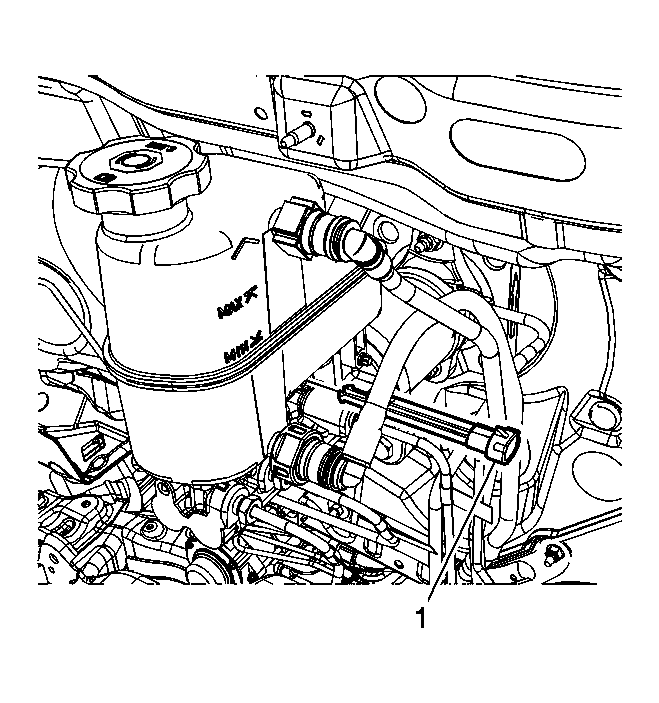

- Install the brake fluid level indicator switch (1) to the brake master cylinder reservoir.
Ensure the locking tabs on the brake fluid level indicator switch are fully engaged to the master cylinder reservoir.
- Connect the brake fluid level indicator switch electrical connector.
- Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
