Vacuum Reservoir Tank: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the vacuum tank. Install the bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Connect the vacuum hoses. See Fig 2. Install the coolant recovery reservoir. See Fig 1.

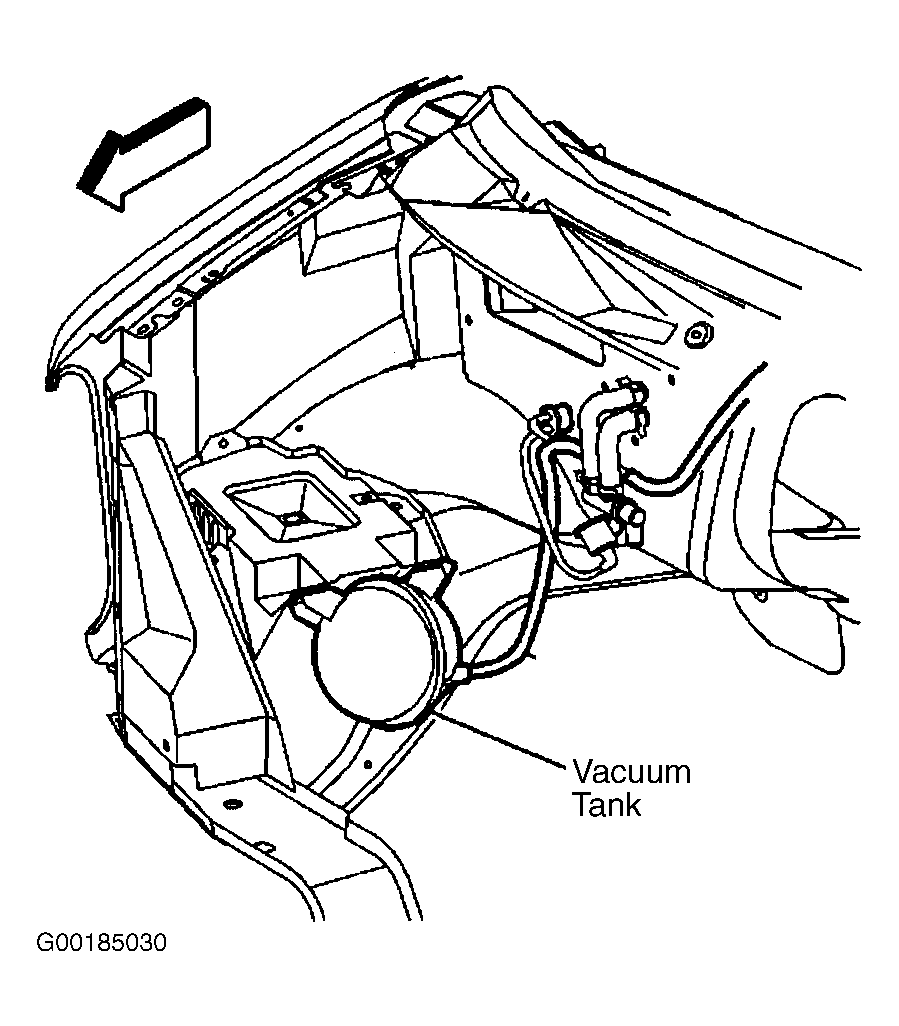

Fig 1: Identifying Vacuum Supply System Components
G00185030Courtesy of GENERAL MOTORS CORP.

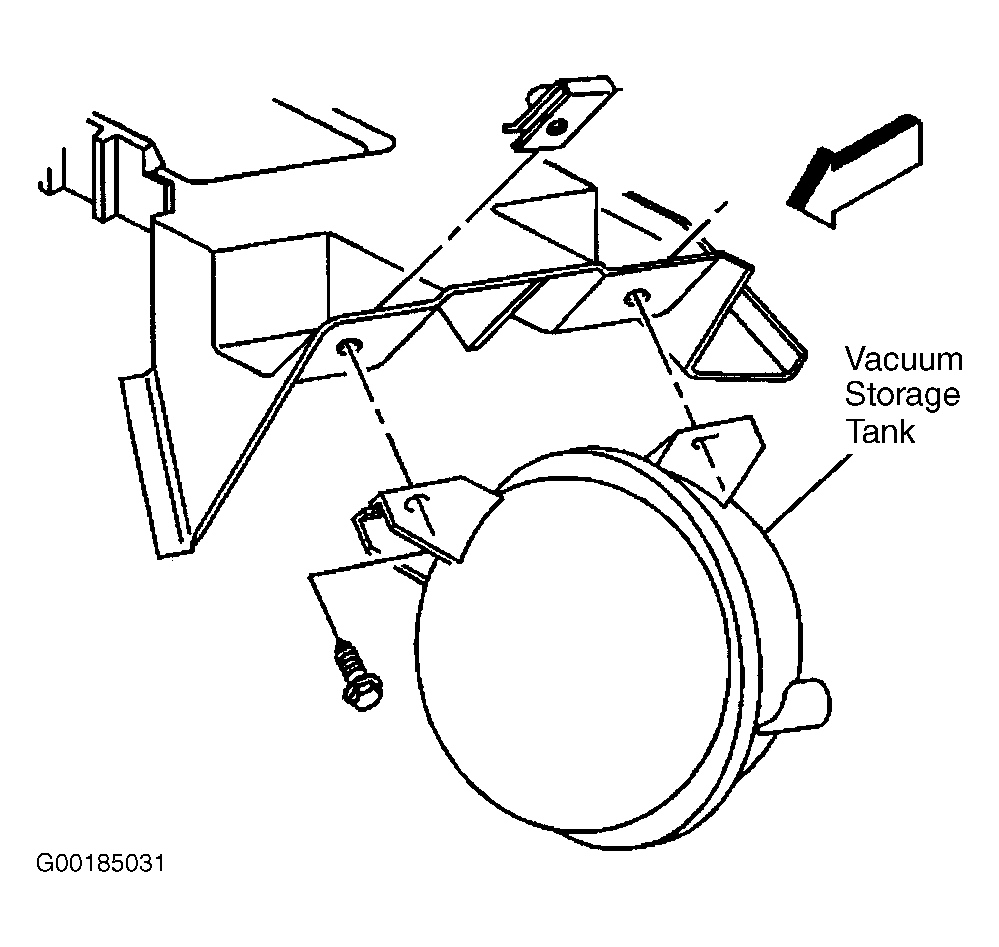

Fig 2: Removing & Installing Vacuum Tank Assembly
G00185031Courtesy of GENERAL MOTORS CORP.
