Temperature Door: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

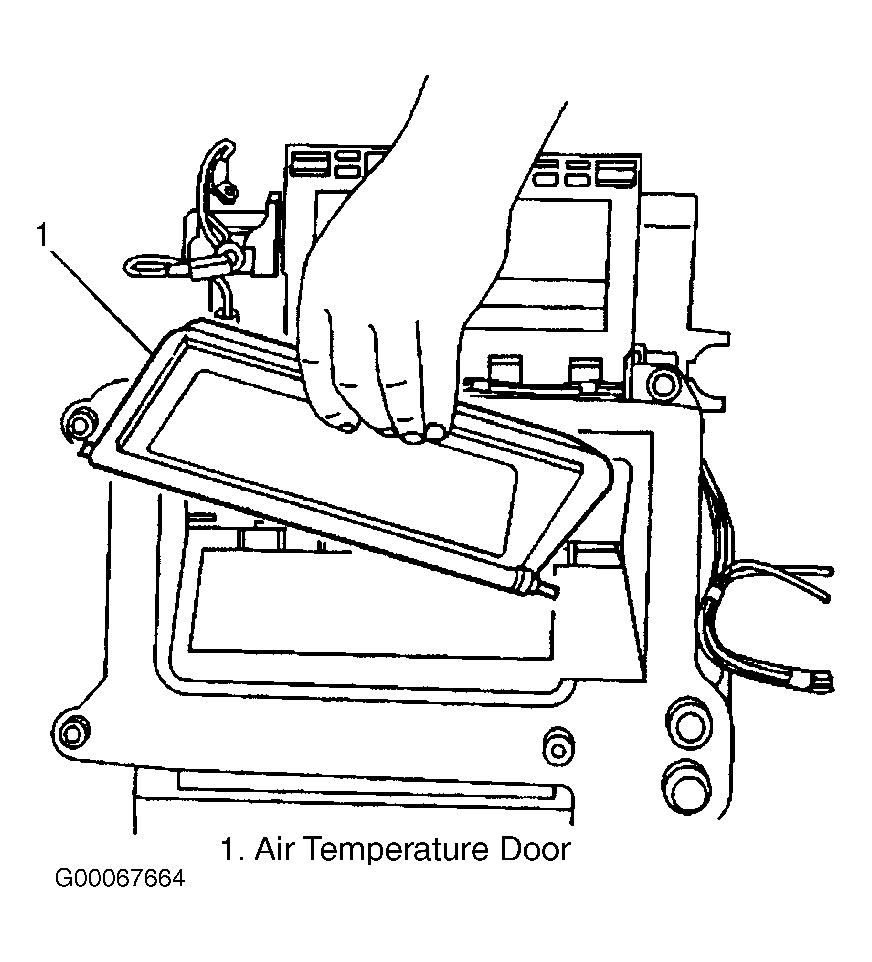

  1. Install the air temperature door to the HVAC module. See Figure. Install the air temperature door linkage and actuator.
  2. Install the evaporator front cover to the evaporator case. Install the A/C accumulator (if equipped). See ACCUMULATOR in REMOVAL & INSTALLATION MANUAL A/C-HEATER SYSTEMS article. Connect the negative battery cable.
  3. Install the coolant recovery reservoir or the surge tank. Evacuate and recharge the A/C system (on vehicles with A/C). See RECOVERY, EVACUATING & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.
