RECIRCULATION Door: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

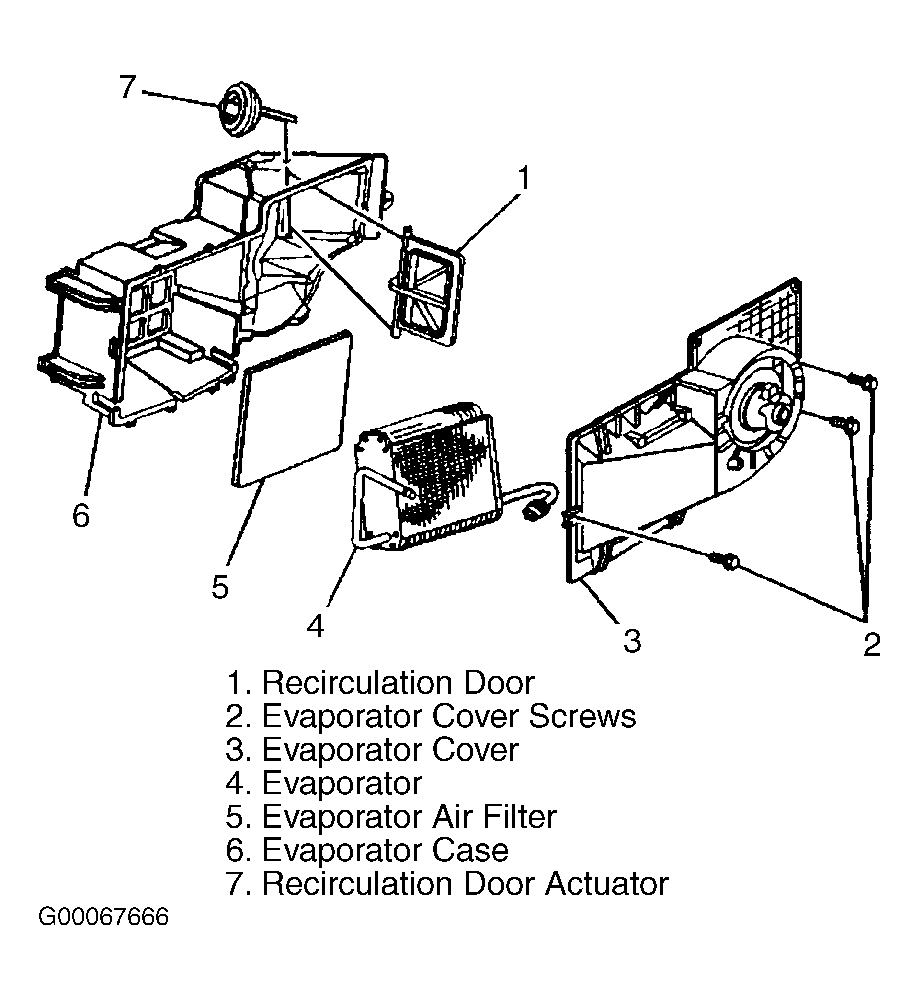

  1. Install the recirculation door to the evaporator case. See Figure. Install the recirculation door actuator and the linkage. Install the evaporator front cover.
  2. Install the screws to the evaporator front cover. Install the evaporator tube to the evaporator. Install the accumulator. Connect the electrical connectors.
  3. Install the battery to the vehicle. Install the coolant recovery tank or the surge tank. Evacuate and recharge the A/C system (if equipped). See RECOVERY, EVACUATING & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.
