Auxiliary Temperature Actuator: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

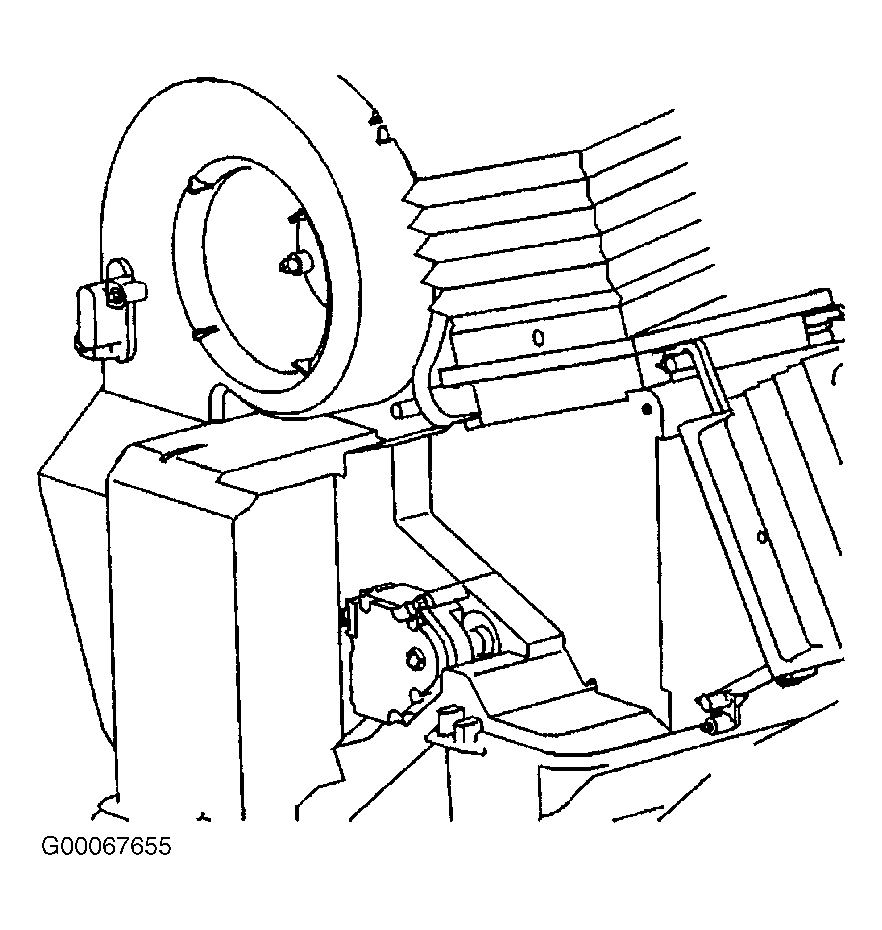

Install the air temperature actuator to the vehicle. See Fig 1. Install the retaining screws to the actuator. Connect the electrical connector to the actuator. Install the left rear quarter trim panel.
