Auxiliary Heater Case: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

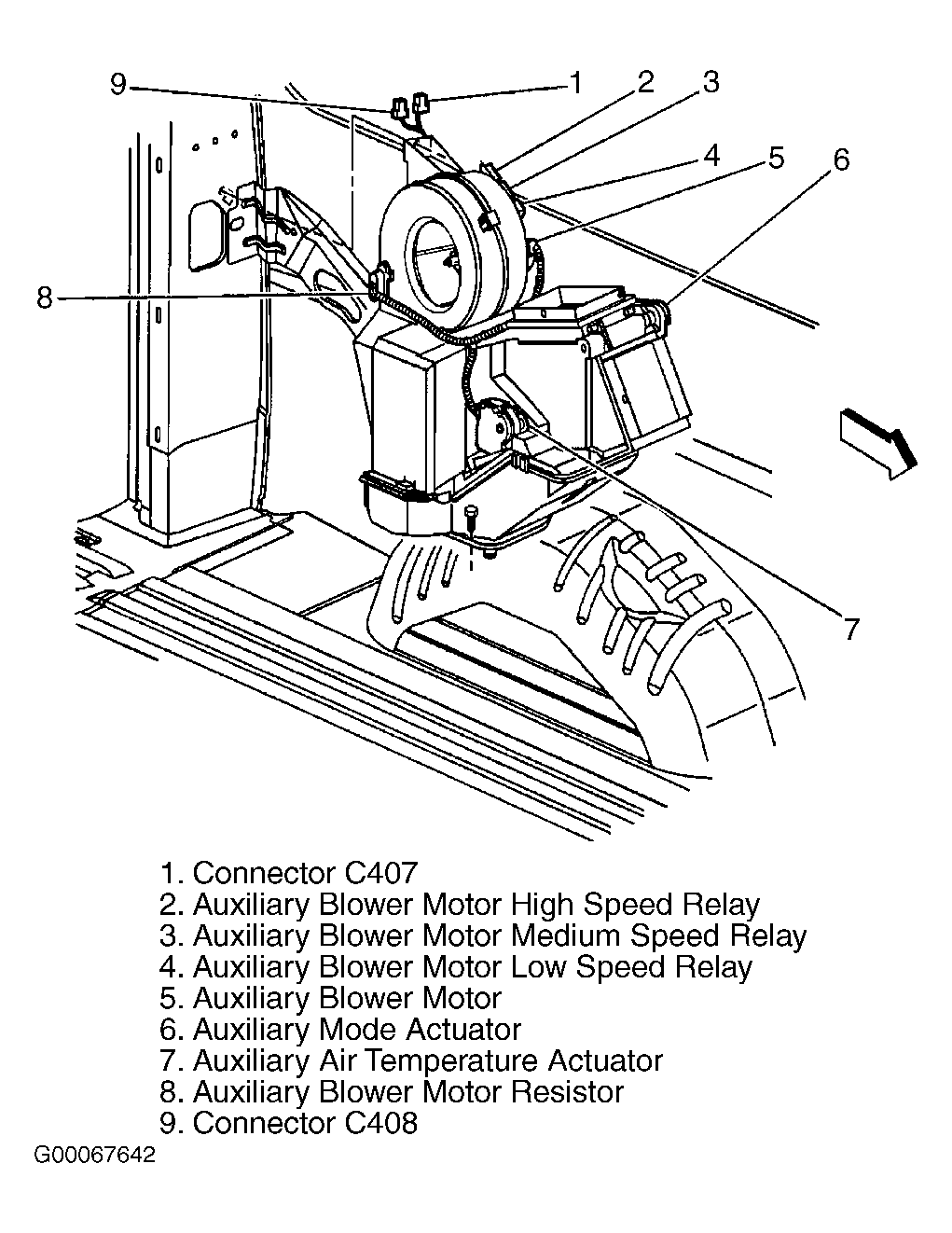

- Install the auxiliary heater into the vehicle. See Fig 2. Raise the vehicle. Support the vehicle with safety stands. Install the retaining nuts to the underside of the auxiliary heater.
- Connect the heater lines to the underside of the auxiliary heater. Install the one retaining nut to the auxiliary evaporator underbody rear tube assembly to the core (if equipped).

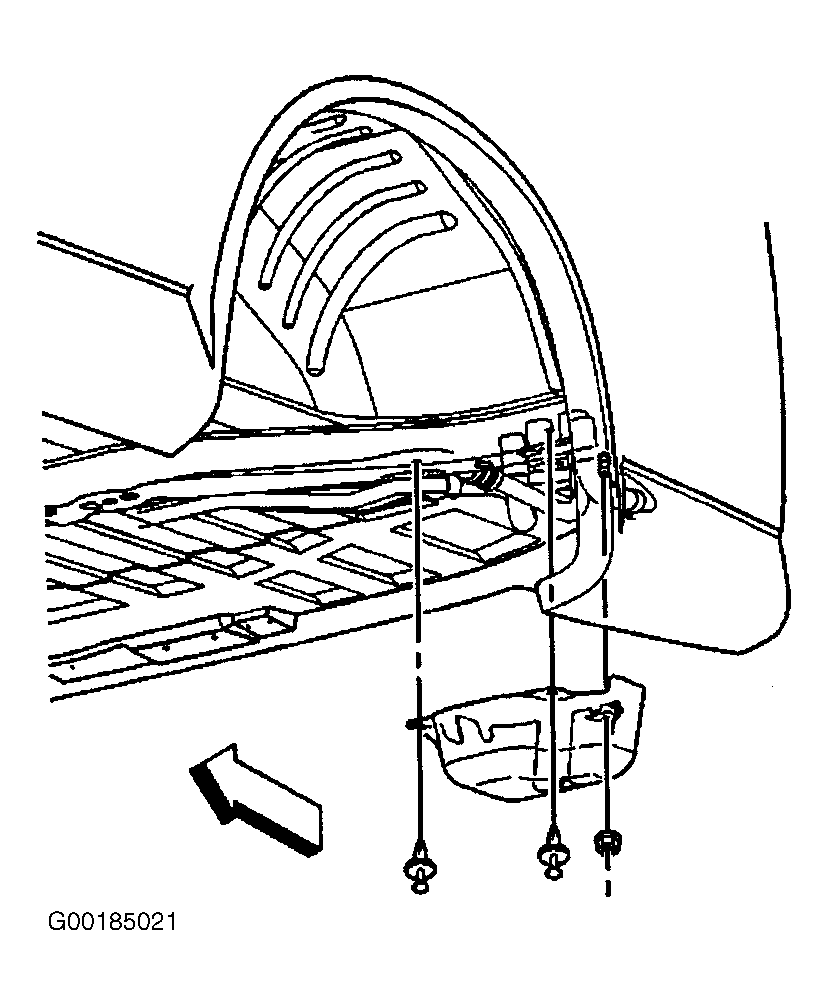

- Install the heater and heater line cover to the underside of the auxiliary heater. See Fig 1. Remove the safety stands. Lower the vehicle.
- Connect the electrical connectors to the auxiliary heater. Install the air distribution duct upper. Install the air distribution duct lower.
- Install the left rear corner garnish molding. Install the left rear quarter trim panel. Evacuate and recharge the A/C system (if equipped). Fill the engine coolant.
