Auxiliary Blower Relays: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

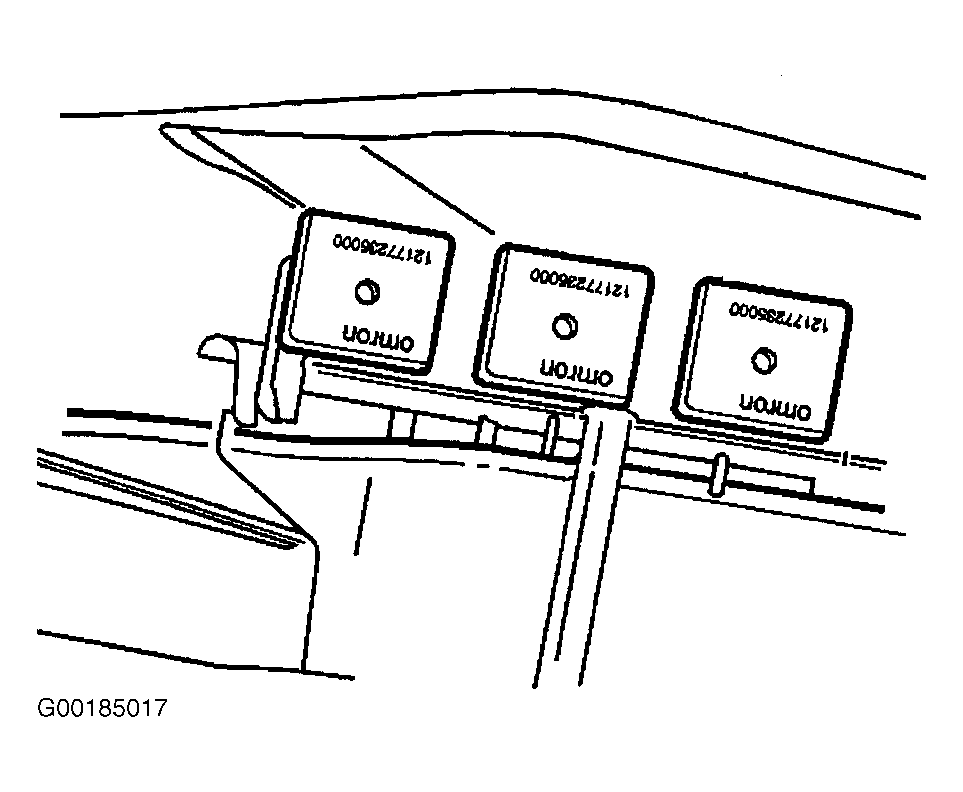

Install the blower motor relay to the vehicle. See Fig 1. Push downward to install the blower motor relay to the connector. Make sure the relay is fully seated in the connector. Install the body side rear trim panel.
