Auxiliary Blower Motor: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the auxiliary heater case from the vehicle. See AUXILIARY HEATER CASE . Disconnect the electrical connectors from the auxiliary blower motor.

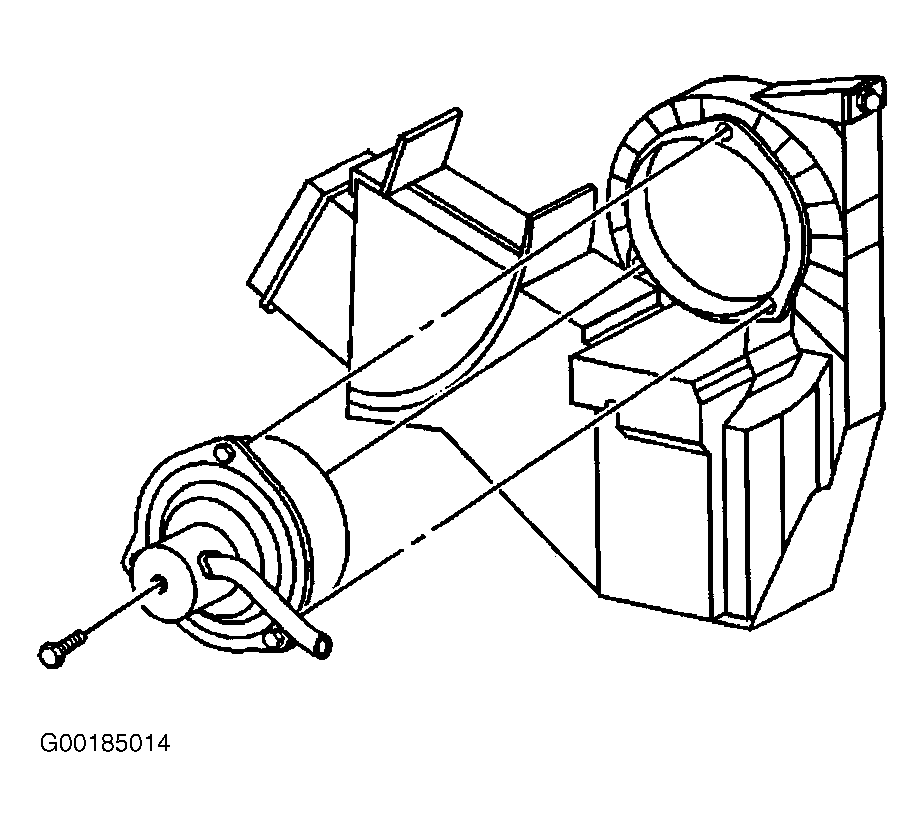

- Remove the retainers from the auxiliary blower motor. See Fig 1. Remove the auxiliary blower motor from the heater case. Remove the retaining clip from the fan cage. Remove the fan cage from the auxiliary blower motor.
