Windshield Washer Solvent Container Hose Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

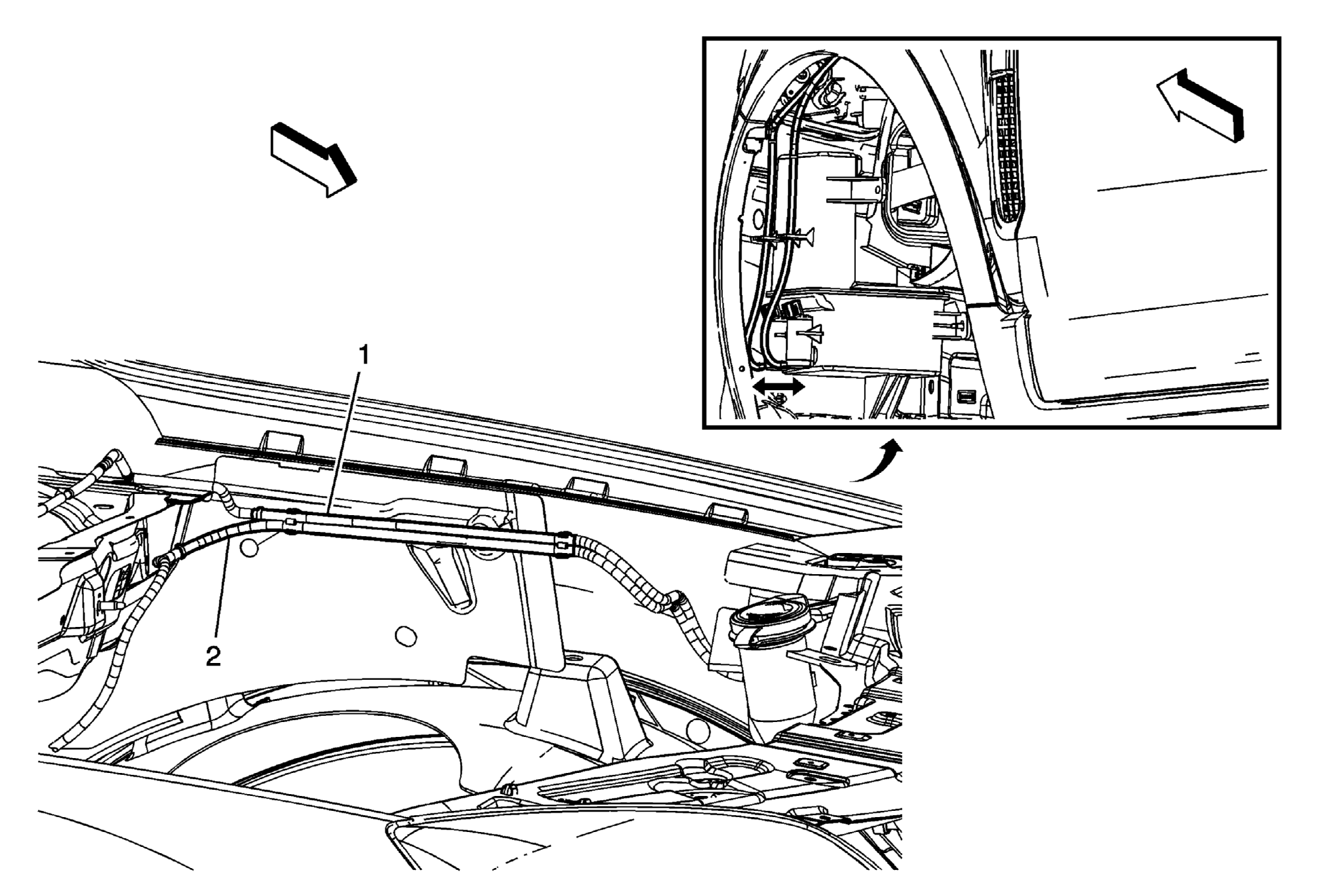

| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front left side wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
.
- Drain the windshield washer solvent into a clean suitable container.
- Disconnect both front and rear windshield washer solvent container hoses from the washer pump spouts.
- Disengage both hoses from the windshield washer container brackets.
|
| 1 |
Windshield Washer Solvent Container Hose Front Procedure
- Disengage the forward portion of the hoses from the clips securing the hoses to the front wheelhouse panel upper outer LH rail.
- Disconnect the front washer pump hose from the windshield washer nozzle hose assembly.
Tip:
Use clean windshield washer solvent at the connections when securing the washer hoses to the appropriate connections. |
| 2 |
Windshield Washer Solvent Container Hose Rear Procedure
- Disengage the rearward portion of the hoses from the clips securing the hoses to the front wheelhouse upper outer rear LH side rail reinforcement.
- Disconnect the rear washer pump hose from the rear window washer nozzle hose assembly.
Tip:
Use clean windshield washer solvent at the connections when securing the washer hoses to the appropriate connections. |
