Windshield Washer Nozzle Replacement (XA7)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

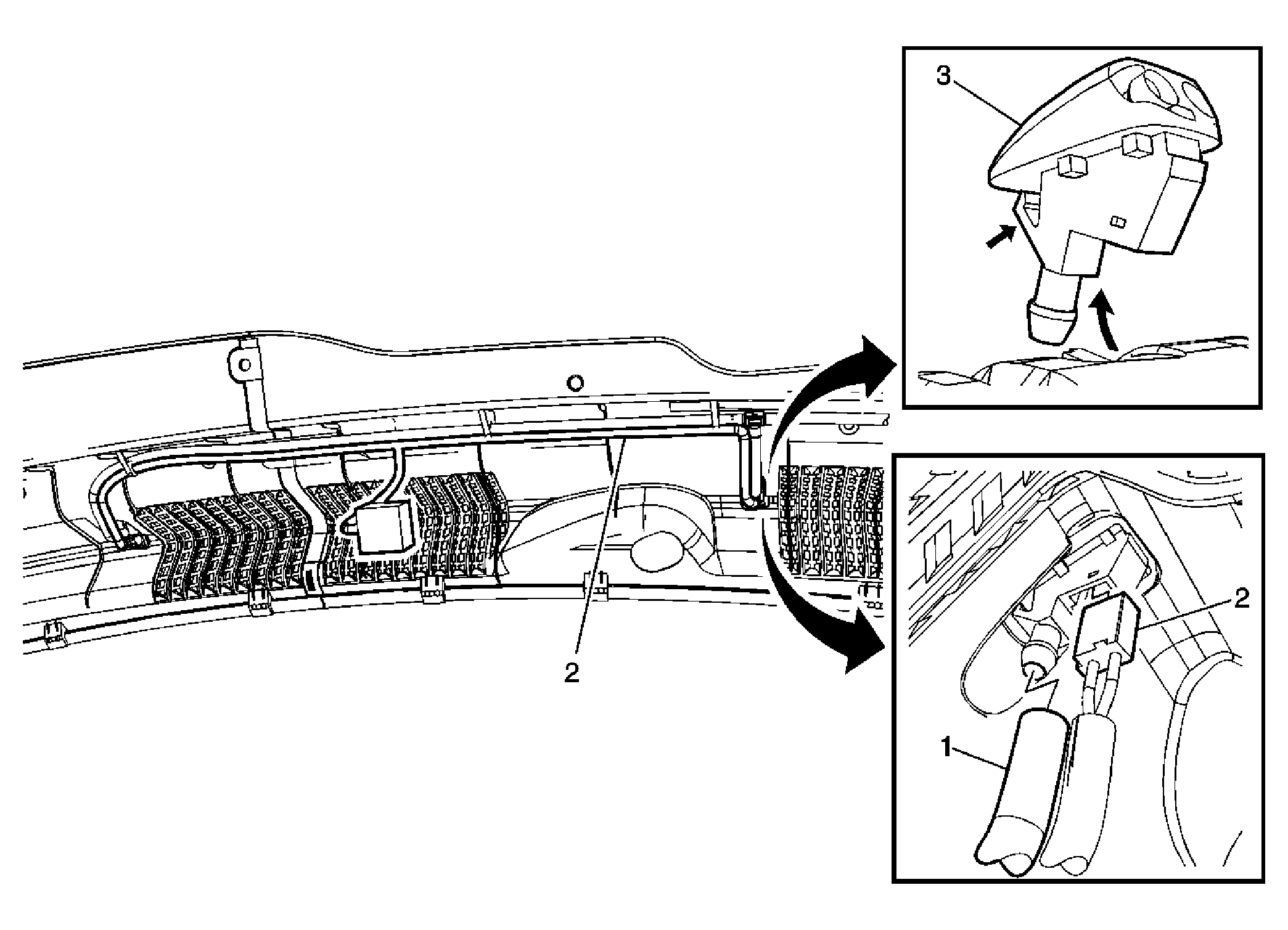

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement . Tip: If only the passenger side heated washer nozzle needs to be replaced, only remove the passenger side air inlet grille. |
|
| 1 | Windshield Washer Nozzle Hose Assembly Tip: Disconnect the washer hose from the heated washer nozzle. |
| 2 | Heated Washer Nozzle Electrical Harness Tip: Disconnect the electrical connection from the heated washer nozzle. |
| 3 | Heated Washer Nozzle Tip: Depress the tab on the heated nozzle and roll the nozzle forward out from the air inlet grille panel. |
