Windshield Washer Nozzle Replacement (VUE)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

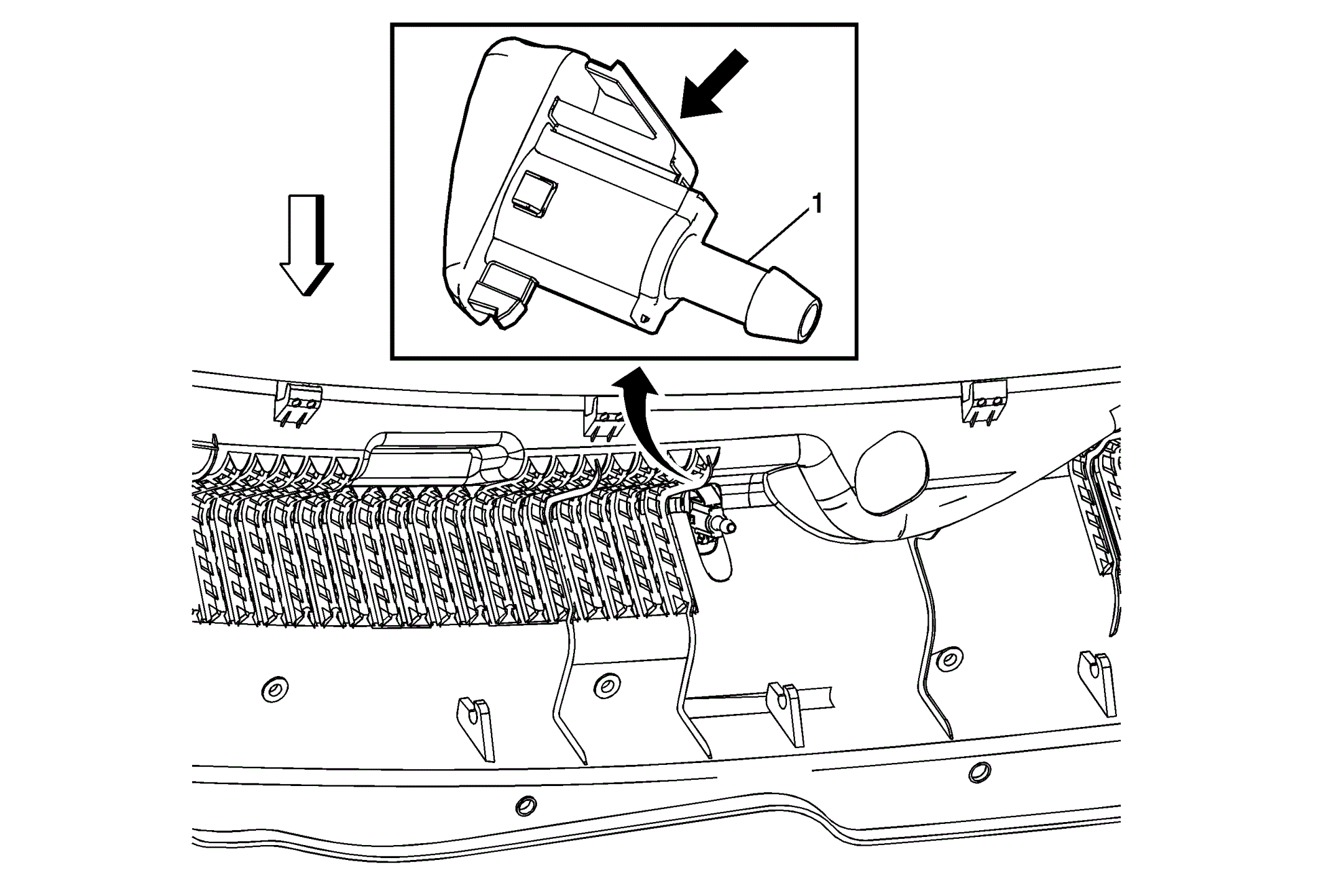

Fig 1: Windshield Washer Nozzle Replacement (VUE)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement . Tip: If only the passenger side washer nozzle needs to be replaced, only remove the passenger side air inlet grille.
1	Windshield Washer Nozzle Assembly Procedure Depress the tab on the nozzle and roll the nozzle forward from the air inlet grille panel. If equipped with heated washer nozzles, disconnect the electrical connector for both washer nozzles.

Callout

Component Name

Preliminary Procedure:
Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
Tip: If only the passenger side washer nozzle needs to be replaced, only remove the passenger side air inlet grille.

Windshield Washer Nozzle Assembly

Procedure

Depress the tab on the nozzle and roll the nozzle forward from the air inlet grille panel.
If equipped with heated washer nozzles, disconnect the electrical connector for both washer nozzles.
