Windshield Washer Hose Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

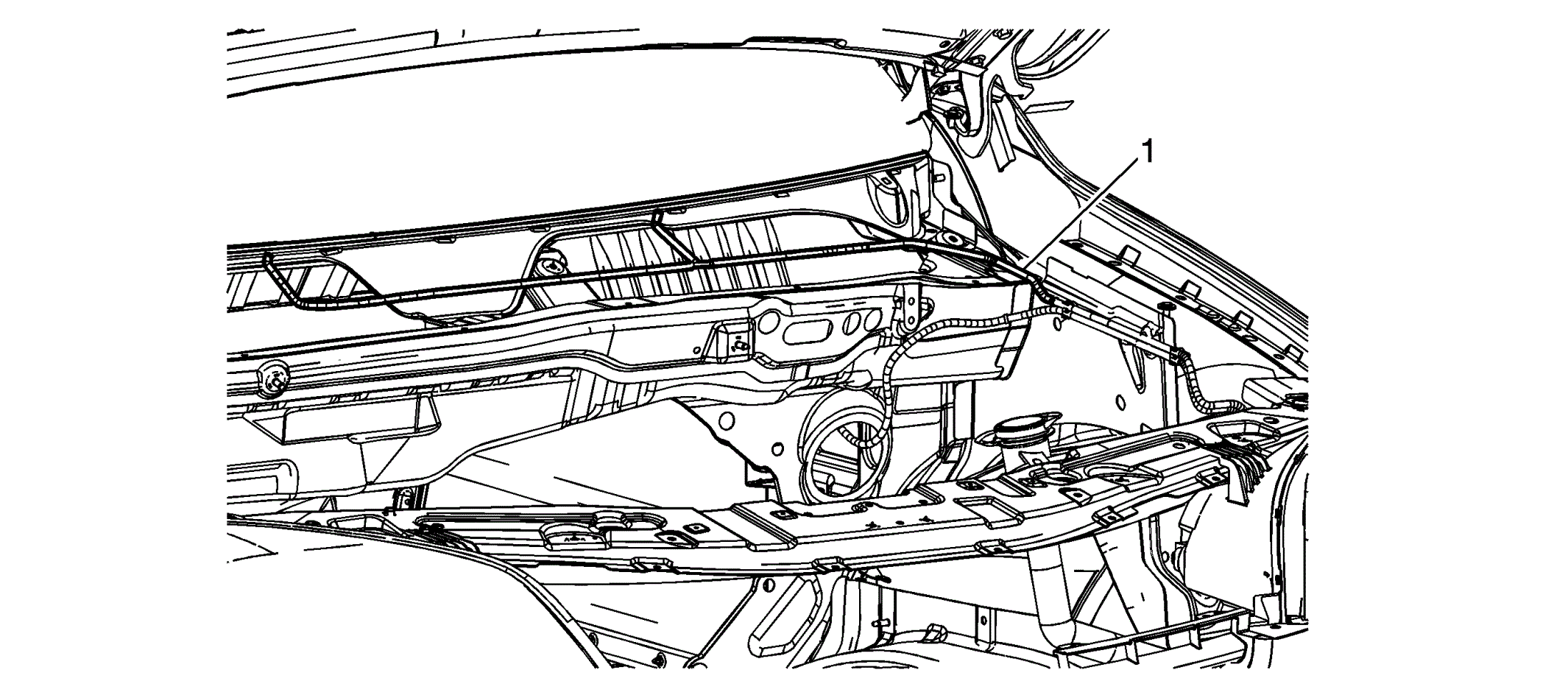

Fig 1: Windshield Washer Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Washer Nozzle Hose Assembly Procedure Disconnect the hose from both washer nozzles. Remove the hose from the retention locations on the underside of the air inlet panel. Ensure when re-installing the washer hose, the hose is properly routed and retained to the air inlet panel.

Callout

Component Name

Preliminary Procedure:
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Windshield Washer Nozzle Hose Assembly

Procedure

Disconnect the hose from both washer nozzles.
Remove the hose from the retention locations on the underside of the air inlet panel.
Ensure when re-installing the washer hose, the hose is properly routed and retained to the air inlet panel.
