Air Inlet Grille Panel Side Seal Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

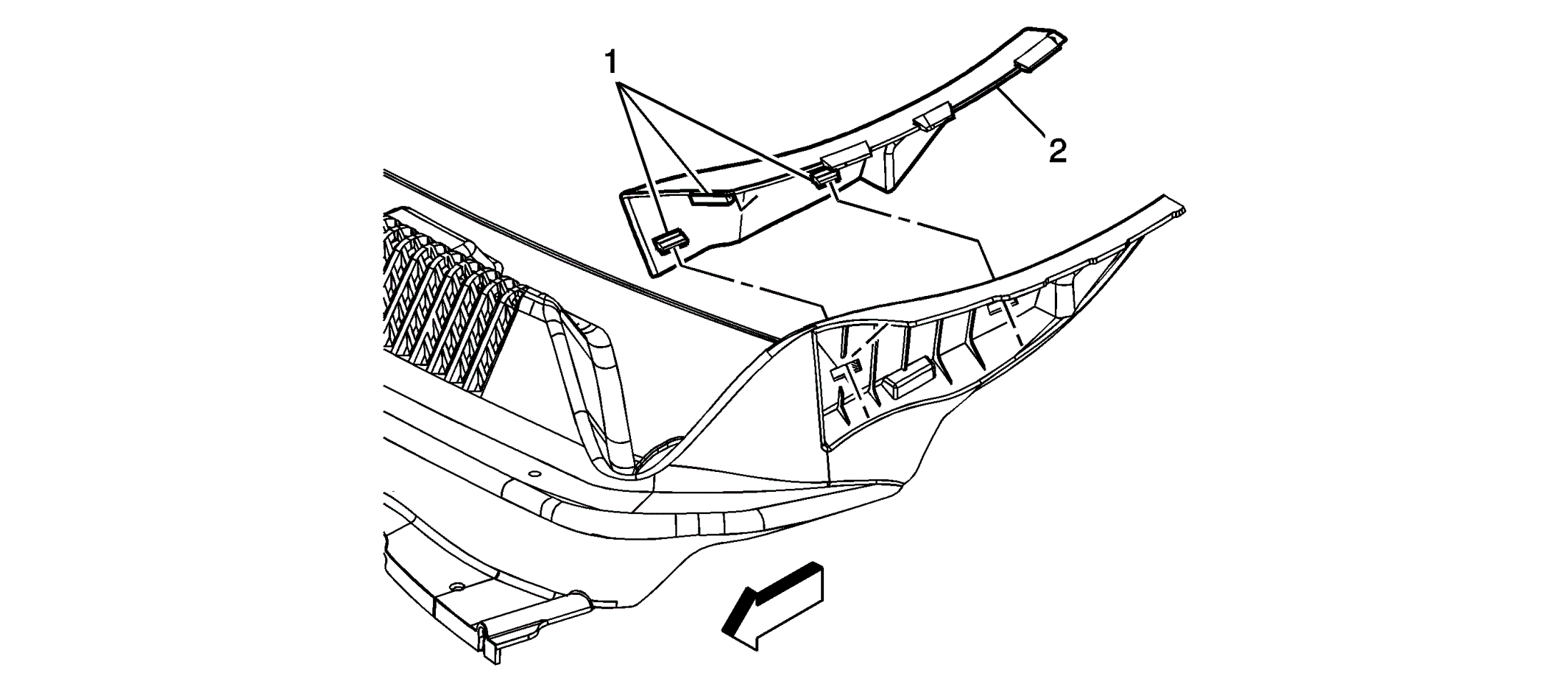

Fig 1: Air Inlet Grille Panel Side Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open the hood in order to access the air inlet grille panel side seal.
1	Air Inlet Grille Panel Side Seal Tabs Procedure Release the tabs securing the air inlet grille panel side seal to the air inlet grille panel assembly. Remove the upper edge of the seal from under the top of the fender flange.
2	Air Inlet Grille Panel Side Seal

Callout

Component Name

Preliminary Procedure:
Open the hood in order to access the air inlet grille panel side seal.

Air Inlet Grille Panel Side Seal Tabs

Procedure

Release the tabs securing the air inlet grille panel side seal to the air inlet grille panel assembly.
Remove the upper edge of the seal from under the top of the fender flange.

Air Inlet Grille Panel Side Seal
