Wiper Blade Element Check

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

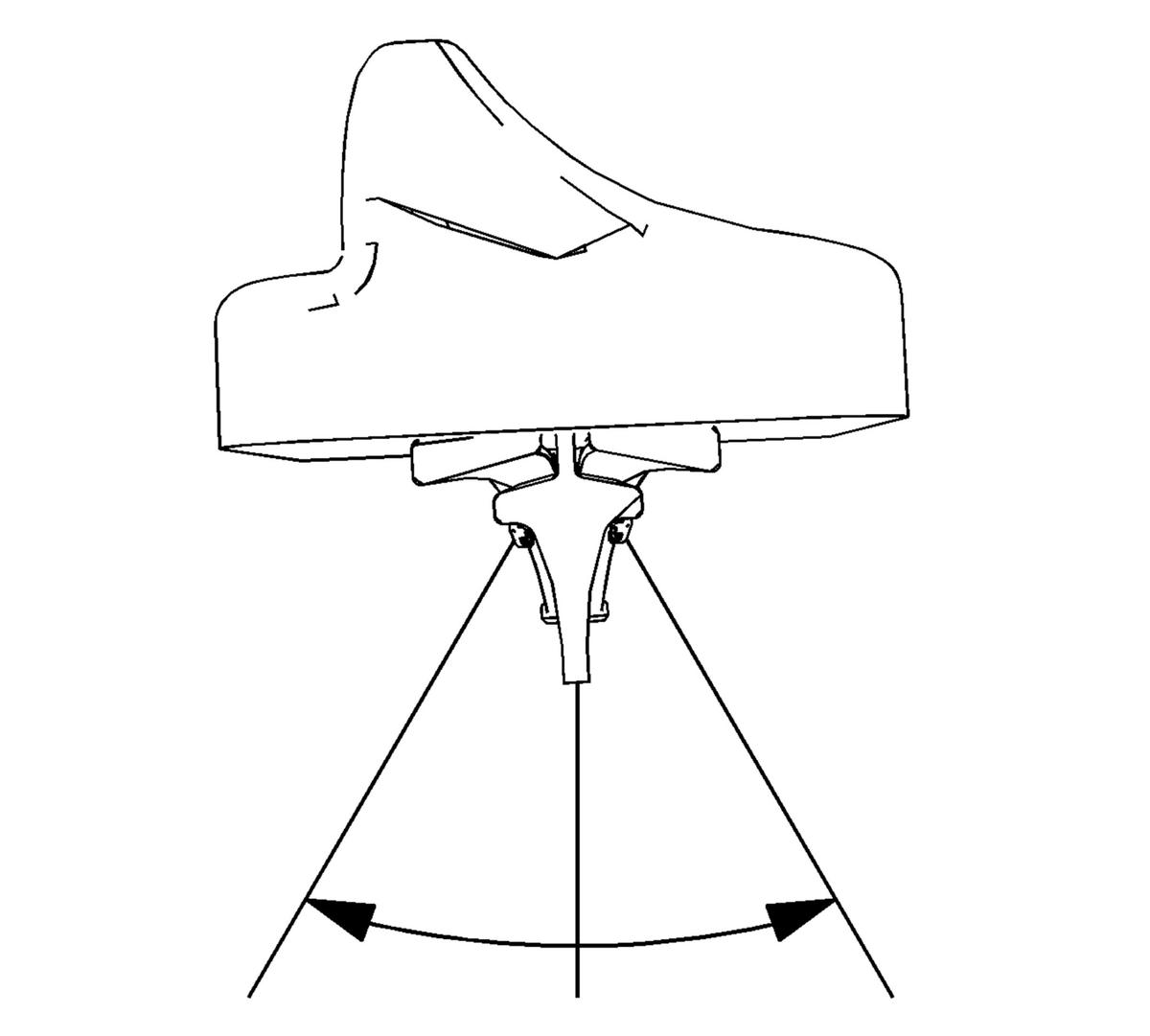

    Fig 1: Identifying Wiper Blade Element
    GM1582942Courtesy of GENERAL MOTORS CORP.
  1. Remove the wiper blades from the wiper arms. Refer to Windshield Wiper Blade Replacement .
  2. Look down the length of the blade element.
  3. Replace the wiper blade element if the rubber element which contacts the glass is not on the centerline of the blade +/-15 degrees.
  4. Install the wiper blades on the wiper arms. Refer to Windshield Wiper Blade Replacement .
