Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

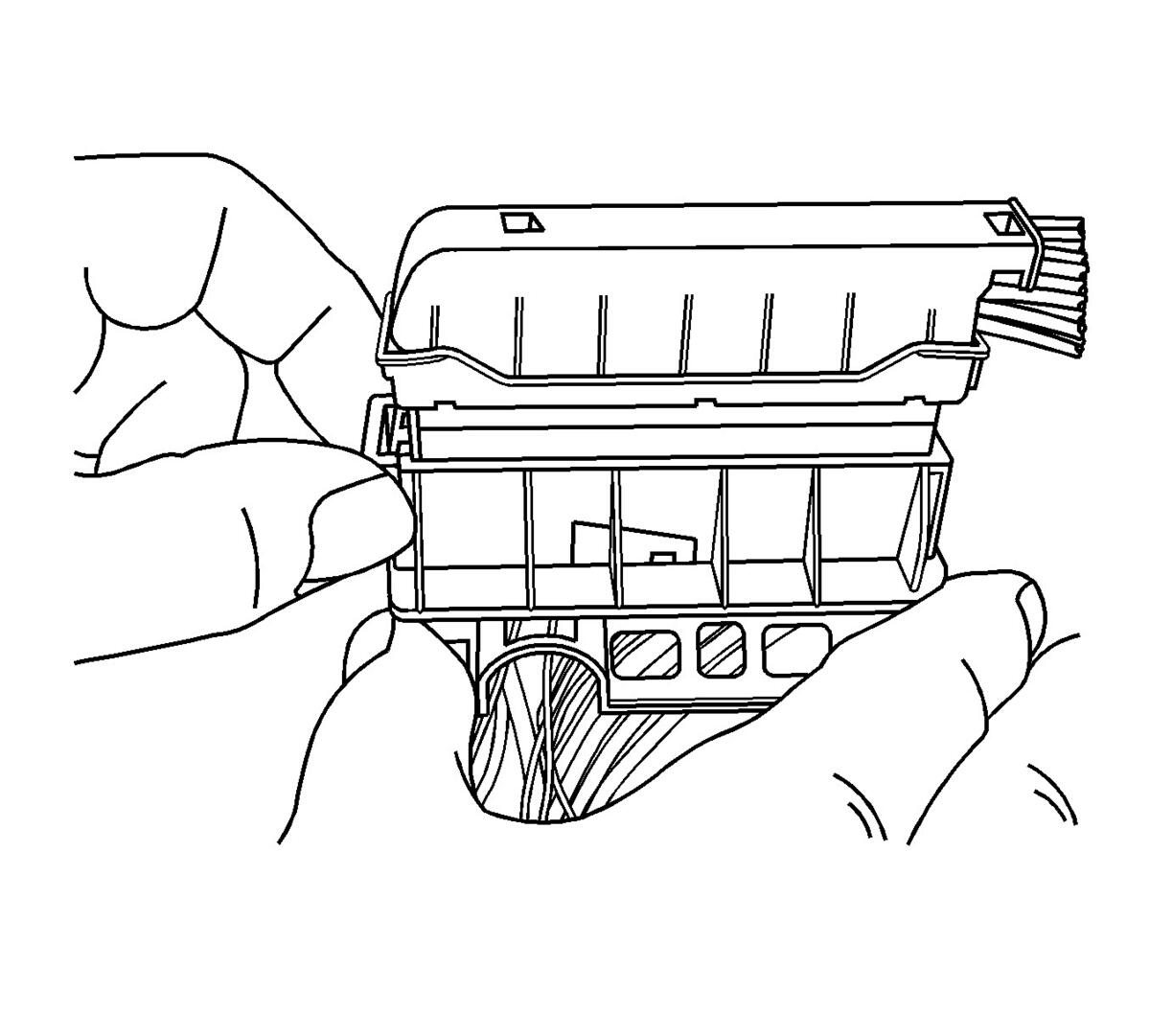

    Fig 1: Locating Locking Slide Lever
    GM2146421Courtesy of GENERAL MOTORS CORP.
  1. Grasp the locking slide lever and pull outward from the end of the connector.

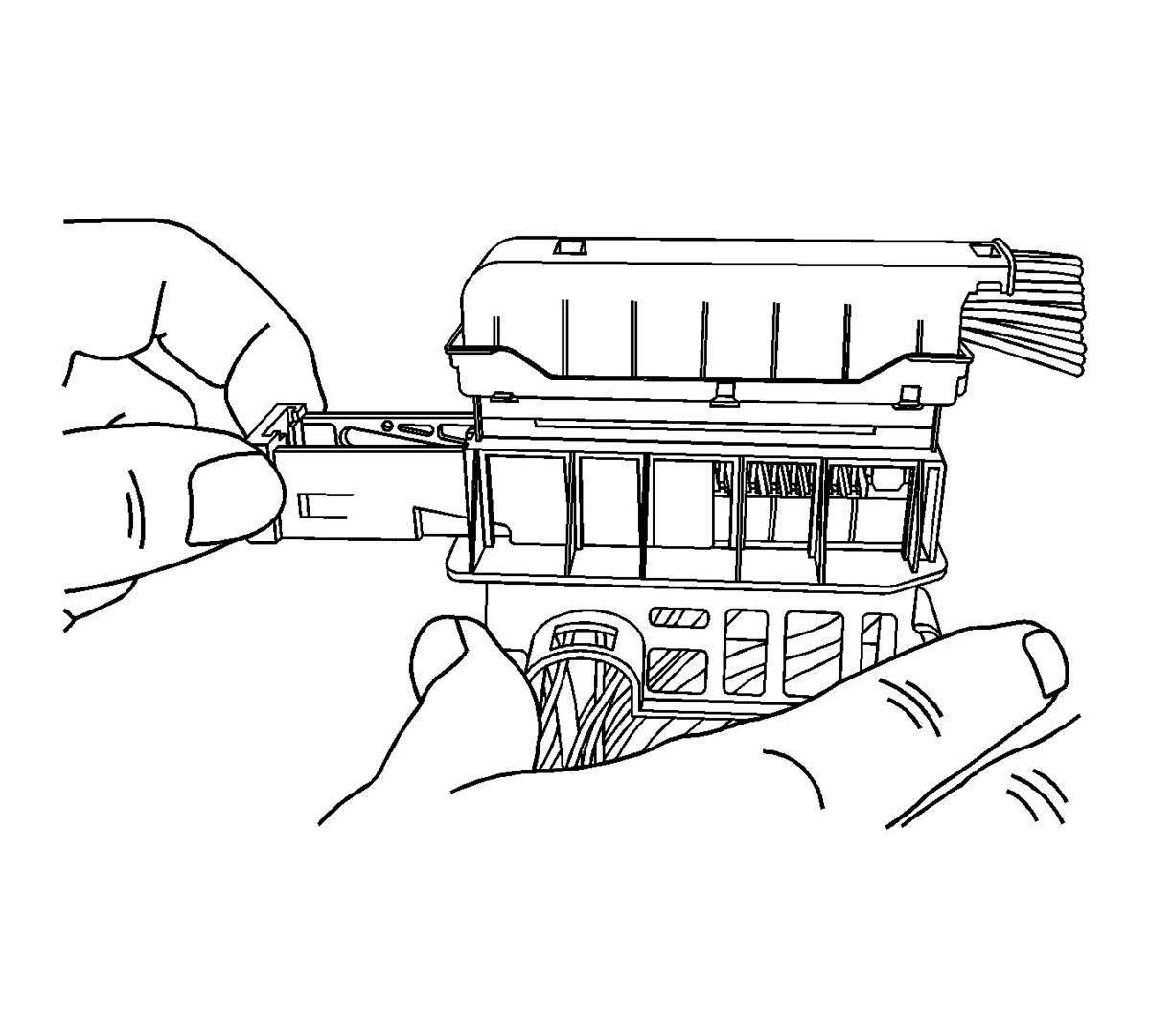

    2. Fig 2: Pulling Slide Lever Out Of Mating Connector
    GM2146422Courtesy of GENERAL MOTORS CORP.
  2. As the slide lever is pulled out the mating connector is lifted from the seated position.

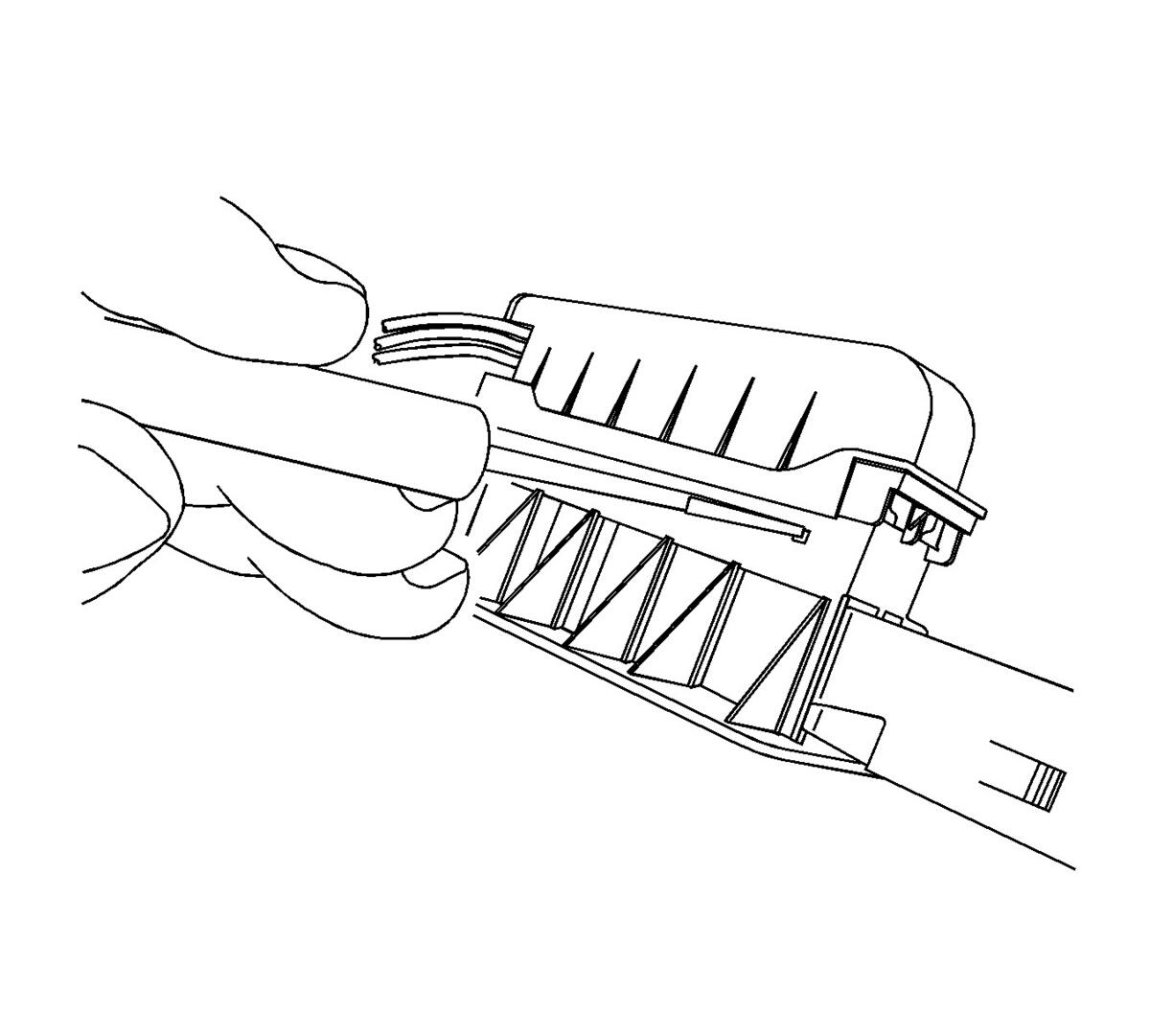

    3. Fig 3: Pushing TPA Tabs Into Connector Body
    GM2146424Courtesy of GENERAL MOTORS CORP.
    NOTE: TPA is keyed and can only be inserted in one direction.
  3. Using terminal release tool J 38125-11A or equivalent, push the TPA tabs into the connector body.

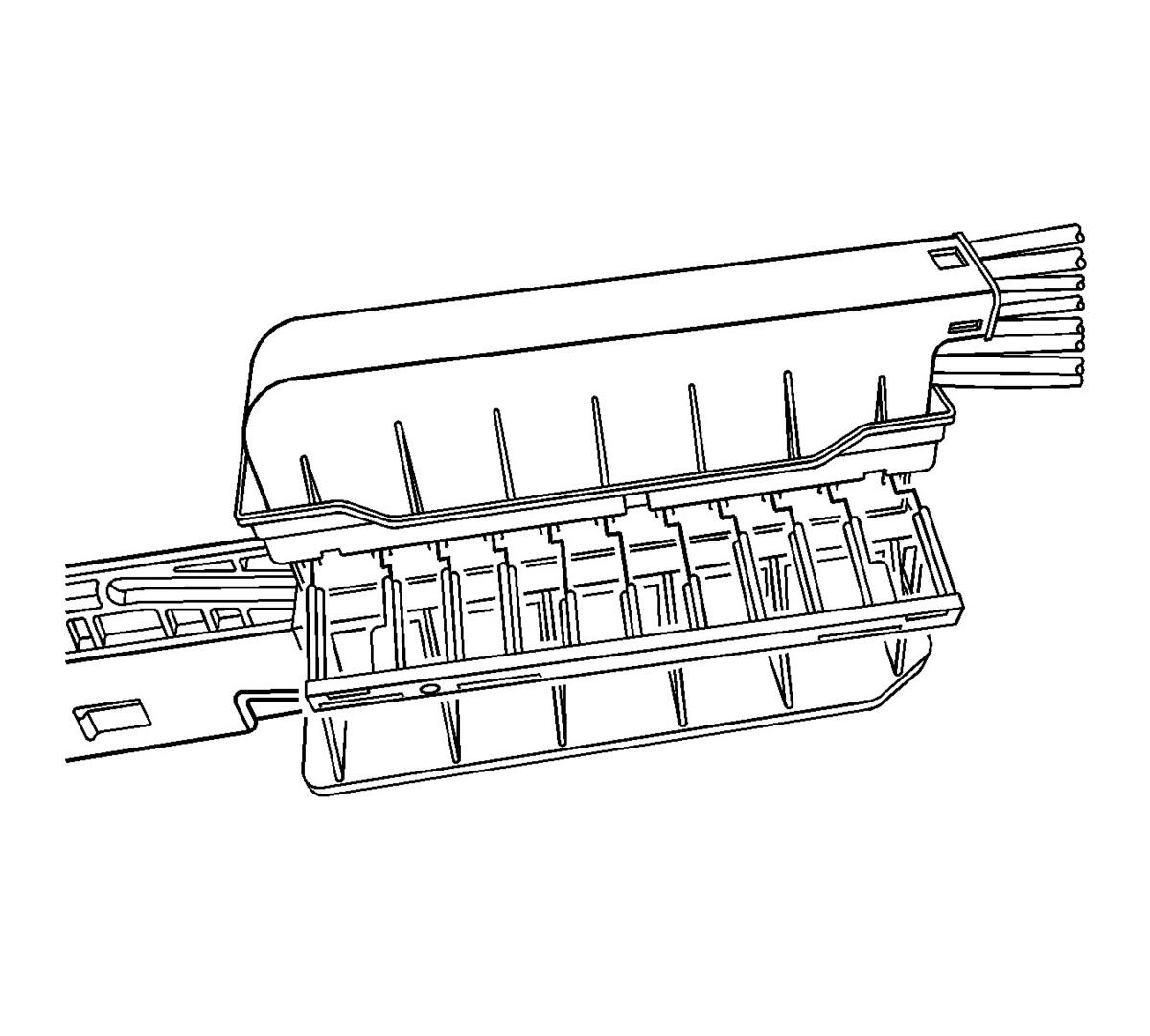

    4. Fig 4: Pulling TPA From Connector Body
    GM2146425Courtesy of GENERAL MOTORS CORP.
  4. Pull the TPA from the connector body.

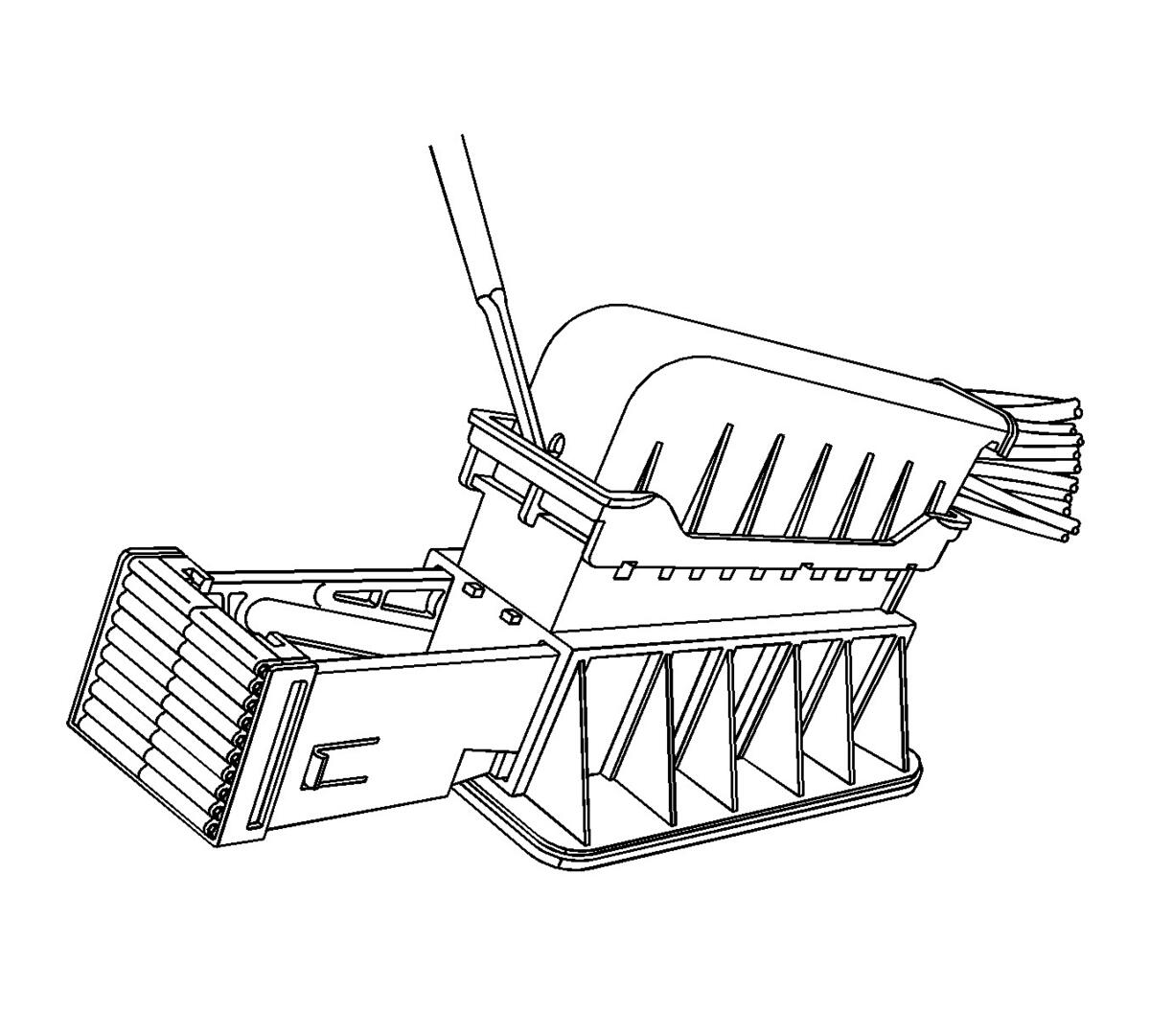

    5. Fig 5: Releasing Connector Wire Dress Cover Locking Tab
    GM2146426Courtesy of GENERAL MOTORS CORP.
  5. Using terminal release tool J 38125-11A or equivalent, release the connector wire dress cover locking tab.

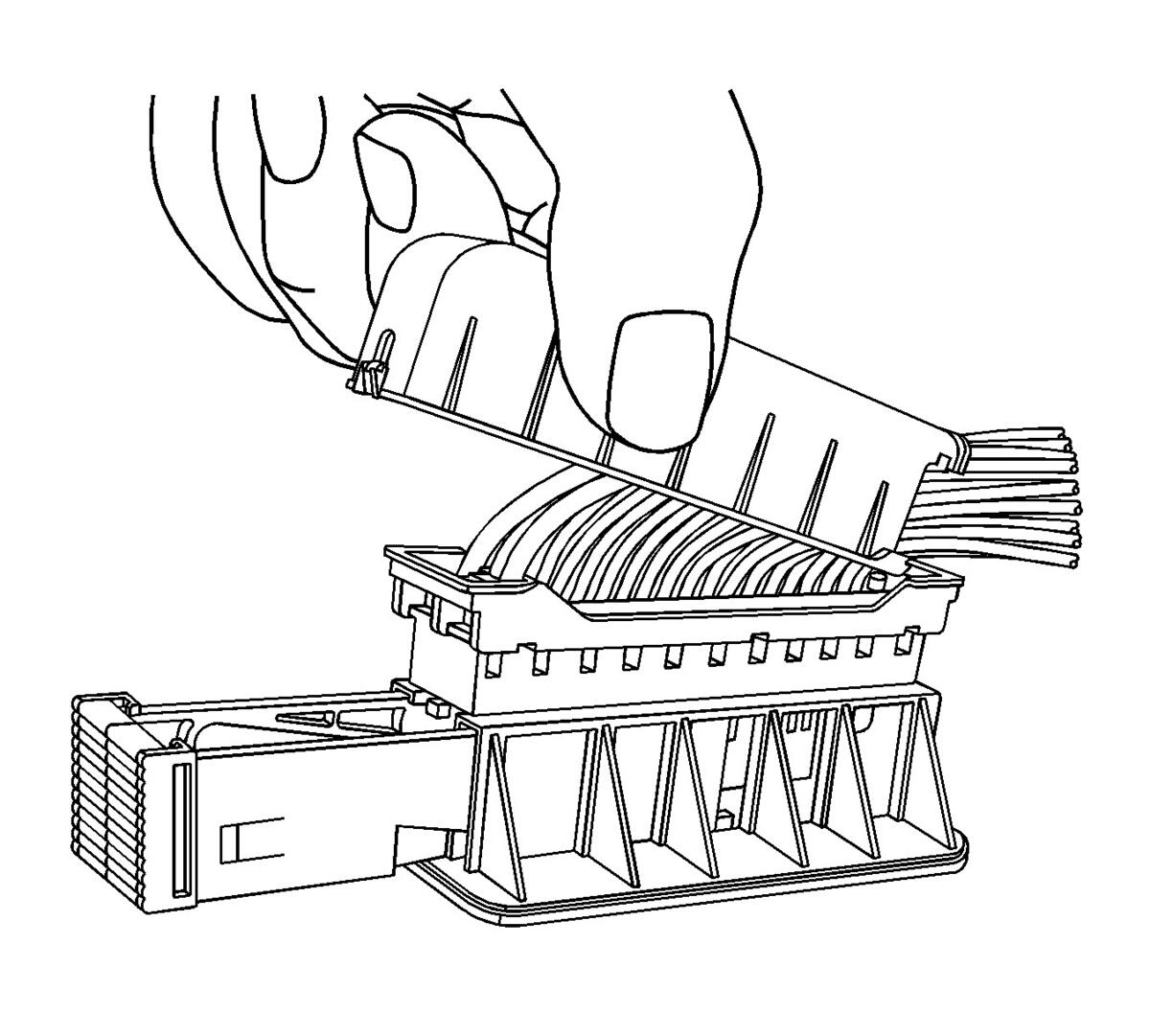

    6. Fig 6: Lifting Connector Wire Dress Cover From Connector Body
    GM2146427Courtesy of GENERAL MOTORS CORP.
  6. With the lock tab released, lift the connector wire dress cover from the connector body.

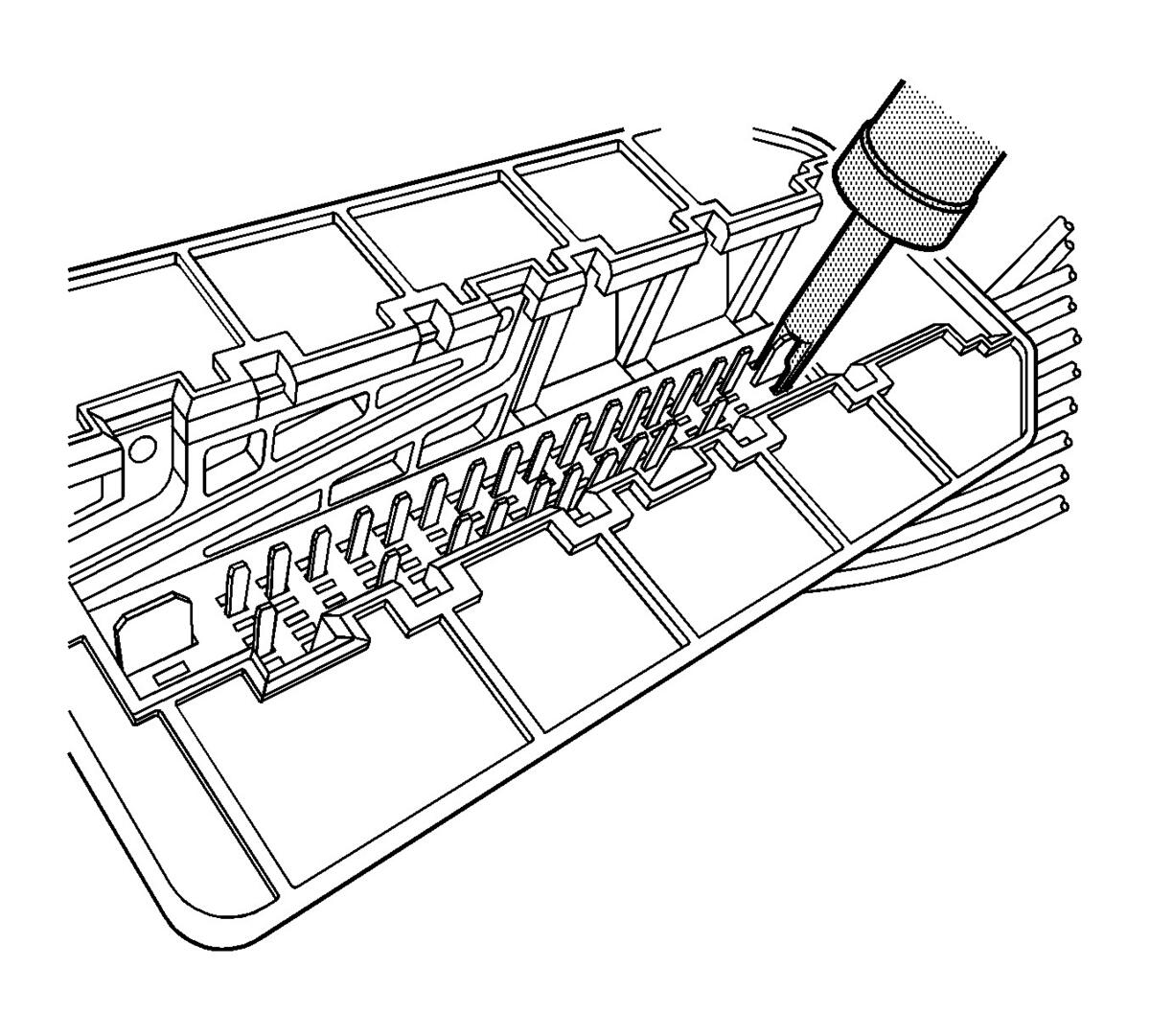

    7. Fig 7: Pressing Prongs Into Holes On Side Of Terminal
    GM2146428Courtesy of GENERAL MOTORS CORP.
  7. Using terminal release tool J 38125-212, press the prongs into the holes each side of the terminal to be removed to release the lock tabs and pull the terminal out of the connector body.

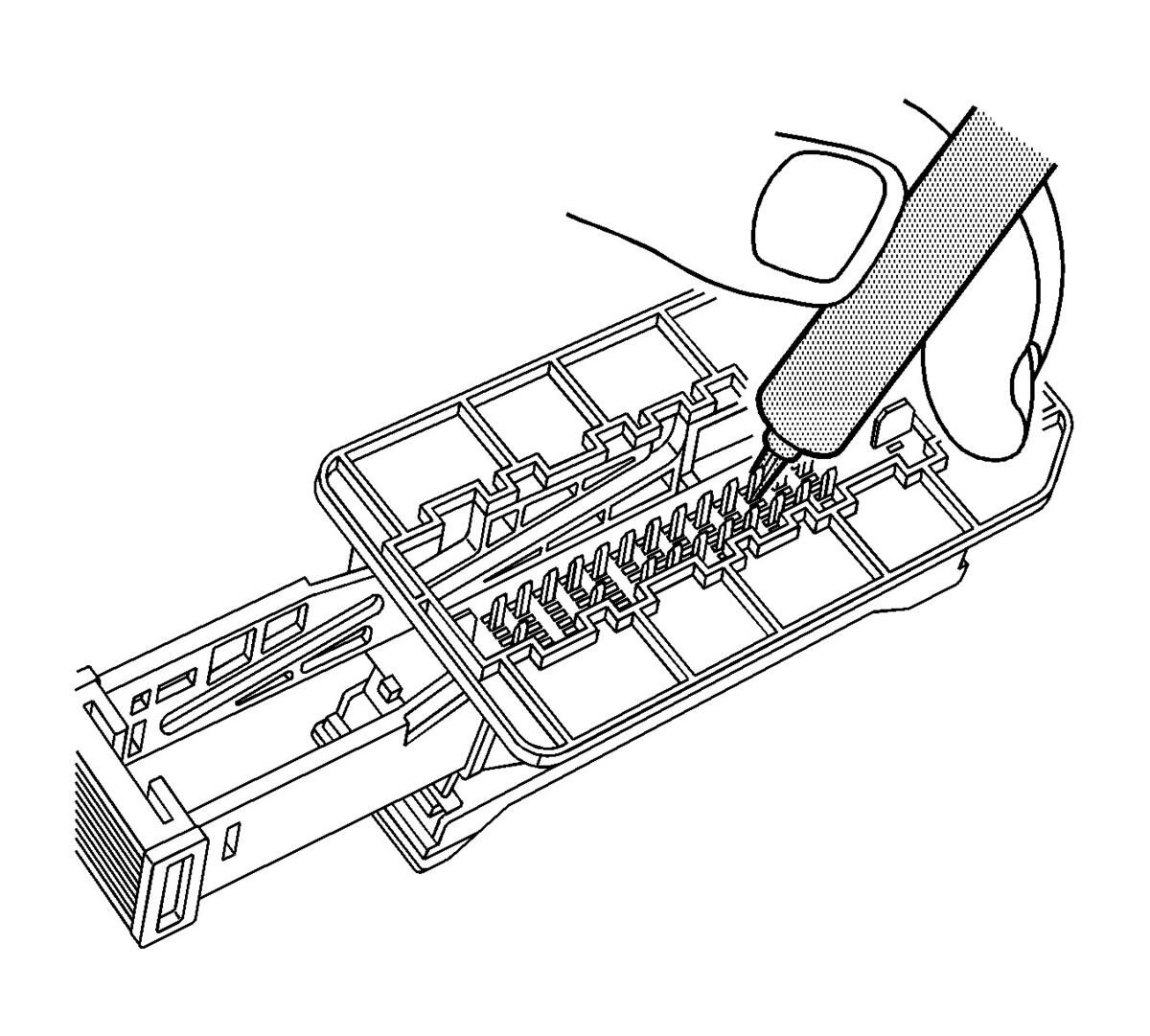

    8. Fig 8: Pressing Prongs Into Holes On Side Of Terminal
    GM2146429Courtesy of GENERAL MOTORS CORP.
  8. Using terminal release tool J 38125-560, press the prongs into the holes on each side of the terminal to be removed to release the lock tabs and pull the terminal out of the connector body.

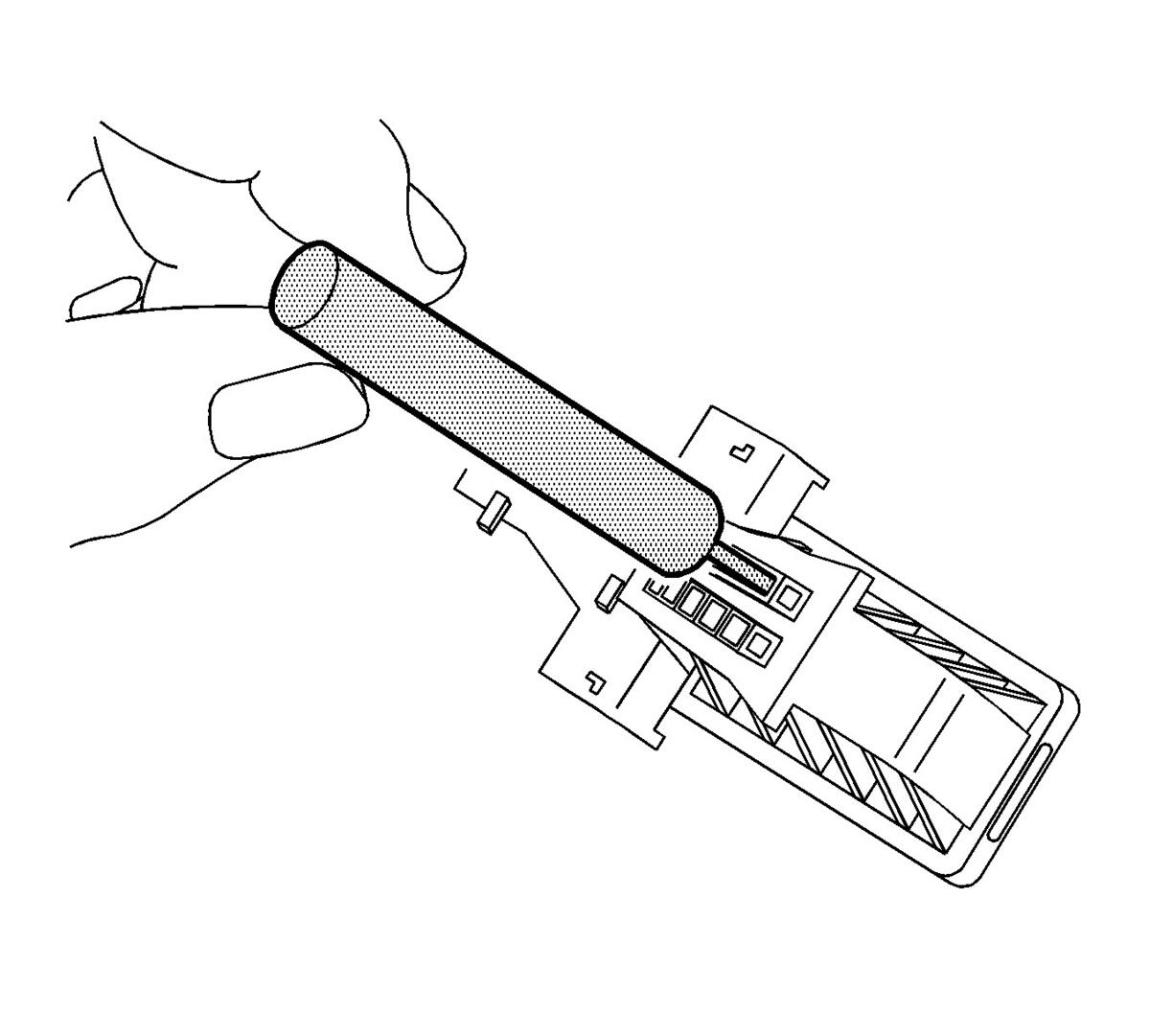

    9. Fig 9: Using Terminal Release Tool J-38125-556
    GM2146430Courtesy of GENERAL MOTORS CORP.
  9. Using terminal release tool J 38125-556, press the prongs into the holes on each side of the terminal to be removed to release the lock tabs and pull the terminal out of the connector body.
