Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

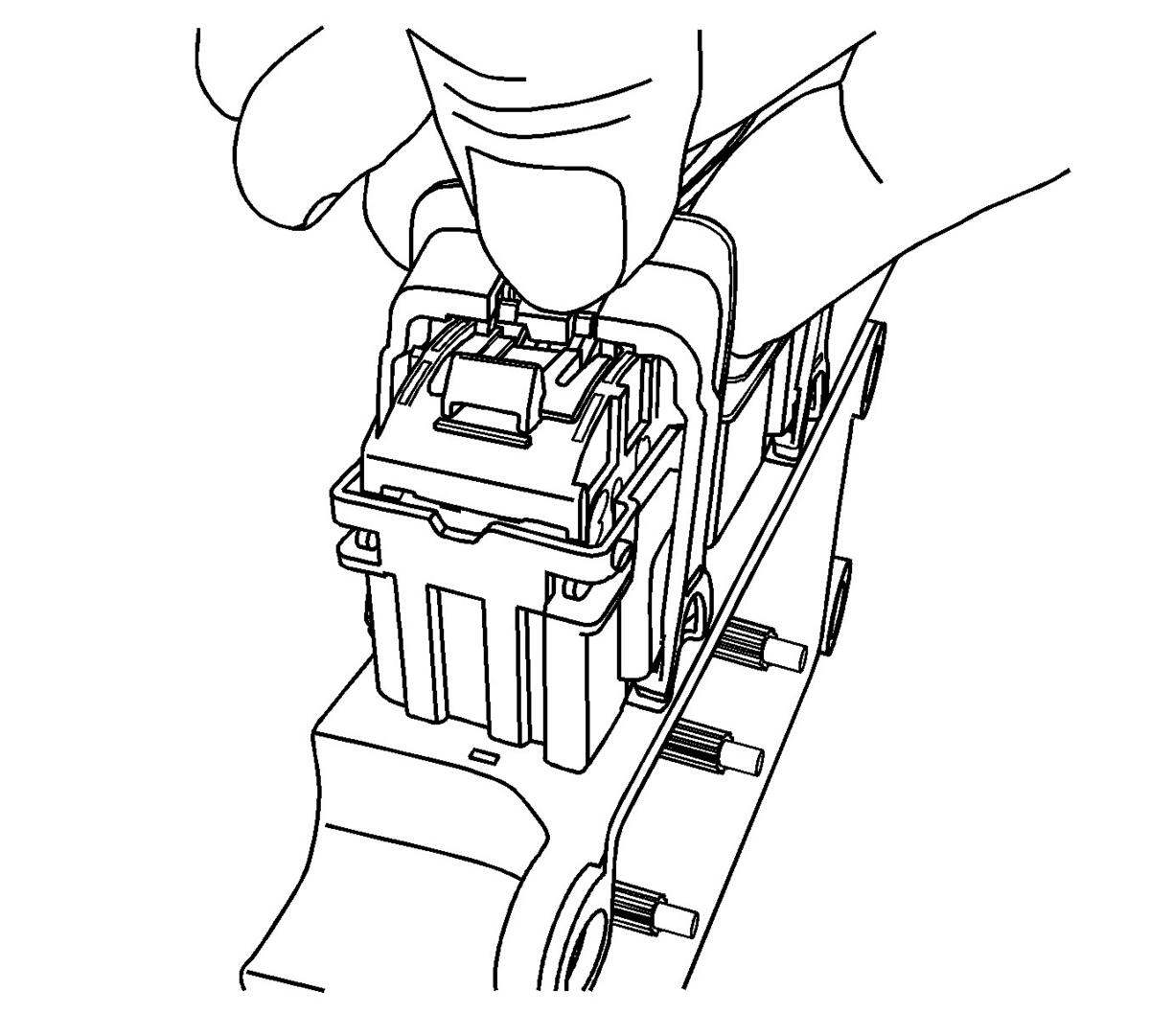

Fig 1: Sliding Red CPA Away From Connector Lever

Courtesy of GENERAL MOTORS CORP.

Using your thumbs press down and slide the red CPA away from the connector lever.

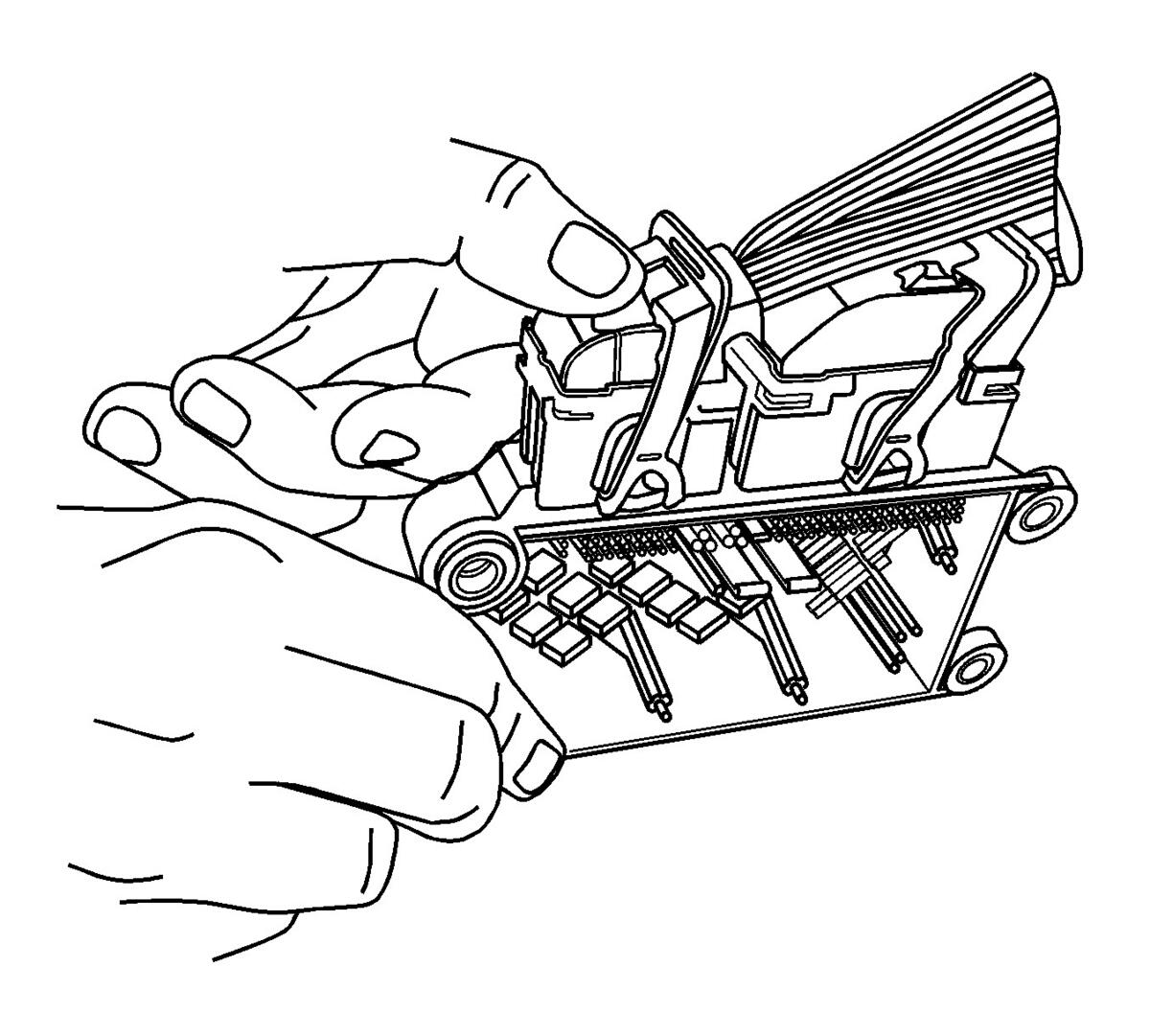

Fig 2: Moving Lever To Released Position

Courtesy of GENERAL MOTORS CORP.

Using your thumb press down on the locking tab and move the lever to the released position.

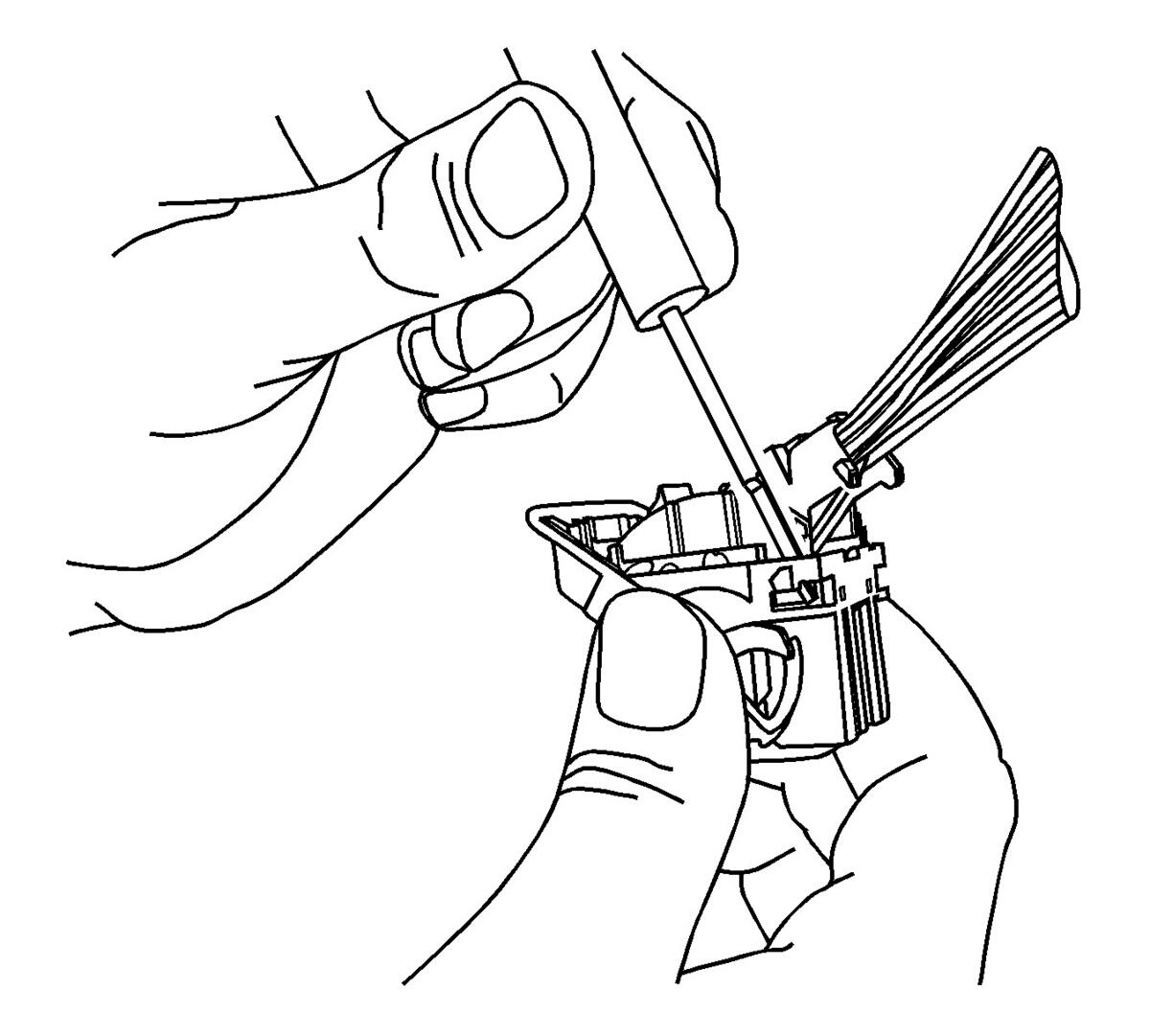

Fig 3: Releasing Wire Dress Cover Locking Tabs

Courtesy of GENERAL MOTORS CORP.

Using terminal tool J-38125-11A or equivalent, release the wire dress cover locking tabs.

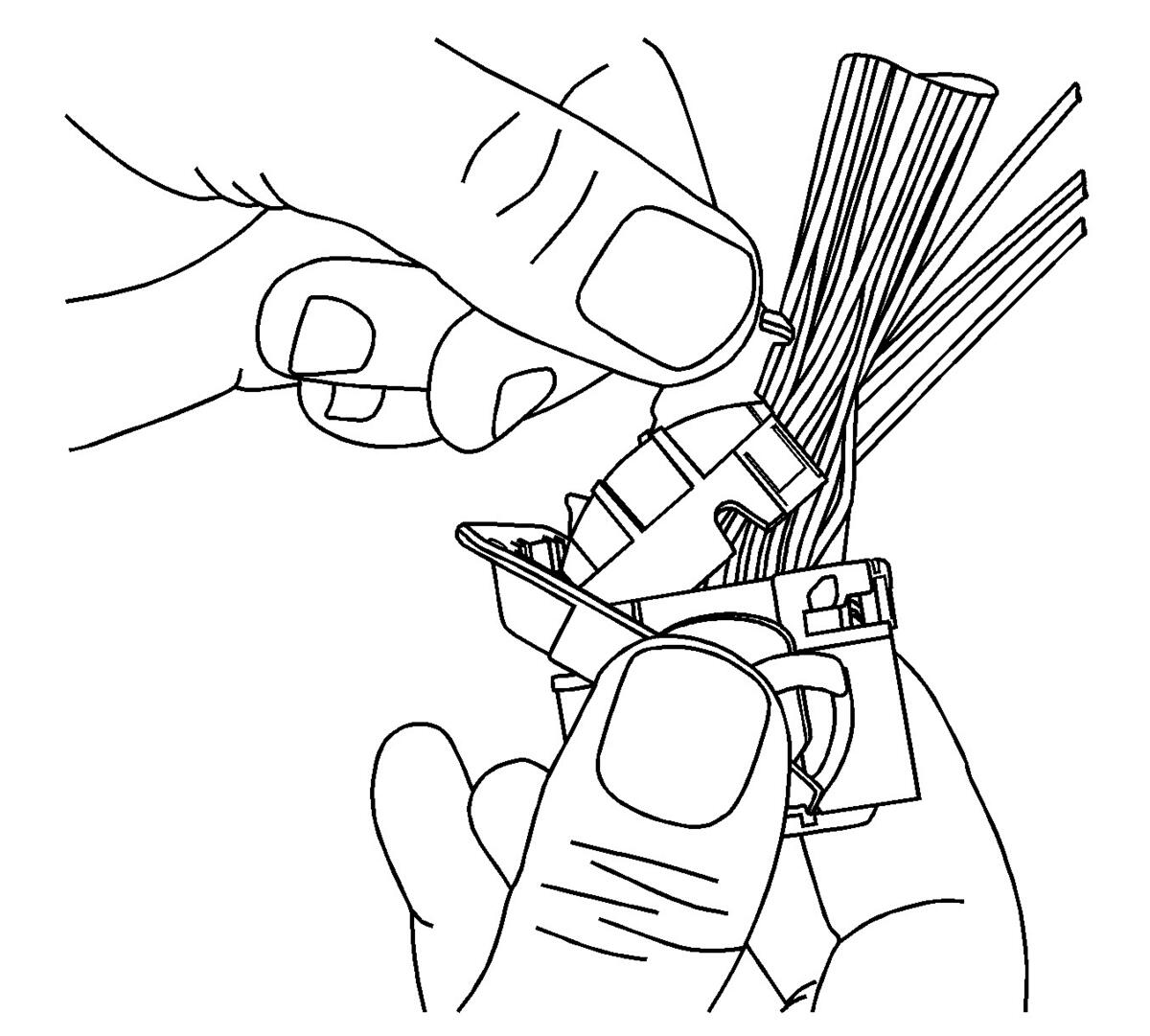

Fig 4: Pivoting Connector Wire Dress Cover

Courtesy of GENERAL MOTORS CORP.

Pivot connector wire dress cover while removing from the connector body.

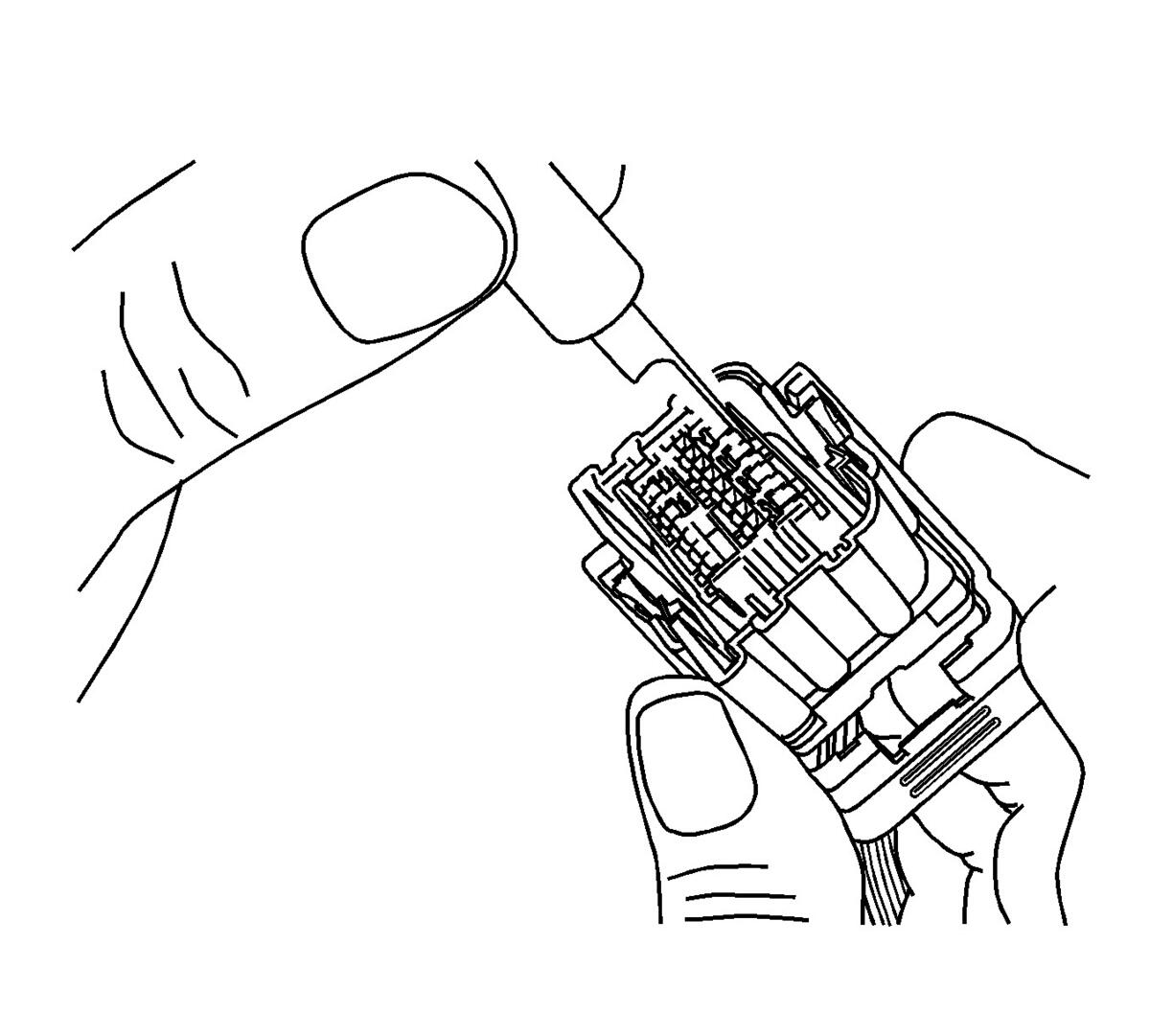

Fig 5: Removing TPA

Courtesy of GENERAL MOTORS CORP.

Using terminal tool J-38125-11A or equivalent, remove the TPA by lifting straight off the connector body.

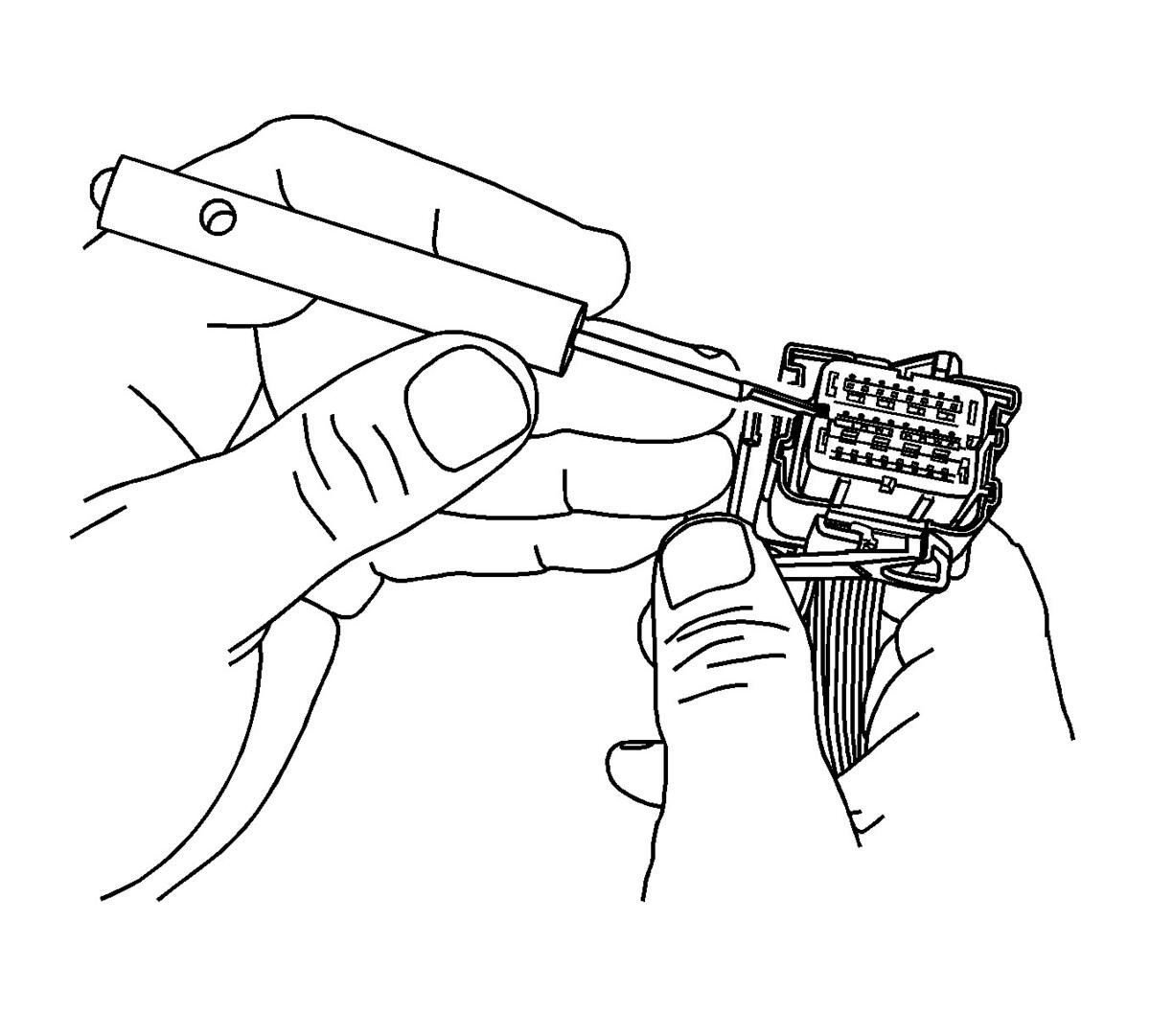

Fig 6: Removing Rear Of Connector Body

Courtesy of GENERAL MOTORS CORP.

Using terminal release tool J-38125-215A, place the tip of the tool on the outside edge next to the terminal and depress the lock tab and remove the rear of the connector body.
