Terminal Replacement Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

After the terminal is crimped to the wire, perform the following procedure in order to replace the terminal.

Slide the new terminal into the correct cavity at the back of the connector.
Push the terminal into the connector until it locks into place. The new terminal should be even with the other terminals. Ensure that the terminal is locked in place by gently pulling on the wire.

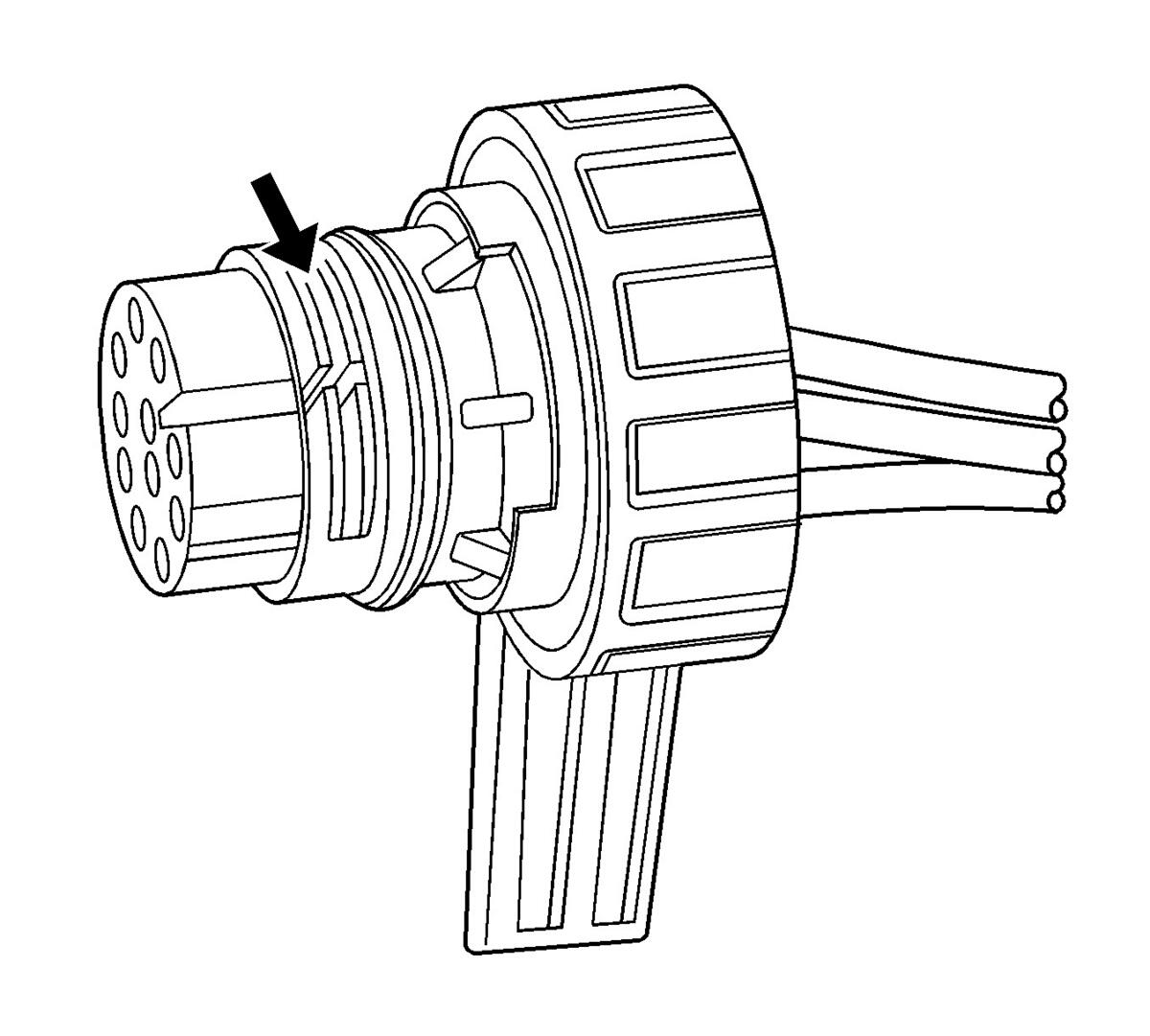

Fig 1: Locating Terminal Position Assurance (TPA)

Courtesy of GENERAL MOTORS CORP.

Locate the terminal position assurance (TPA).

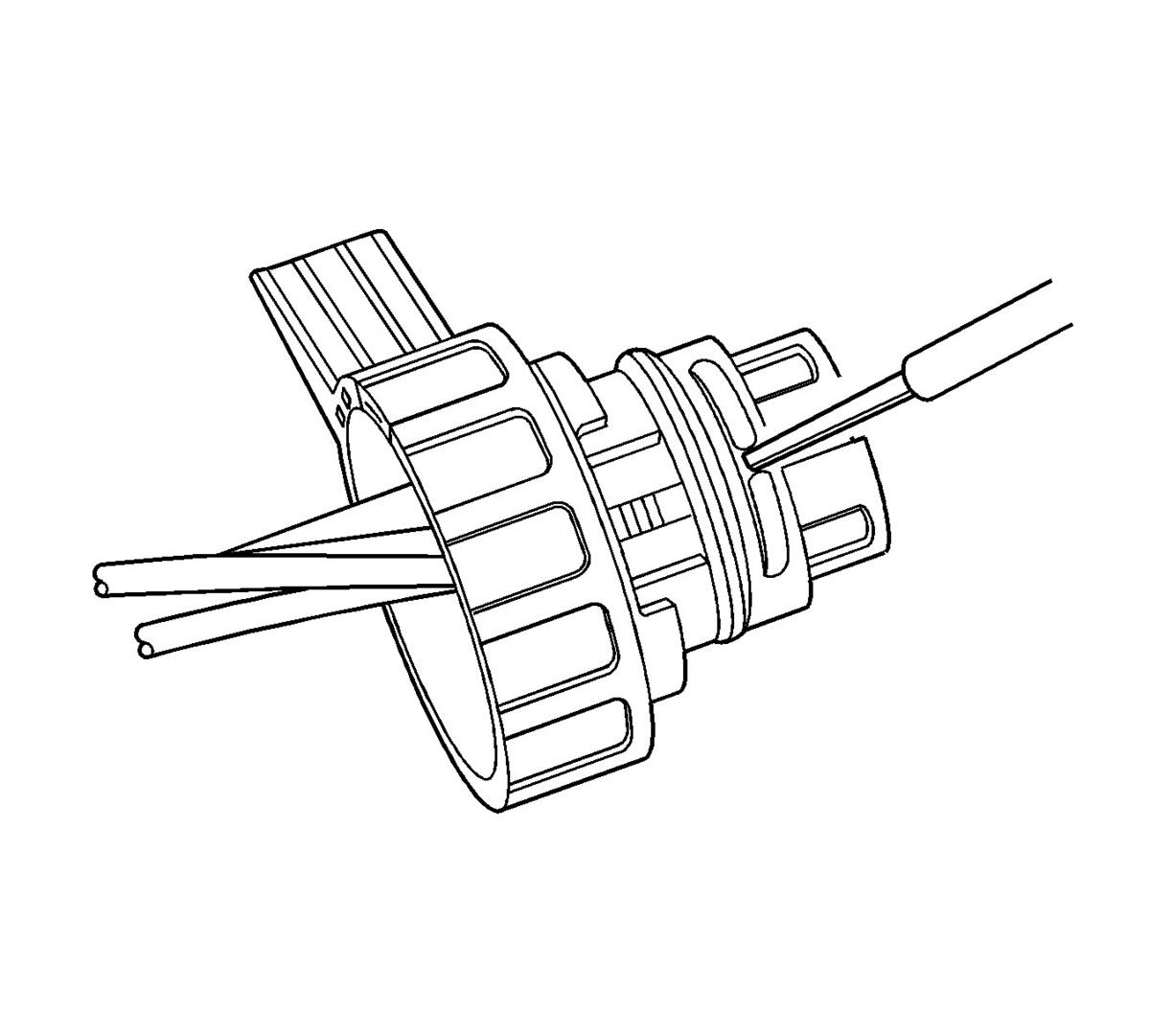

Fig 2: View Of TPA & Flat-Bladed Tool

Courtesy of GENERAL MOTORS CORP.

Use a small flat-blade tool to push the TPA until it bottoms out.

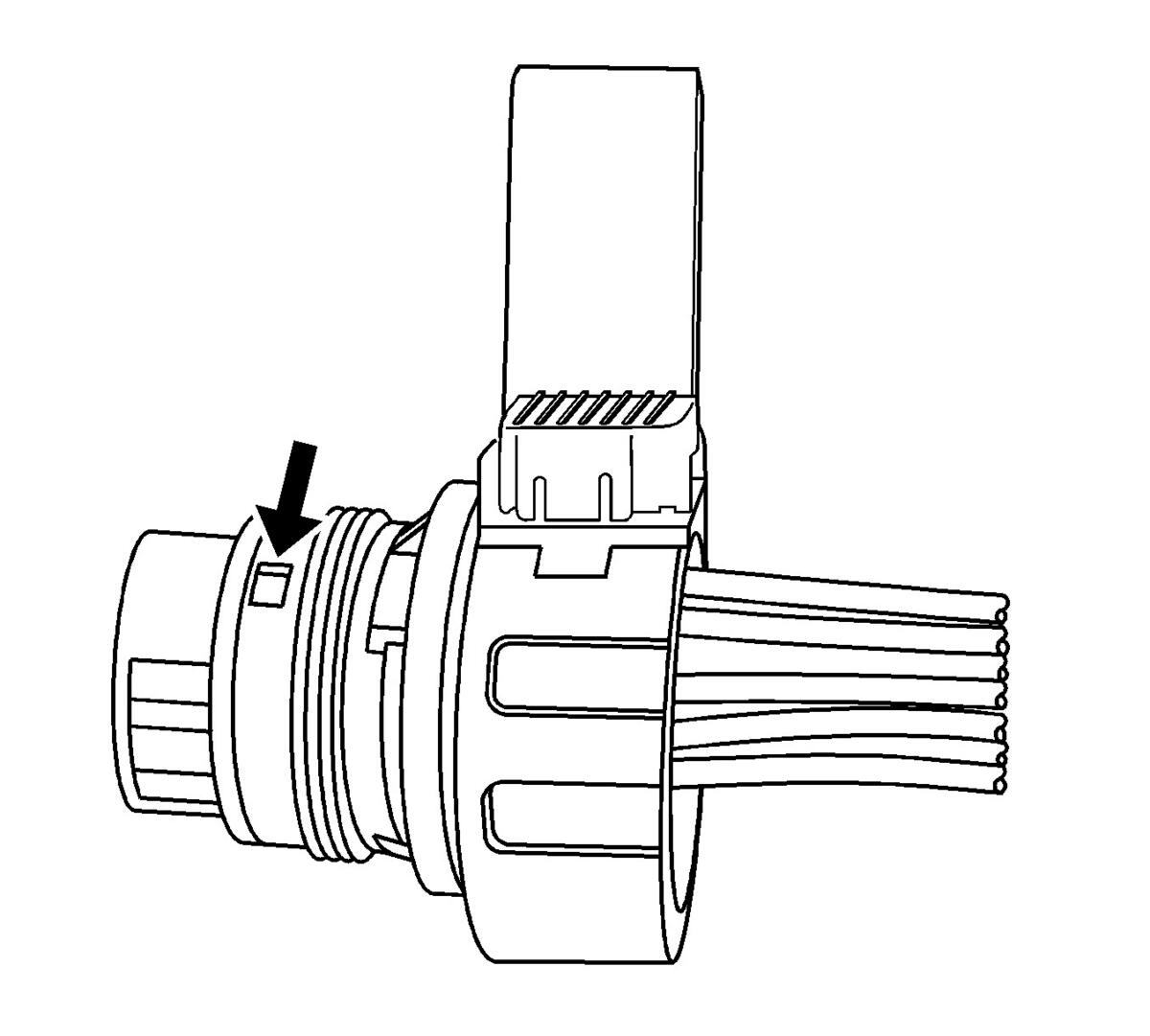

Fig 3: View Of Terminal Position Assurance (TPA)

Courtesy of GENERAL MOTORS CORP.

Ensure the TPA is fully seated. The TPA should be centered and flush with the connector body when viewed.
