Starting and Charging Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

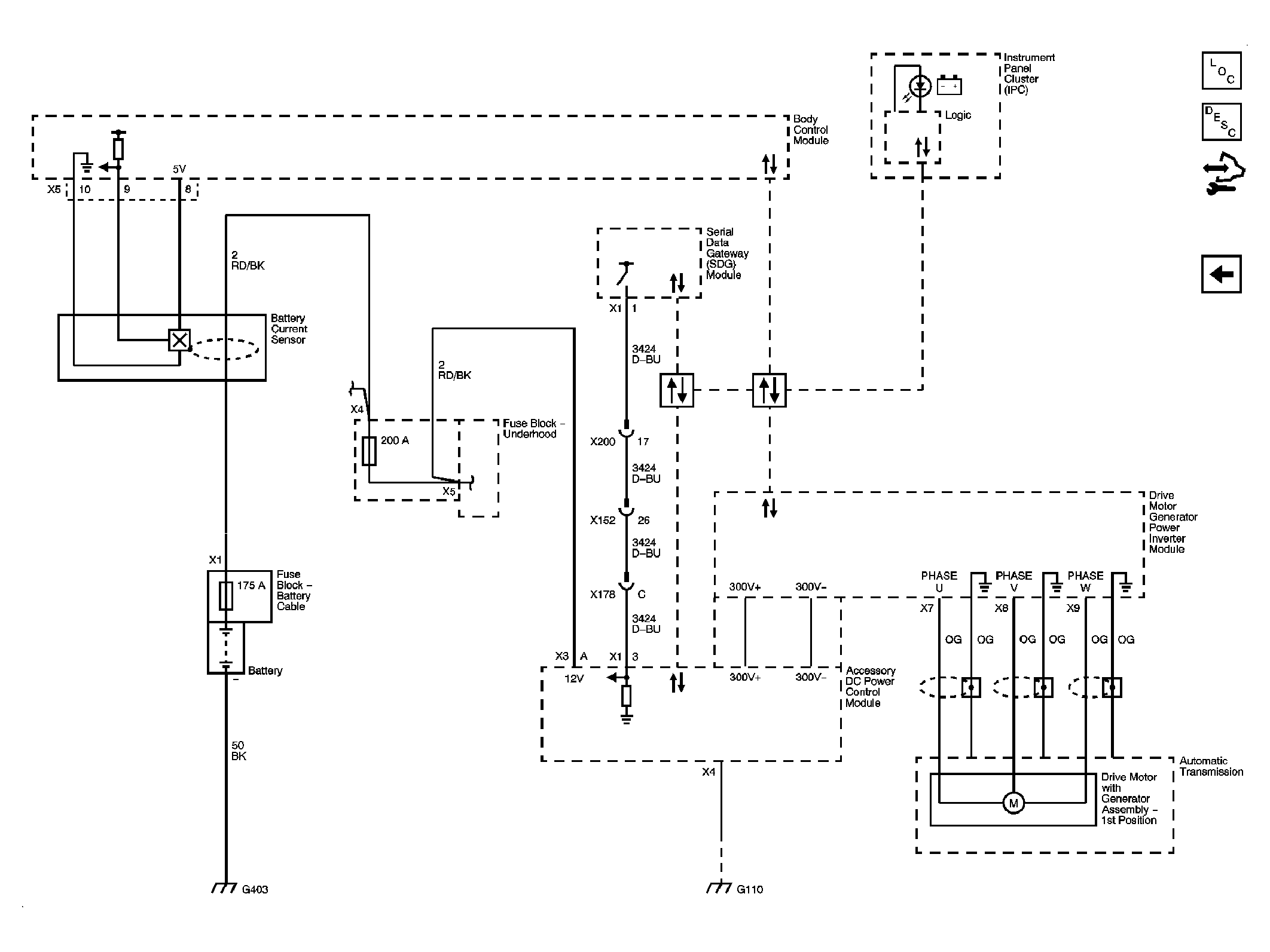

Fig 1: Charging (HP5) (12 Volt)
GM2148612Courtesy of GENERAL MOTORS CORP.

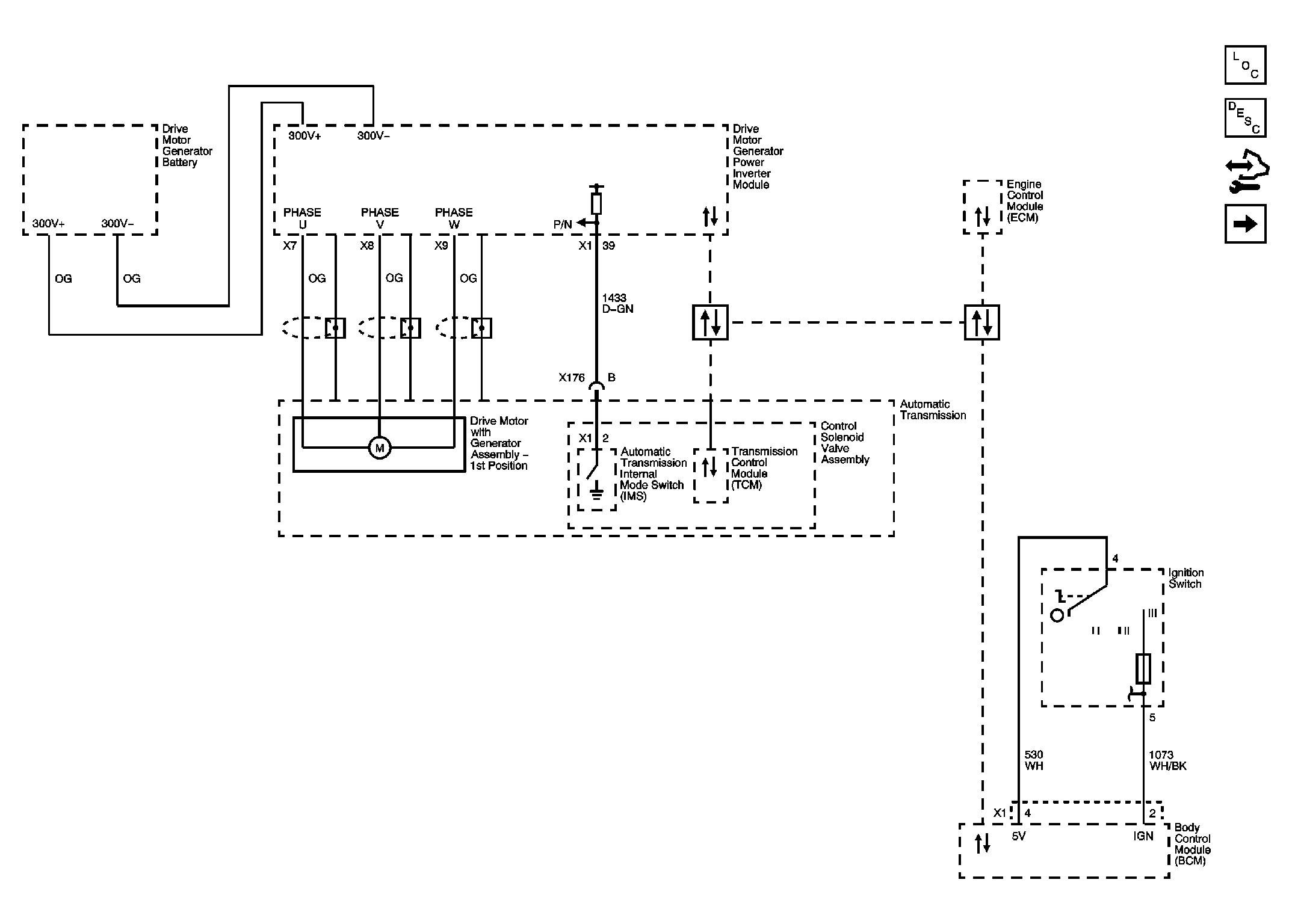

Fig 2: Starting Hybrid (HP5)
GM2148608Courtesy of GENERAL MOTORS CORP.
