Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

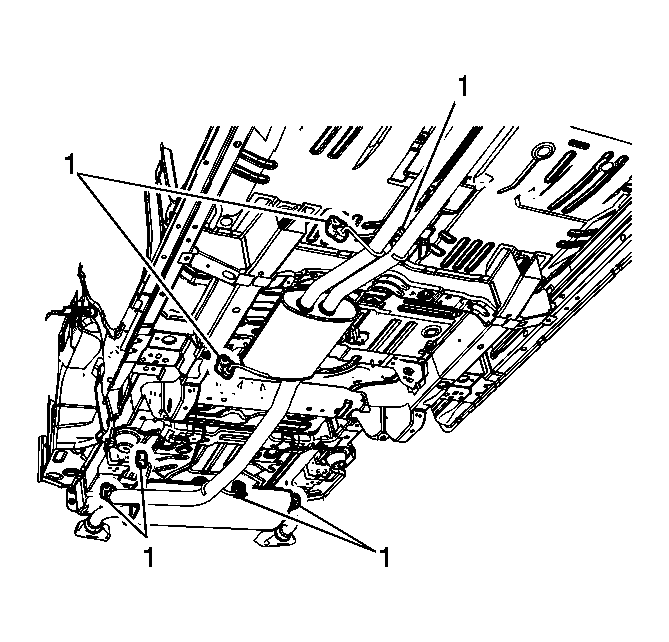

Fig 1: Muffler Insulators

Courtesy of GENERAL MOTORS CORP.

NOTE: Replace the muffler hangers any time the exhaust system is removed from the vehicle. Do not use any mineral oil based lubricants or sharp tools when installing new exhaust system hangers.

With the aid of an assistant, position the muffler assembly.
Install the muffler insulators (1) to the hangers.

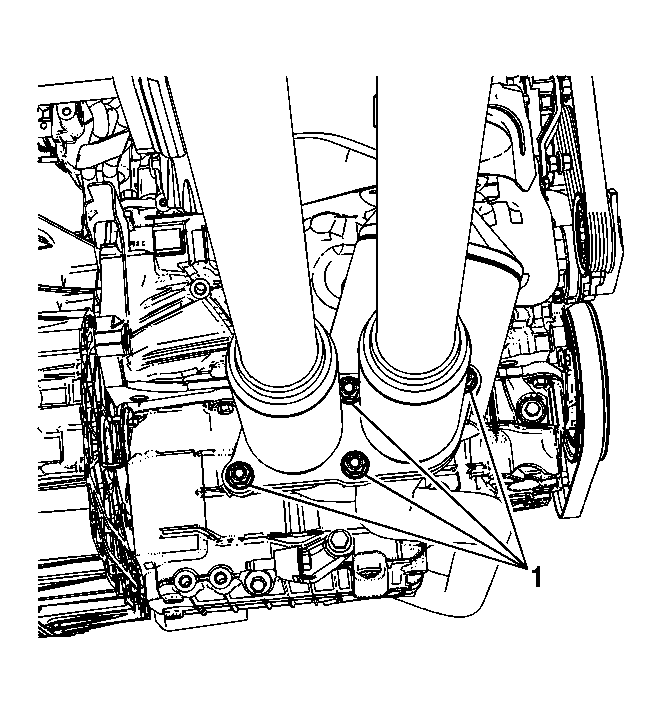

Fig 2: Catalytic Converter To Muffler Nuts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the catalytic converter to muffler nuts (1) and tighten to 25 N.m (18 lb ft).
