Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

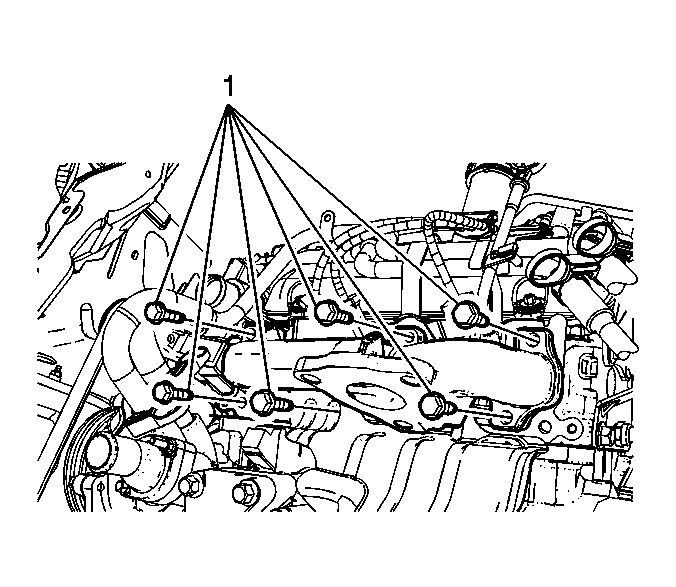

    Fig 1: Left Side Exhaust Manifold
    GM1886180Courtesy of GENERAL MOTORS CORP.
  1. Remove the left side catalytic converter. Refer to Catalytic Converter Replacement - Left Side (LZ4)  or Catalytic Converter Replacement - Left Side (LY7 )  or Catalytic Converter Replacement - Left Side (LCS) .
  2. Remove the heated oxygen sensors (HO2S). Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .
  3. Remove the left side exhaust manifold bolts (1).
  4. Remove the left side exhaust manifold and gasket.
