Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

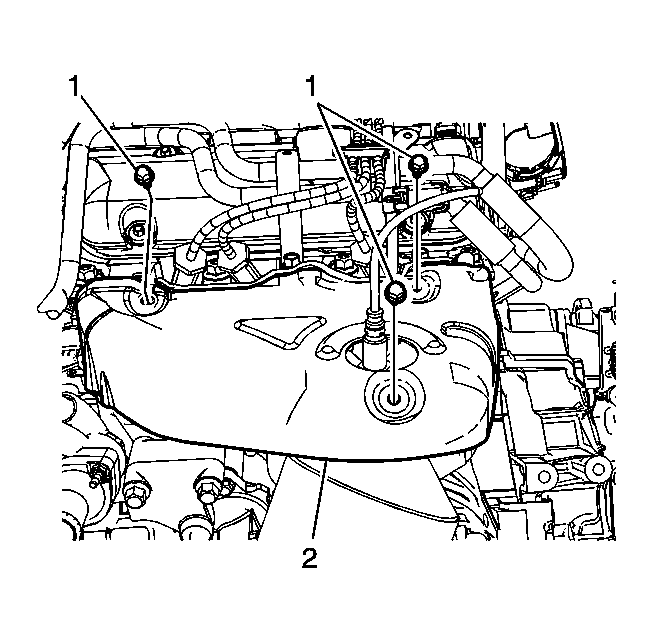

    Fig 1: Exhaust Manifold Heat Shield
    GM1889466Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the exhaust manifold heat shield (2).
  2. Install the exhaust manifold heat shield bolts (1) and tighten to 22 N.m (16 lb ft).
    3. Fig 2: Heated Oxygen Sensors Electrical Connector
    GM1883806Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine harness electrical connector (1) to the HO2S (2).
  4. Install the CPA retainer.
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
