Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Exhaust Manifold Heat Shield
    GM1631387Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust manifold heat shield (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the exhaust manifold heat shield studs (2) and tighten to 22 N.m (16 lb ft).

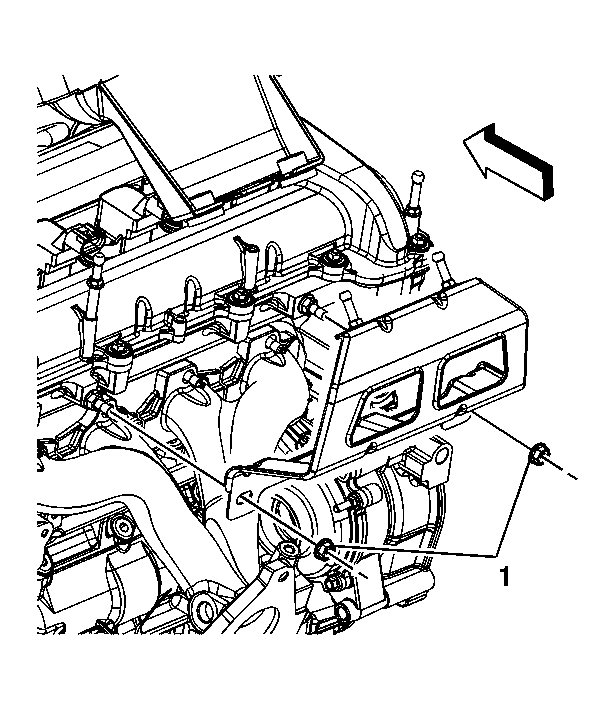

    3. Fig 2: Air Cleaner Bracket Nuts
    GM1887322Courtesy of GENERAL MOTORS CORP.
  3. On the LAT engine, install the air cleaner bracket.
  4. Install the air cleaner bracket nuts (1) and tighten to 20 N.m (15 lb ft.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
